Pickering 62-1-A-24/2 62-1-A-24/2 Reed Relay SPST-NO 24 V 62 Series Chassis 500 ohm 3 A

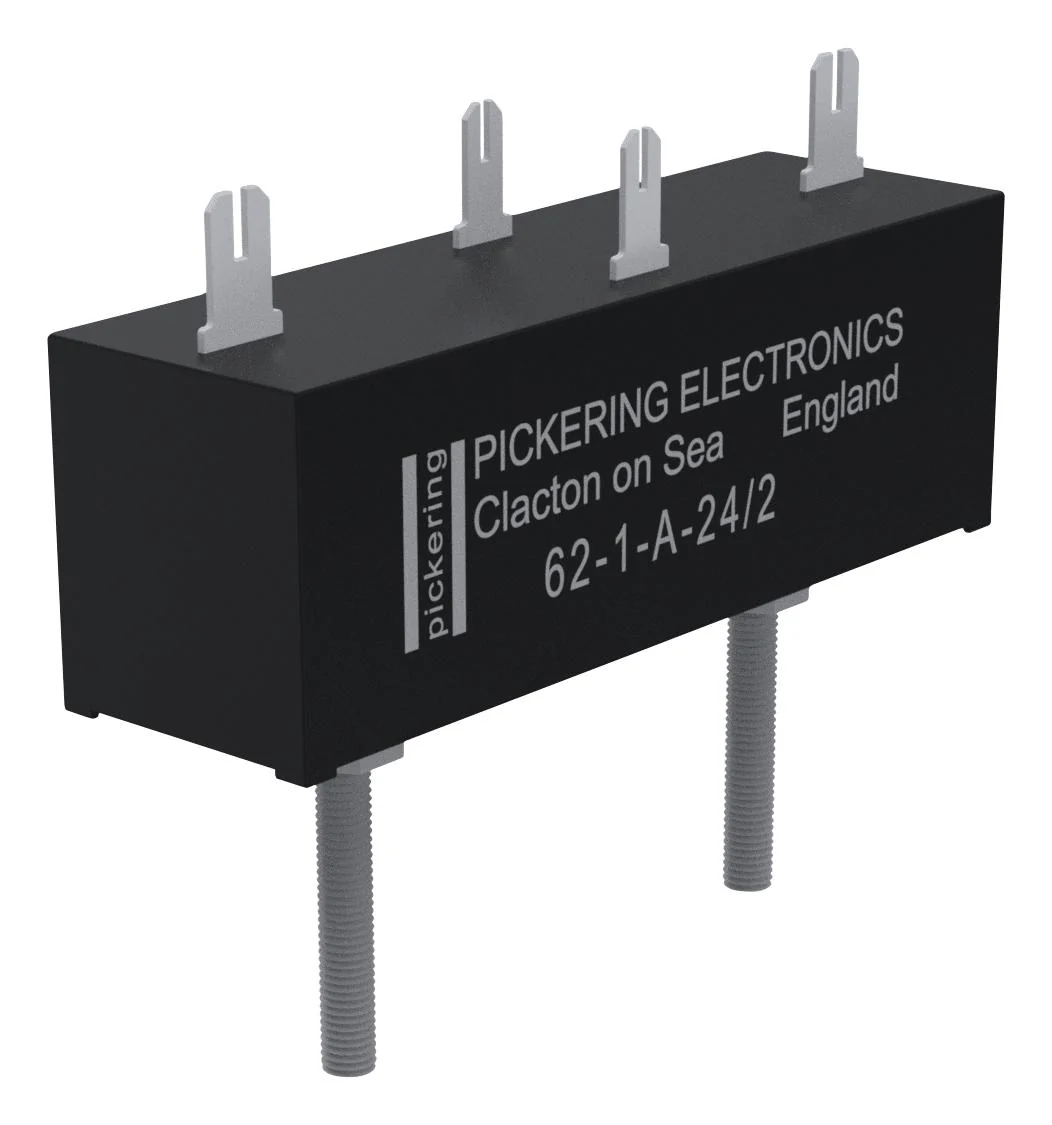

62-1-A-24/2 is 62 series high voltage dry reed relay. It has chassis mounting with push-on HV connections on the top face. This high voltage reed relay features a push-on terminals and are supplied with the appropriate connectors and insulating boots.

• Tungsten plated contacts ensure a long and reliable life
• Coil voltage is 24V, coil resistance is 500 ohm
• Maximum contact resistance is 0.12 ohm
• Power rating is 50W, maximum switch current is 3A
• Maximum carry current is 3.5A
• Maximum switching voltage is 7500VDC, maximum stand-off voltage is 10000VDC
• Life expectancy is 10â�¸
• Operating temperature range is -20°C to +85°C

Footnotes High voltages, and stray capacitance can generate very high current pulses, which can damage the contact plating causing welding of the reed switch.

Other details

Brand	PICKERING
Part Number	62-1-A-24/2
Quantity	Each
Technical Data Sheet EN
