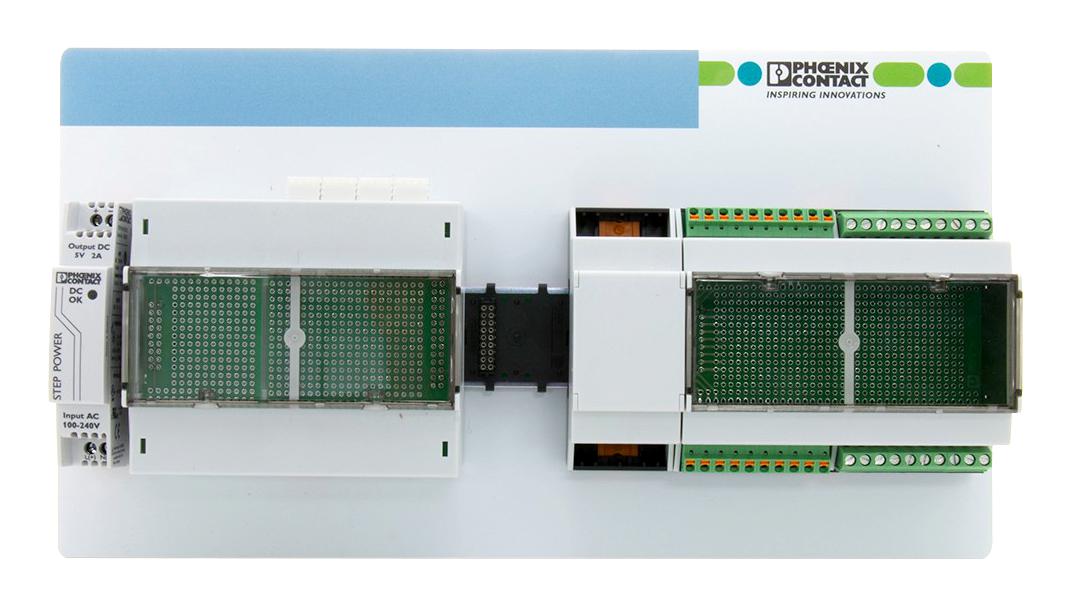

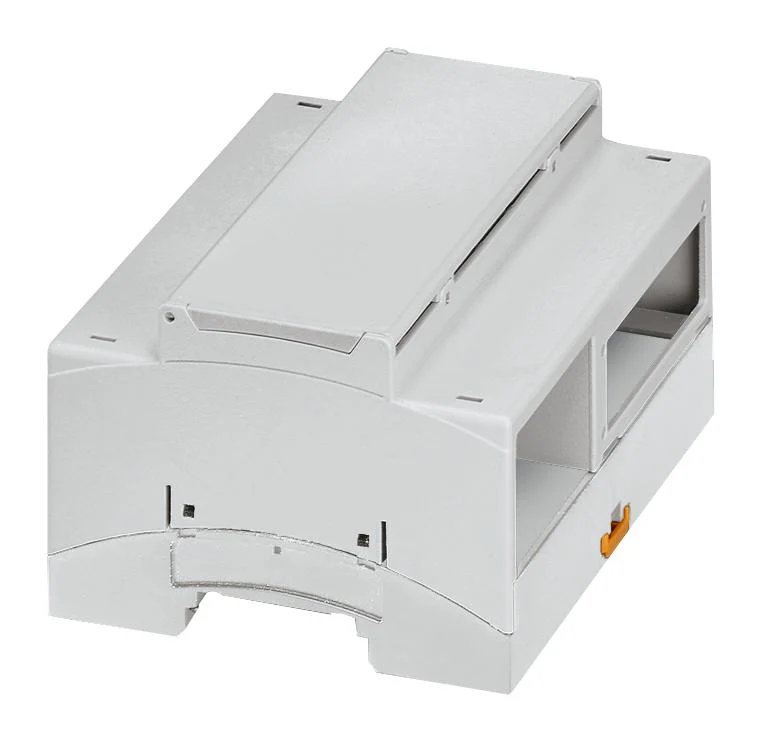

Phoenix Contact RPI-BC 1076 DEV-KIT KMGY Electronic Housing For Raspberry Pi-BC Lower Part Upper Cover & PCB Holder Light Gray
Phoenix Contact RPI-BC 1076 DEV-KIT KMGY Electronic Housing For Raspberry Pi-BC Lower Part Upper Cover & PCB Holder Light Gray
- Alignable on DIN rail
- 107.6 mm overall width
- Dimensions in accordance with DIN 43880
- Suitable for Raspberry Pi A+, B+, B2 & B3
- Can be mounted on the wall or on a DIN rail
- Compatible with HBUS and BC development kits
- Time-saving installation with tool-free mounting and assembly of the housing for DIN rails and walls

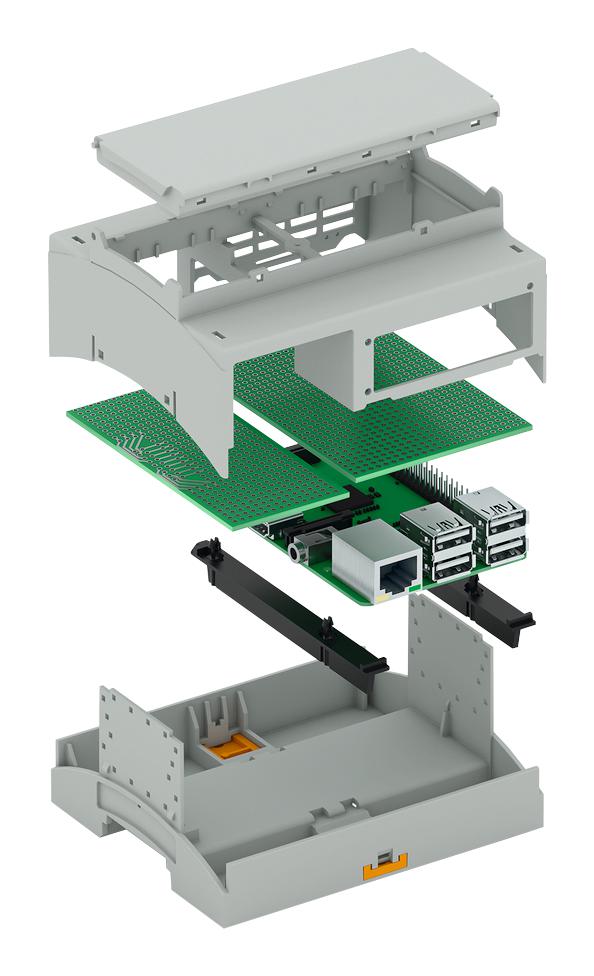

- Expandable internally with perfboards or PCBs and externally with additional BC range enclosures
- Easy access to all Raspberry Pi ports and SD card without removing the enclosure from the DIN rail
- Pluggable connectivity to the Raspberry Pi GPIO using proven PTSM technology

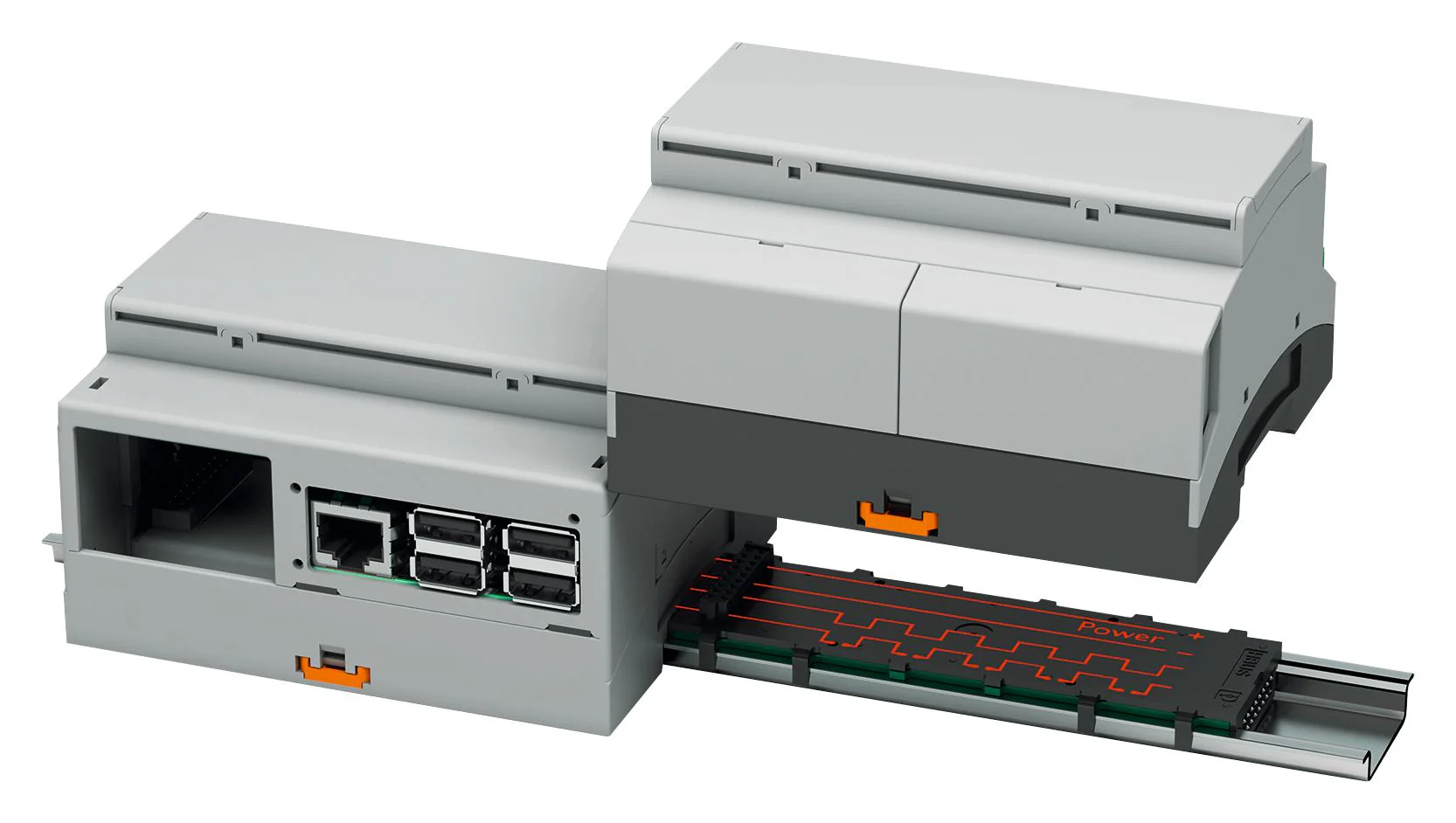

- Easy connectivity via the HBUS to add extra Raspberry Pi or I/O modules via the DIN rail
Other details
| Brand | PHOENIX CONTACT |
| Part Number | RPI-BC 107,6 DEV-KIT KMGY |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $30.10
-70%$30.10
$9.03More Images
Phoenix Contact RPI-BC 1076 DEV-KIT KMGY Electronic Housing For Raspberry Pi-BC Lower Part Upper Cover & PCB Holder Light Gray
- Alignable on DIN rail
- 107.6 mm overall width
- Dimensions in accordance with DIN 43880
- Suitable for Raspberry Pi A+, B+, B2 & B3
- Can be mounted on the wall or on a DIN rail
- Compatible with HBUS and BC development kits
- Time-saving installation with tool-free mounting and assembly of the housing for DIN rails and walls
- Expandable internally with perfboards or PCBs and externally with additional BC range enclosures
- Easy access to all Raspberry Pi ports and SD card without removing the enclosure from the DIN rail
- Pluggable connectivity to the Raspberry Pi GPIO using proven PTSM technology
- Easy connectivity via the HBUS to add extra Raspberry Pi or I/O modules via the DIN rail
Other details
| Brand | PHOENIX CONTACT |
| Part Number | RPI-BC 107,6 DEV-KIT KMGY |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
