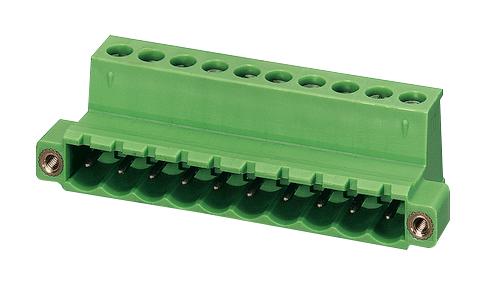

Phoenix Contact IC 25/10-STGF-508 Pluggable Terminal Block 5.08 mm 10 Ways 30AWG to 12AWG 2.5 mm² Screw 12 A

The IC 2,5/10-STGF-5,08 from Phoenix Contact is a 5.08mm pitch, CLASSIC COMBICON PCB connector with 10 position. The plug components with male contact and threaded flange for screw connection. Suitable for wire gauge ranging from 24AWG to 12AWG.

• Nominal current is 12A
• Rated voltage (III/3) is 250V, (III/2) is 320V, (II/2) is 630V
• Green colour polyamide insulating material
• Flammability rating according to UL 94 V0
• Maximum flexibility design
• Contact surface is gold
• CSA, UL, VDE, cULus approvals

Applications

Industrial

Other details

Brand	PHOENIX CONTACT
Part Number	IC 2,5/10-STGF-5,08
Quantity	Each
Technical Data Sheet EN
