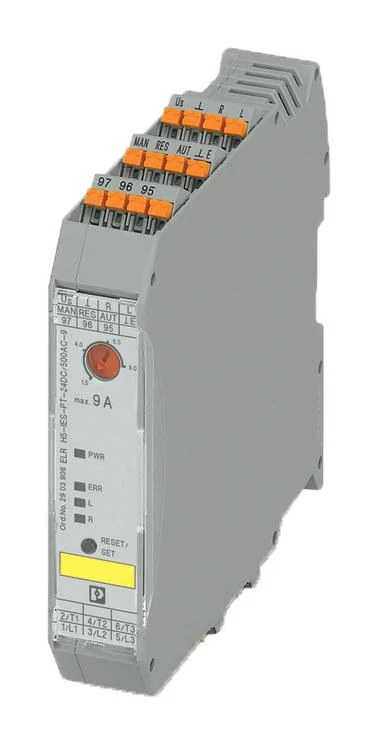

Phoenix Contact ELR H5-IES-PT-24DC/500AC-9 ELR H5-IES-PT-24DC/500AC-9 Motor Starter Hybrid Series Three Phase 9 A 7 W 24 Vdc 500 Vac

The ELR H5-IES-PT-24DC/500AC-9 is a Hybrid Motor Starter for reversing 3~ AC motors up to 550VAC, with 24VDC input, 9A output current, emergency stop function, adjustable overload shutdown, higher transient voltage strength and push-in connection. It features reverse polarity protection parallel polarity protection diode and surge protection. The CONTACTRON hybrid motor starter technology combines wear-free solid-state technology and robust relay technology. The microprocessor-controlled combination enables gentle switching, considerably reducing load on the relay contacts. This means that the service life of hybrid motor starter is up to ten times longer than that of purely mechanical switching devices.

• IP20 Protection rating
• Class 10A Trigger characteristic in according with IEC 60947 standard
• Acknowledge output
• <30ms Typical turn-off time
• <30ms Typical turn-off time
• 1 PDT Contact type
• Push-in connection method

Applications

Industrial, Motor Drive & Control, Automation & Process Control

Other details

Brand	PHOENIX CONTACT
Part Number	ELR H5-IES-PT-24DC/500AC-9
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD Multiple Formats EN
