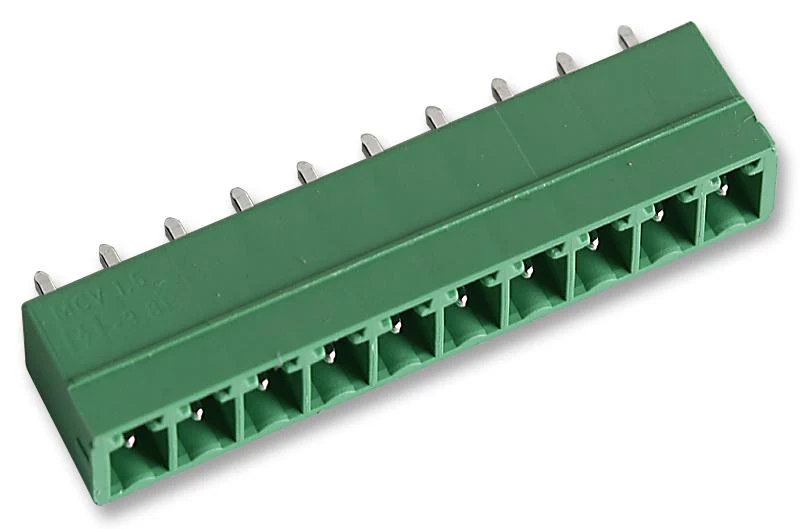

PHOENIX CONTACT 1803507 Terminal Block, Header, 3.81 mm, 10 Ways, 8 A, 160 V, Through Hole Vertical MCV 1,5/10-G-3,81, GTIN UPC EAN: 4017918045814
PHOENIX CONTACT 1803507 Terminal Block, Header, 3.81 mm, 10 Ways, 8 A, 160 V, Through Hole Vertical MCV 1,5/10-G-3,81, GTIN UPC EAN: 4017918045814
The 1803507 is a 10-position green base strip PCB Header with tin-plated solder contacts and a PBT insulator. This MCV 1,5/10-G-3,81 PCB header has fully developed contact geometries and surfaces. It has secure connection. Individual position coding by inserting coding profiles.
- Low-profile pin strips with compact pitches
- Plug-in direction parallel and vertical to the PCB
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Gender: Header |
| Pitch Spacing: 3.81mm |
| No. of Positions: 10Ways |
| Rated Current: 8A |
| Rated Voltage: 160V |
| Block Orientation: Through Hole Vertical |
| Product Range: MCV |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1803507 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
