PDMOVIE 3D LOOK 3D Image Processing System
PDMOVIE 3D Image Processing System Overview
3D Image Processing System
The
3D LOOK from

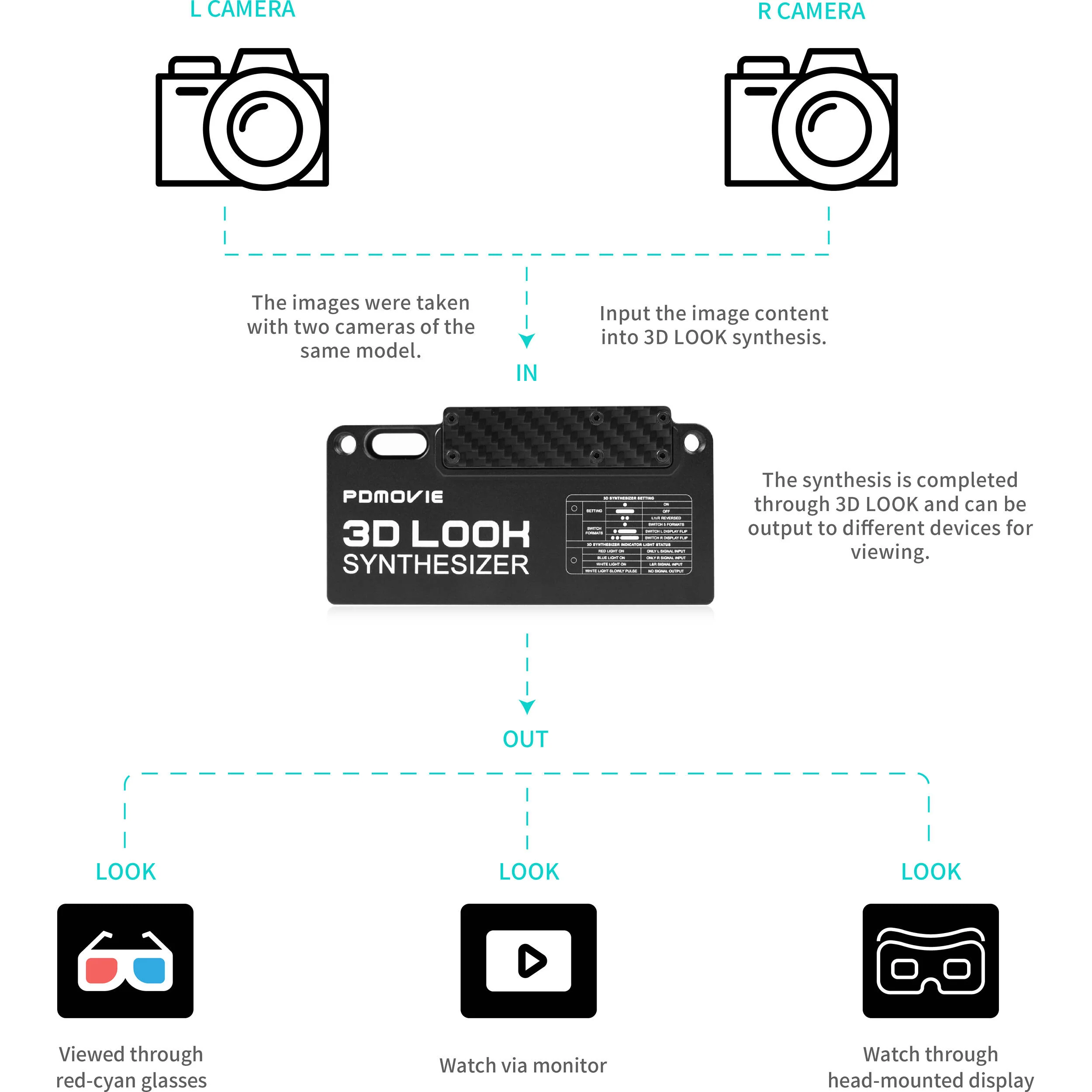

PDMOVIE is a powerful 3D stereoscopic image processing system used to capture, synthesize, and output video signals from two cameras. It supports a variety of video formats tailored for 3D filming up to 3840 x 1080p30, and it can be used with both vertical stereoscopic and side-by-side 3D filming rigs.
Five Stereoscopic Formats, Three Real-Time
Three of the five 3D LOOK video signal formats are compatible with real-time viewing. Choose between:
- Anaglyph 1920 x 1080p60
- Vertical half side-by-side 1080p60
- Full side-by-side 3840 x 1080p30 (letterboxed)
Compatibility
- The 3D LOOK system is compatible with PDMOVIE's 3D AIR, other vertical 3D rigs, and side-by-side 3D capture systems.
- View your stereo output using a monitor, headset, or red/cyan eyeglasses.
Ultrathin Design

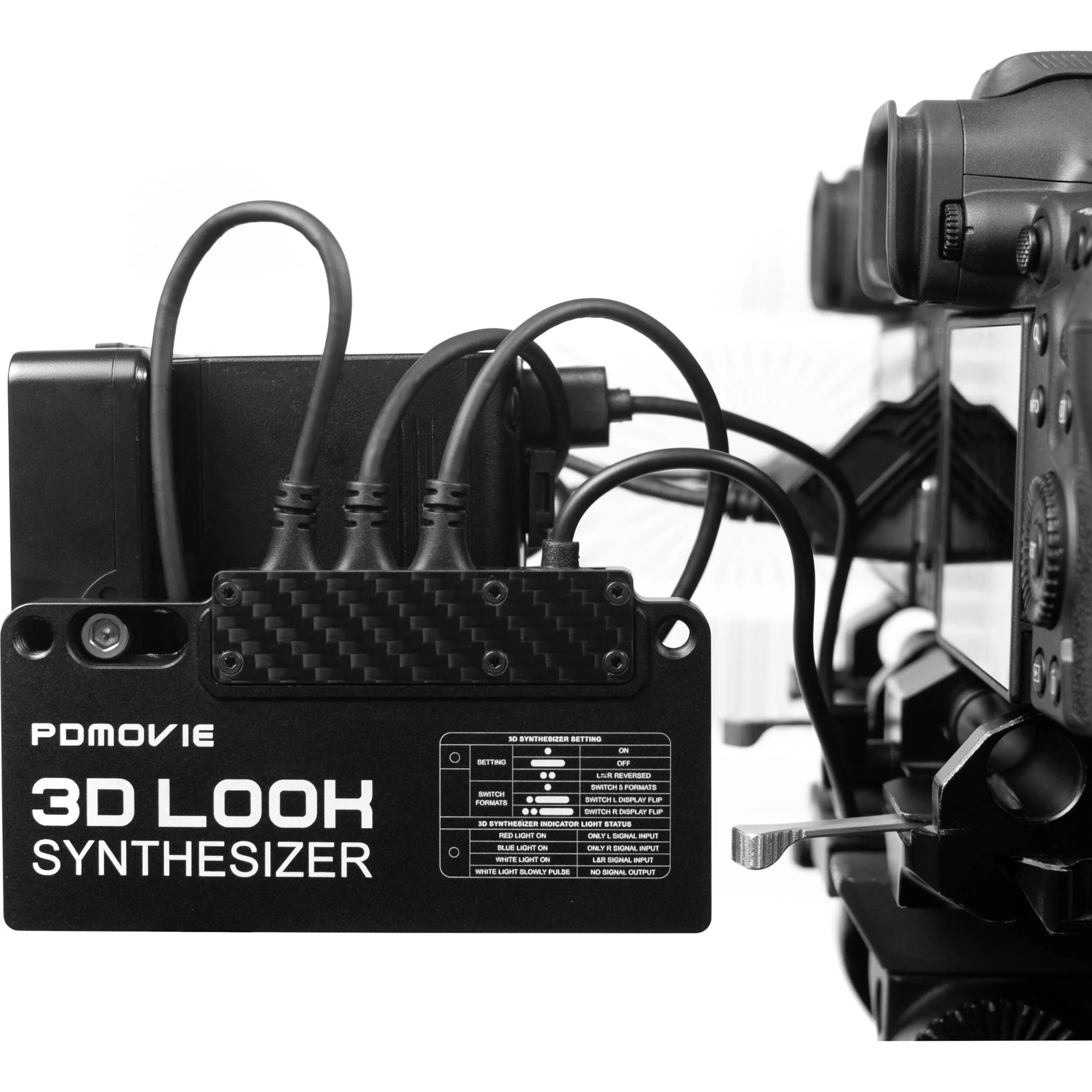

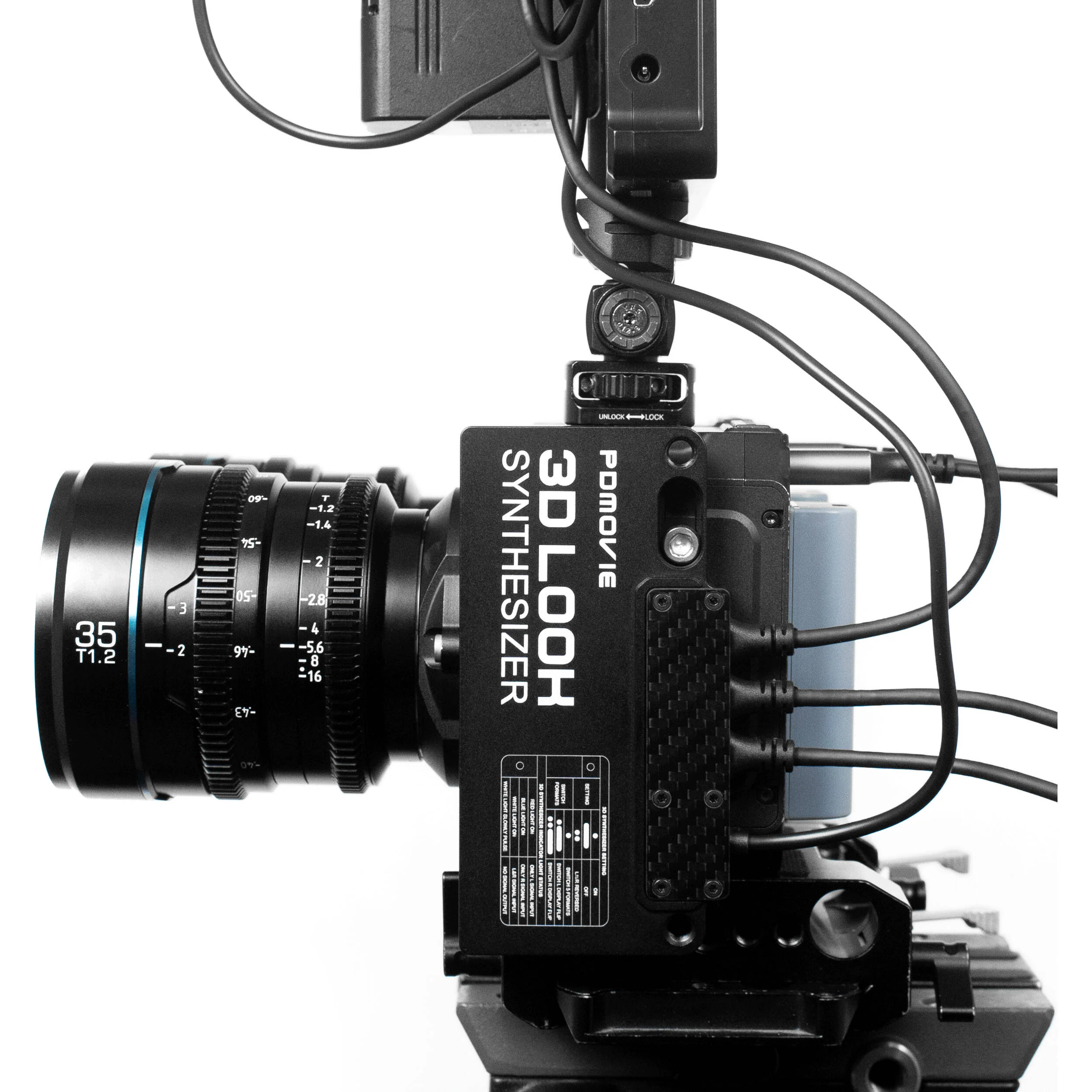

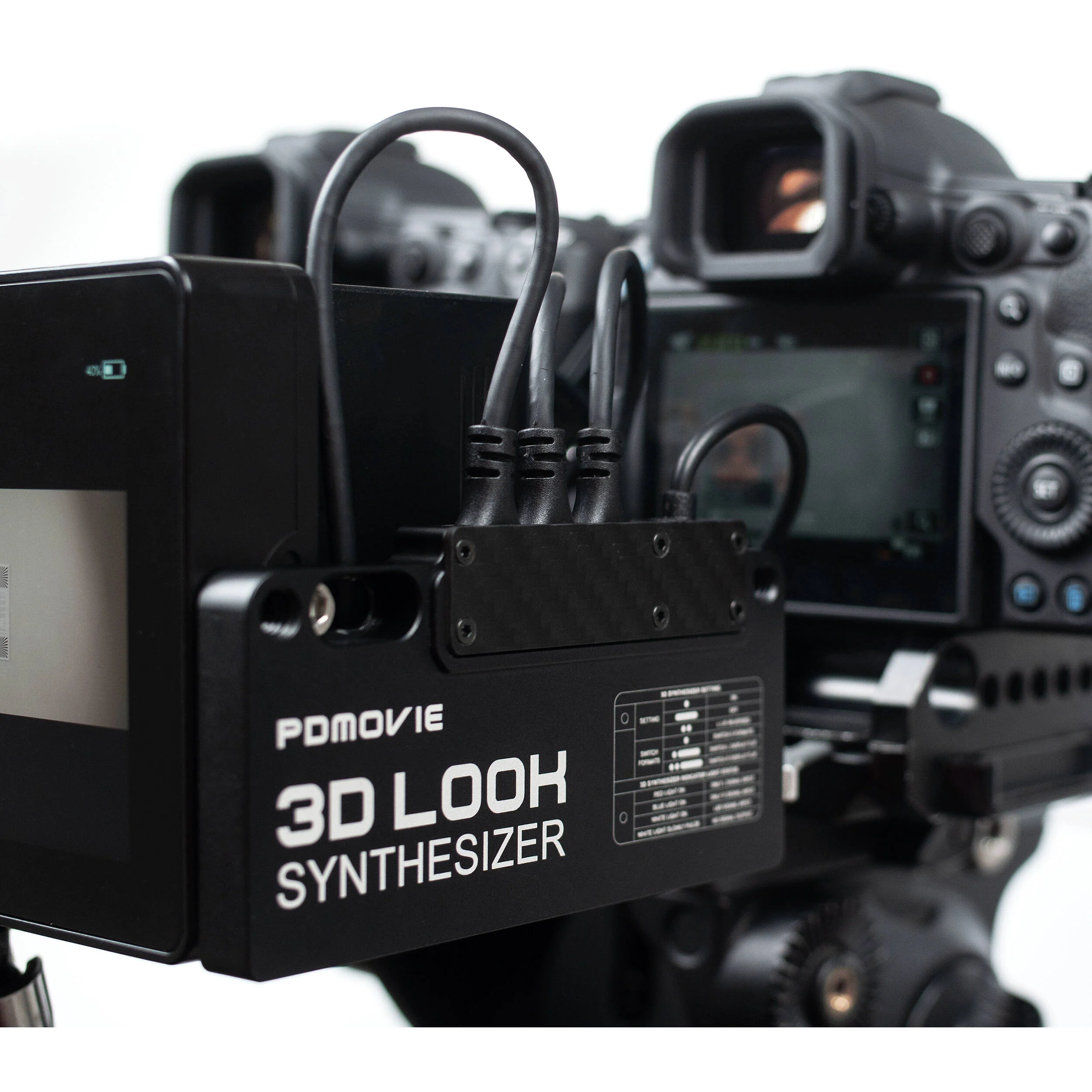

- This ultrathin, super lightweight unit will fit easily onto your camera rig.
- Mount it using the single screw slot or the two 1/4"-20 threaded holes.
Items Included
- PDMOVIE 3D LOOK 3D Image Processing System
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
PDMOVIE 3D Image Processing System Specs
Inputs/Outputs
| USB I/O |
1 x USB-C Female Input
|
| Video I/O |

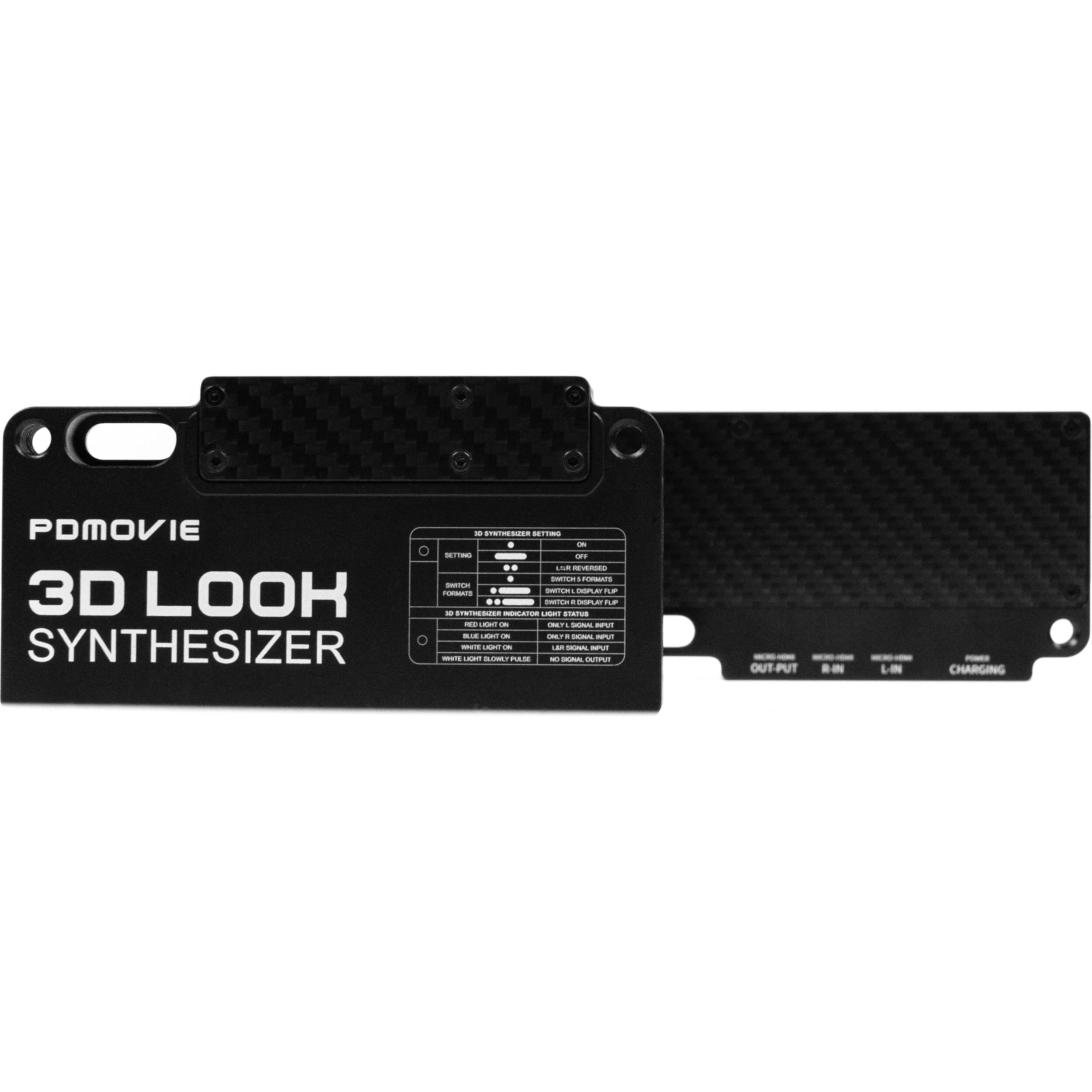

1x Micro-HDMI Input ( Left )
1x Micro-HDMI Input ( Right ) 1x Micro-HDMI Output |
| Video Resolution |
Anaglyph 1920 x 1080 60p
Full Side-by-Side 1920 x 1080 60p Full Side-by-Side (Crop) 1920 x 1080 60p Full Side-by-Side 3840 x 1080 30p Half Side-by-Side 1920 x 1080 60p |
Power
| Power Source |
USB
|
| DC Input Power |
7 to 12 VDC
|
Physical
| Mounting |
1x Passthrough Slot
2x 1/4"-20 Threaded Holes |
| Color |
Black
|
| Dimensions |

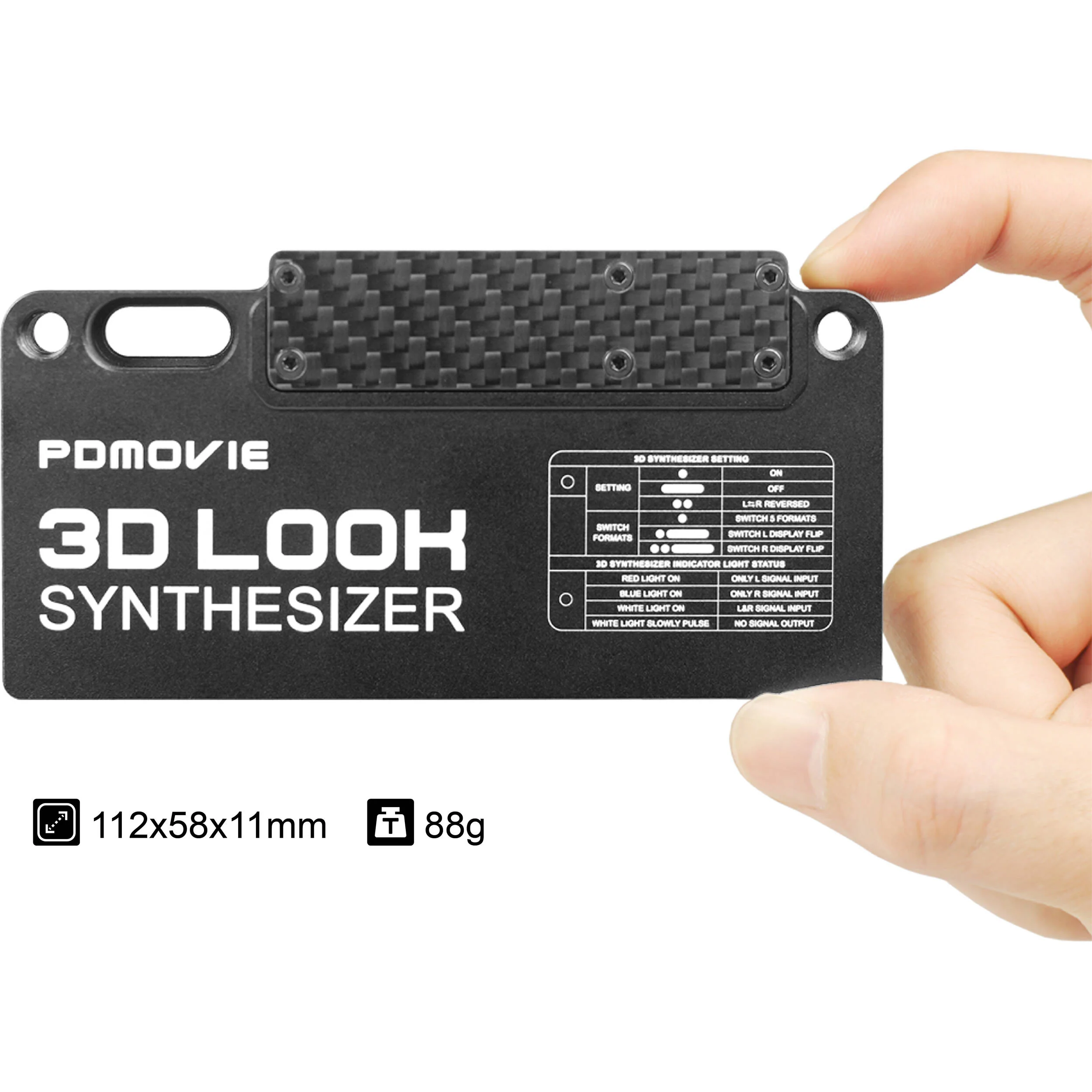

4.4 x 2.3 x 0.4" / 112 x 58 x 11 mm
|
| Weight |
3.1 oz / 88 g
|
