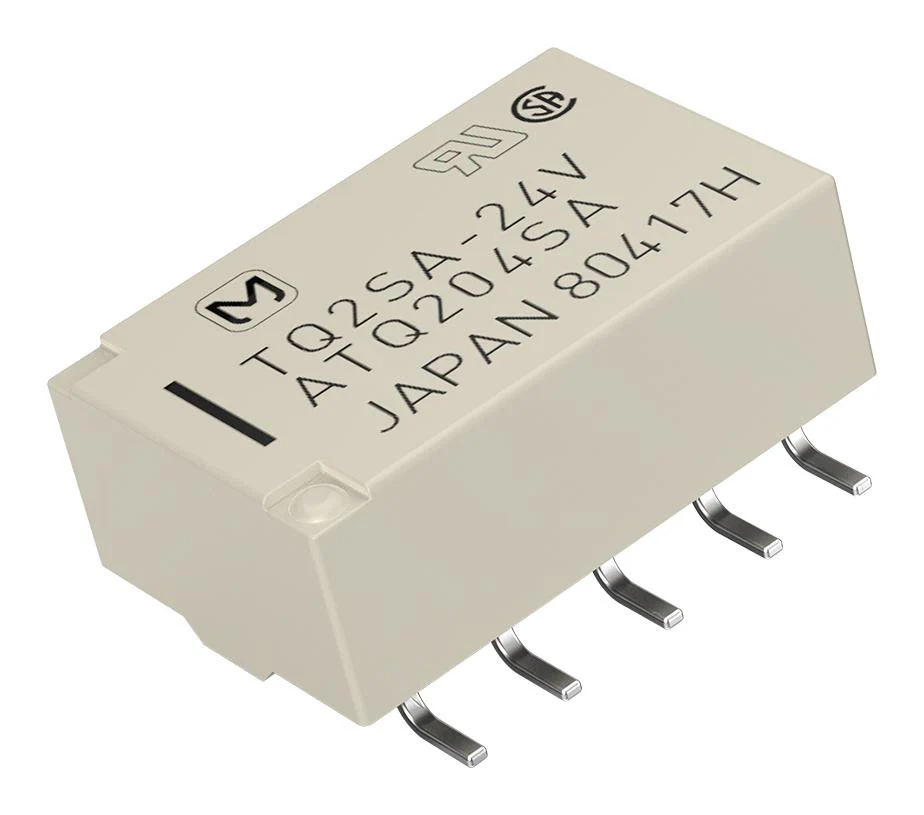

PANASONIC TQ2SA-24V-Z Signal Relay, 24 VDC, DPDT, 2 A, TQ, Surface Mount, Non Latching
The TQ-SMD series 2-pole 5mm surface-mount Signal Relay complies with JIS C0806. By using the highly efficient polar magnetic circuit "seesaw balance mechanism", a nominal operating power of 140mW (minimum operating power of 79mW) has been achieved (4-form-C single side stable type is 280mW). The high-efficiency magnetic circuits ensure low magnetic flux leakage. Because characteristics are little changed by proximity mounting, high-density mounting is possible.
- Suitable for SMD automatic insertion (SA type)
- The use of gold-clad twin crossbar contacts ensures high contact reliability
- DIL terminal array enables use of IC sockets
- Low thermal electromotive force
- Latching types also available
- Self-clinching terminal also available
- MBB contact types available
Applications
Industrial, Signal Processing, Communications & Networking, Test & Measurement
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Coil Voltage: 24VDC |
| Contact Configuration: DPDT |
| Contact Current: 2A |
| Product Range: TQ |
| Relay Mounting: Surface Mount |
| Coil Type: Non Latching |
| Relay Terminals: Solder |
| Contact Voltage VAC: - |
| Contact Voltage VDC: 30V |
| Contact Material: Silver |
| Coil Resistance: 2.88kohm |
Other details
| Brand | PANASONIC |
| Part Number | TQ2SA-24V-Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
