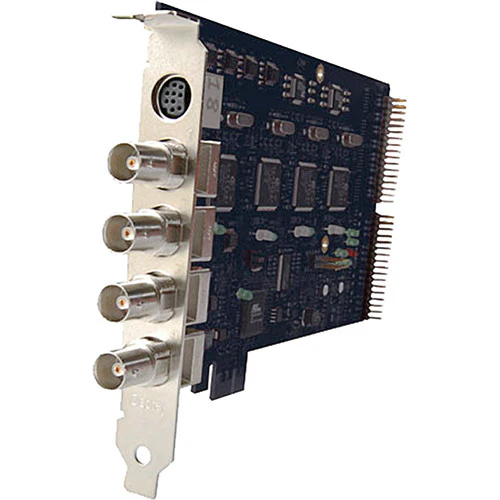

Osprey 460e Video Capture Card
HomeStore

Osprey 460e Video Capture Card

Osprey 460e Video Capture Card

  • 4-Ch Video + Unbalanced Stereo Audio
  • 4 On-Board Composite BNC Connectors
  • 4 Stereo Audio Inputs via 8-RCA Breakout
  • Optional Component/S-Video/XLR Supported
  • Two or More Deployable in Single Chassis

The Osprey 460e is a 4-channel analog Composite BNC capture card ideal for high density capture on modern PC platforms. The 4 inputs are on-board, and four unbalanced stereo audio inputs are also available via an 8-RCA breakout cable. Furthermore, an optional AV expansion add-on can be incorporated to integrate Component, S-Video, and XLR balanced stereo audio via additional breakout cables.

Two or more cards can be deployed in a single PC chassis for maximum versatility.

Driver Support
  • Microsoft DirectShow drivers are available for compatibility with most software
  • Linux
  • Windows SDK lets you create custom applications
Driver Based Pre-Processing (Windows DirectShow Only)
  • Closed-caption extraction/rendering
  • Logo/bitmap overlay
  • Scaling, cropping, de-interlacing and inverse telecine
Osprey SimulStream Ready
SimulStream is an optional Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays, facilitating simultaneous delivery to multiple applications.
AV Expansion Option
The Osprey 460e AV option provides additional video inputs and 4 stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.
UPC: 850189006054
In the Box
Osprey 460e Video Capture Card
  • 4 x BNC to RCA Adapters
  • Audio Breakout Cable
  • Limited 1-Year Warranty

    • Osprey Osprey 460e specs

    Format 1 x PCIe
    Slots: x1, x4, x8, or x16
    PCIe 2.0
    Breakout Cable Connector 15-pin connector (breakout cable included)
    Video Input On-Board:
    4 x Composite on BNC (BNC to RCA adapters included)

    *Component and S-Video inputs supported via optional Osprey AV option board
    Video Modes NTSC/PAL
    720 x 480 29.97, 30/i (NTSC)
    852 x 480, 29.97, 30/i (NTSC Wide Screen)
    720 x 576 25/i (PAL)
    Wide Screen Signaling (WSS)
    Audio Input Via Breakout Cable:
    4 x Unbalanced stereo via 8 RCA connectors

    *4 unbalanced stereo inputs via 8 XLR connectors supported via optional Osprey AV option board
    Power Consumption 11 W
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -40 to 167°F (-40 to 75°C)
    Operating Relative Humidity 5 to 80% (non-condensing)
    Storage Relative Humidity 95% RH (non-condensing); gradient 30% per hour
    Dimensions L x H: 6.6 x 4.4" (16.8 x 11.1 cm)
    Full height/half length
    Weight 0.5 lb (227 g)
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 9.0 x 5.2 x 2.0"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $2,395.02
    Osprey 460e Video Capture Card—
    $2,395.02
