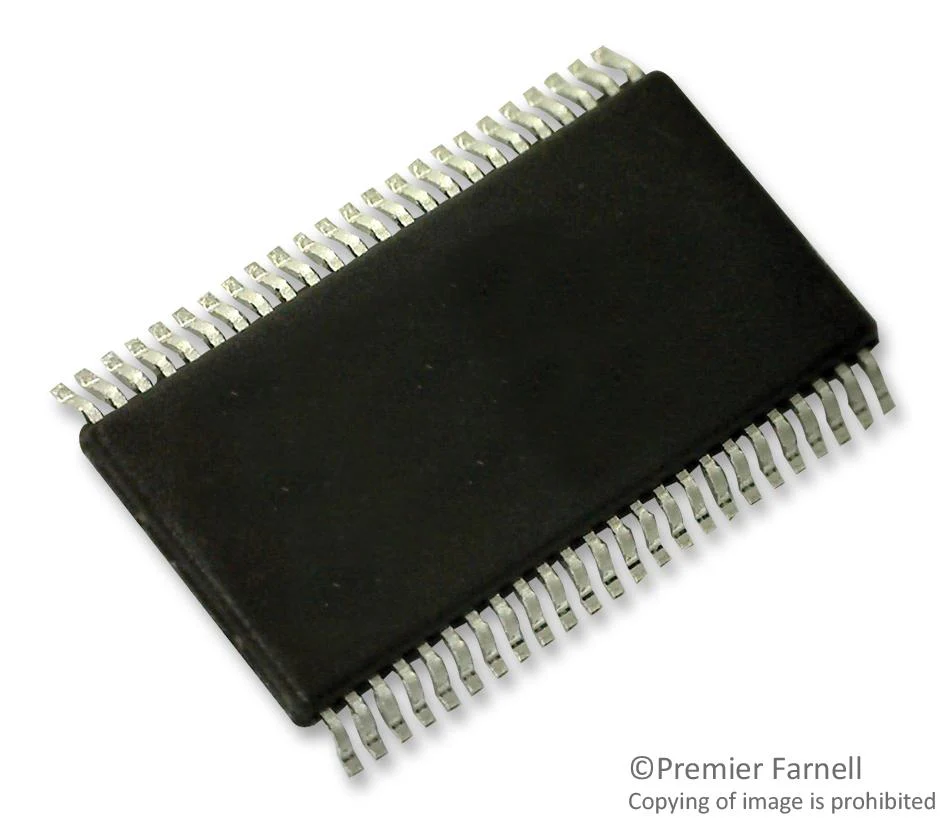

ON Semiconductor FIN1108MTDX Lvds Driver Repeater 135 ps 80 mA -40 °C 85 3 V
Product details
| Device Type | LVDS Repeater |
| Peak-to-Peak Jitter Max | 135ps |
| Supply Current Max | 80mA |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Supply Voltage Min | 3V |
| Supply Voltage Max | 3.6V |
| Driver Case Style | TSSOP |
| No. of Pins | 48Pins |
| Signaling Rate | 800Mbps |
| Signal Input Type | HSTL, LVPECL, SSTL-2 |
| Output Level Type | LVDS |
| ESD HBM | 7.5kV |
| Product Range | - |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 2 - 1 year |
Other details
| Brand | ON SEMICONDUCTOR |
| Part Number | FIN1108MTDX |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
