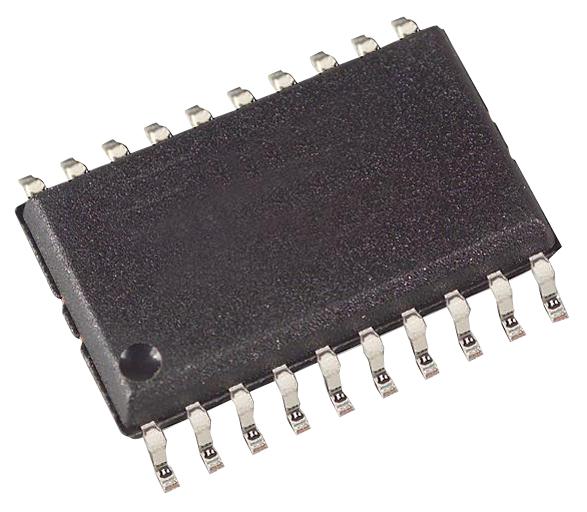

NXP MC14489BDWE Led Driver 15 Outputs 4.5V to 5.5V in 4MHz Switch 5.4V/17.5mA out SOG-20
Product details
| Device Topology | - |
| Input Voltage Min | 4.5V |
| Input Voltage Max | 5.5V |
| Output Voltage Max | 5.4V |
| Output Current Max | 17.5mA |
| Switching Frequency | 4MHz |
| No. of Outputs | 15Outputs |
| IC Mounting | Surface Mount |
| Driver Case Style | SOIC |
| No. of Pins | 20Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 130°C |
| Product Range | - |
| Automotive Qualification Standard | - |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MC14489BDWE |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
