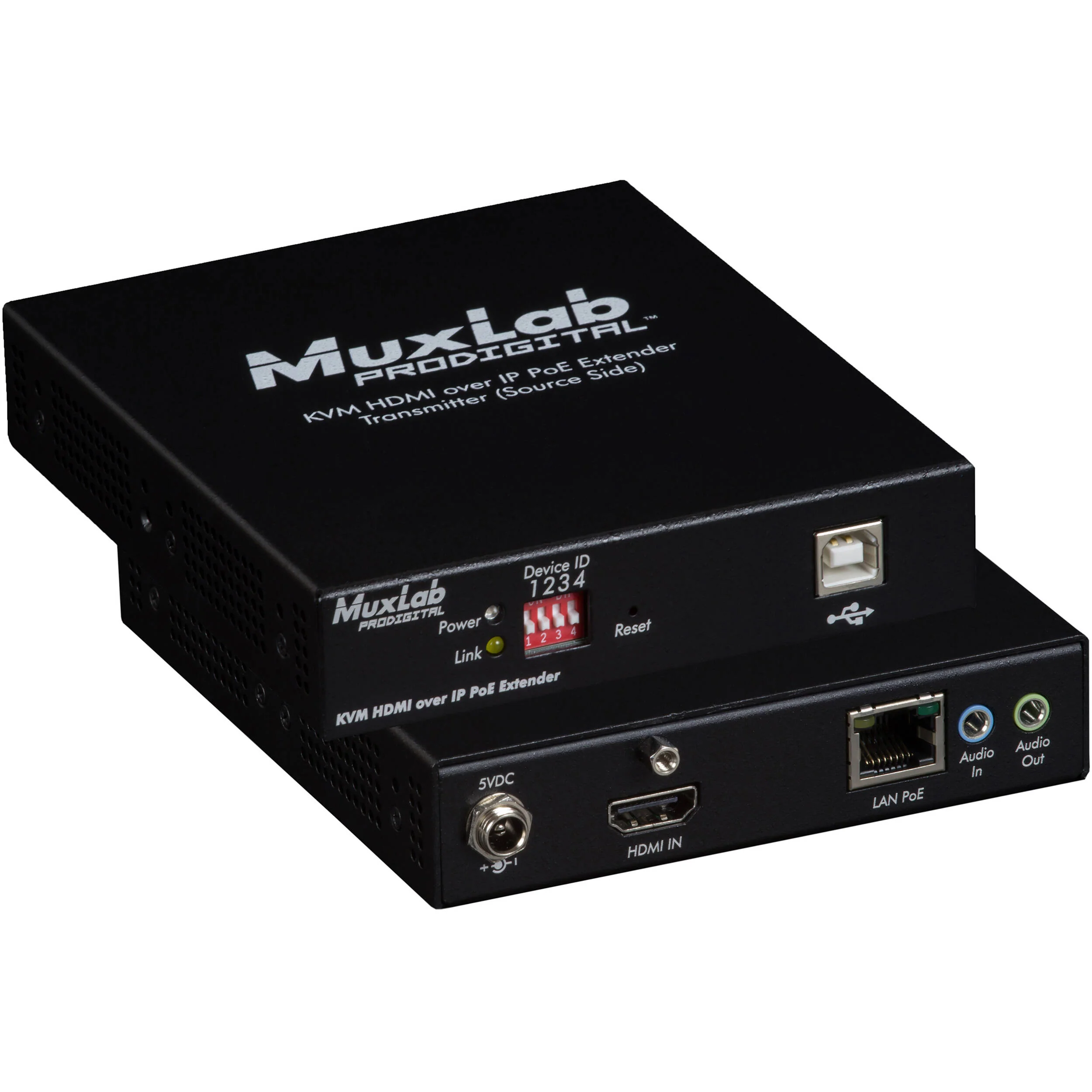

MuxLab UHD 4K KVM HDMI-over-IP PoE Extender Transmitter
MuxLab 500772-TX Overview
Transmit 4K60 video with companion KVM commands up to 328' away with the UHD 4K KVM HDMI-over-IP PoE Extender Transmitter from MuxLab. The transmitter can transmit video directly to the separately available 500772-RX receiver on a local LAN, and it is powered via PoE on a supported network or by an optional power supply. The transmitter will fit right into your IT server room, media center, meeting room, or classroom environment where video distribution and central keyboard control is used.
The transmitter supports up to UHD 4K60 4:2:0 HDMI input, and it supports HDR video. The USB Type-B input allows you to transmit keyboard and mouse control over the same Ethernet cable to the receiver. It supports embedded HDMI audio and also has an independent 3.5mm audio input to embed analog audio, and it features a 3.5mm audio output for monitoring. It also supports point-to-multipoint and multipoint-to-multipoint configurations when using an Ethernet switch. It can deliver a 4K signal up to 328' over a Cat 5e/6 (or greater) cable.
MuxLab 500772-TX Specs
| Inputs/Outputs | Transmitter: 1 x HDMI Type-A (Video) FemaleInput 1 x USB-B (Management) FemaleInput 1 x RJ45 (Ethernet) FemaleOutput 1 x 1/8" / 3.5 mm (Audio) FemaleInput 1 x 1/8" / 3.5 mm (Audio) FemaleOutput |
| Supported Resolutions | 3840 x 2160 @ 60 Hz 3840 x 2160 @ 30 Hz |
| Maximum Transmission Distance | 328.1' / 100 m |
| Transmission Method | CAT5e/CAT6/CAT7 Cable |
| HDCP Support | Yes, Version 2.2 |
| Video Channel | 1-Channel |
| Audio Channels Supported | 2-Channel Stereo |
| Bandwidth | 300 MHz |
| Power Consumption | 6 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Humidity | 95% |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Dimensions | 5.1 x 4.4 x 1.0" / 129.0 x 112.0 x 25.0 mm |
| Weight | 1.5 lb / 680.0 g (Transmitter) |
| Package Weight | 0.965 lb |
| Box Dimensions (LxWxH) | 8 x 6 x 2.2" |
MuxLab 500772-TX Reviews
