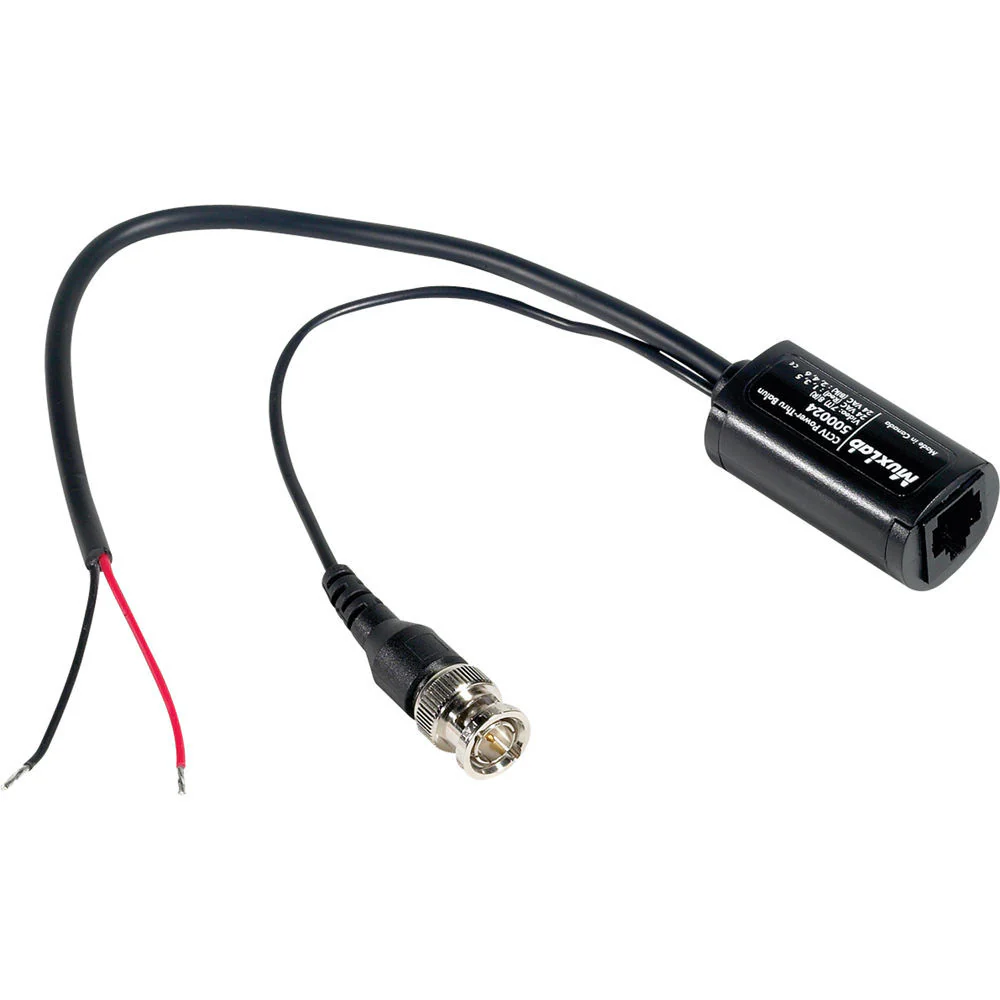

MuxLab 500024 CCTV Power-Thru Balun
HomeStore

MuxLab 500024 CCTV Power-Thru Balun

MuxLab 500024 CCTV Power-Thru Balun

  • Modular RJ-45 Connector
  • Transmits Video/Remote Power via Cat5
  • Color Signals up to 1200' via Cat3
  • Color Signals up to 2200' via Cat5
  • B&W Signals up to 1500' via Cat3
  • B & W Signals up to 2500' via Cat5
  • Switch to Set Port as Power-thru
  • Remote power up to 500' via 3 UTP
  • ABS Fire Retardant Plastic Enclosure
  • NTSC / PAL / SECAM

The MuxLab 500024 CCTV Power-Thru Balun with modular RJ-45 connector transmits video and remote power via one 4-pair Cat5 UTP (Unshielded Twisted Pair) cable, eliminating the need for multiple cable installations .



When used in conjunction with MuxLab's passive CCTV hub (500130), the modular balun transmits standard composite video and supports transmission of color signals up to 1200' (365m) via Cat3; it can be extended to 2200' (670m) via Cat5.   For b&w signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5.



Made of ABS fire retardant plastic, the modular balun features port configuration switch to set port as the Power-thru balun that transmits remote power up to 500' (170m) via 3 twisted pair cables at 24VAC/5VA.



Providing a hassle-free cabling solution, the Power-Thru Balun connects to CCTV security / surveillance equipment that includes cameras, monitors, switchers, sequencers, multiplexers, DVRs, and other CCTV equipment. The balun can also be used with other composite baseband video equipments.

Modular RJ-45 connector
Transmits video and remote power via one 4-pair Cat5 UTP cable
Transmits color signals up to 1200' via Cat3; distance can be extended up to 2200' via Cat5
Transmits b&w signals up to 1500' via Cat3; distance can be extended up to 2500' via Cat5
Transmits remote power up to 500' via 3 twisted pair cables at 24VAC/5VA
Made of ABS fire retardant plastic
Supports baseband video; NTSC, PAL, and SECAM
UPC: 627699000243
Environment Baseband video; NTSC, PAL, SECAM
Devices Close-circuit TV (CCTV) cameras, monitors, switchers, sequencers, multiplexers, digital video recorders (DVRs) and other CCTV equipment
Transmission Transparent to the user
Video
Bandwidth DC to 8 MHz
Impedance Input: 75 ohms (BNC); Output: 100 ohms (RJ45)
Maximum Input 1.1Vp-p
Insertion Loss Less than 2 dB per pair over the frequency range from DC to 8 MHz
Return Loss Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection Greater than 40 dB @ 8 MHz
Maximum Distance Color: Cat 3 - 1200' (365m); Cat 5 - 2200' (670m)

Shorter distances may be achieved when used with DVRs, typical 1000' (305m) to 1500' (457m)



B/W: Cat 3 - 1500' (457m); Cat 5 - 2500' (762m)
Remote Power
Wiring Remote low voltage power supported via two (3) twisted pairs. A Class II power supply is recommended
Maximum Distance (at 24VAC via 3 twisted pairs)

5 VA: 518' (170m)
10 VA: 259' (85m)
20 VA: 130' (43m)
30 VA: 86' (28m)

Based on 10% voltage drop at camera. Longer distances may be achieved @ 28 VAC.
Maximum Input Voltage 50 Volts (AC RMS/DC)
Maximum Current 4.5A (AC RMS/DC)
Physical
Cable Requirements UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz

BNC: Impedance: 75 ohms at 1 MHz (RG59/U mini coax). Max. 25' (7.6m) of coax allowed end to end
Connectors Video: BNC-male 8" (203mm) mini-coax lead Power: 2-wire 18AWG lead
Combined signals: RJ45 (500024); Screw terminals (500029)
Temperature Operating: 32 - 131°F (0 - 55°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95%
Enclosure ABS fire retardant plastic
Dimensions 1.875 x 1" (4.7 x 2.54cm) diameter plus cable leads; 8" (20cm) for video; 10" (25.4cm) for power and control leads
Weight 1.95 oz (55g)
Packaging Info
Package Weight 0.1 lb
Box Dimensions (LxWxH) 5.2 x 3.1 x 0.9"
In the Box
MuxLab 500024 CCTV Power-Thru Balun
  • Lifetime Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$54.46
