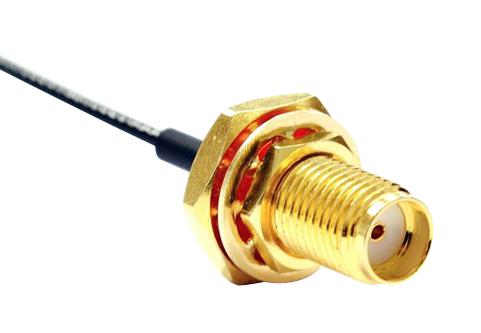

Multicomp PRO MP005944 MP005944 RF / Coaxial Cable Assembly 5G IP47 SMA Bulkhead Jack to 90° MHF 4L Plug 1.37mm 50 ohm 7.9 "

The MP005944 is a 200mm RF Coaxial Cable Assembly, IP67 waterproof SMA bulkhead jack to a IPEX (MHF4) plug. It features a 1.37mm low-loss cable. Ideal for outdoor RF communications applications. Utilizing 1.37mm low-loss cable. Ideal for outdoor RF communications applications

• 1.37mm low-loss micro coaxial cable
• Impedance: 50 R
• Frequency range: DC to 6 GHz
• Working voltage: 60Vrms max.
• Dielectric withstanding voltage: 200Vrms max.
• Insulator resistance: 500MR min.
• VSWR: 1.65: 1 max.
• Insertion loss: -1.45dB max.
• Sheath colour black
• Temperature range-20-+70 degC

• IP67

Applications

RF Communications

Other details

Brand	MULTICOMP PRO
Part Number	MP005944
Quantity	Each
Technical Data Sheet EN
