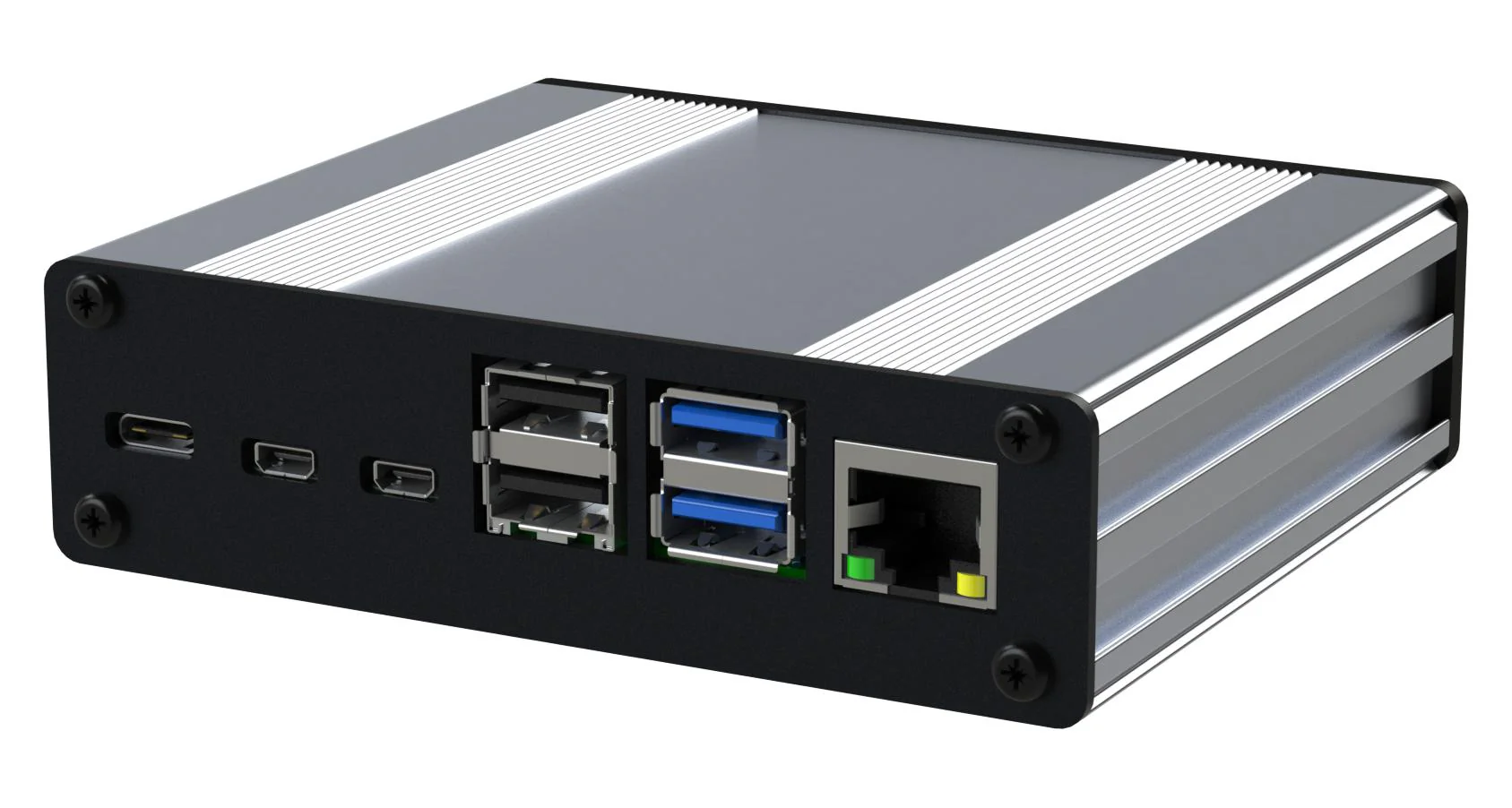

Multicomp PRO MP004561 MP004561 RPI4 Case With Heatsink KIT Silver

The Pi-Box Pro 4 is a rugged industrial enclosure kit for the Raspberry Pi4. By utilising our Micro HDMI Pi4 extender board we can turn the power and Micro HDMI connectors through 90° so the they are on the same plane as the Ethernet and USB connectors. The rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi4. The standard version allows for access to the SD Card from the assembled enclosure.

• Rugged industrial enclosure kit
• Micro HDMI Pi4 extender board
• Rear panel is made from 3mm acrylic
• Allows for access to the SD Card from the assembled enclosure

Applications

Computer Hardware, Education, Hobby & Education, Consumer Electronics, Industrial, IIoT (Industrial Internet of Things), Domestic, Public, Automotive Systems

Contents

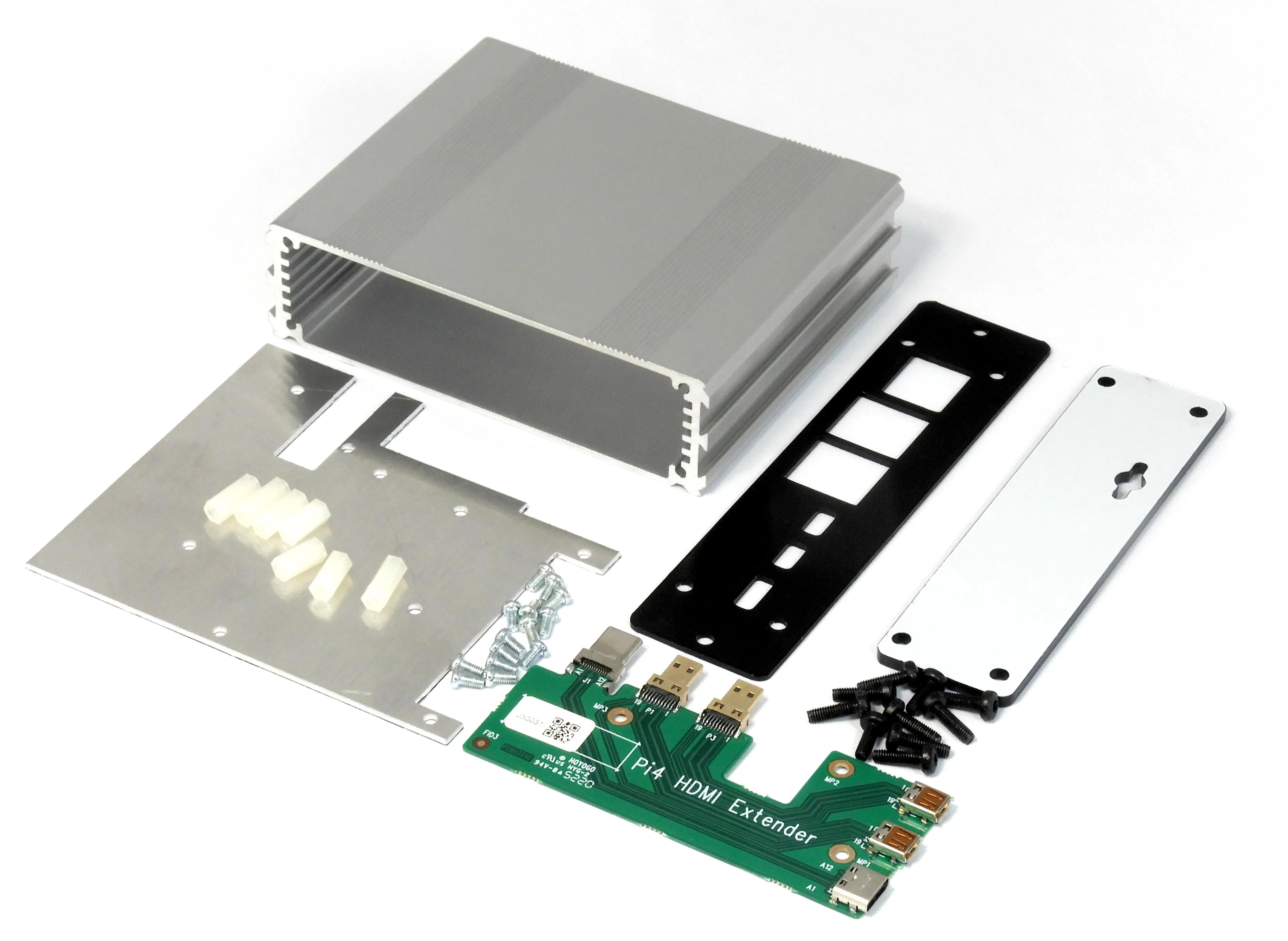

1x Extender Board; 1x Carrier Plate; x1 E-Case B Extrusion; 1x Aluminium End Plate; 1x Acrylic End Plate (For WiFi & Bluetooth); 1 set of Screws & Fixings; Pi-Box Pro 4 heatsink kit also includes: Heat Blocks, Heat Transfer Pads & Screws

Footnotes Heat Sinking Kit consists of 2 aluminium blocks and adhesive pads that transfer the heat from the processor and the Ram chip to the aluminium carrier plate and then out to the enclosure, making the whole assembly a heat sink.

Other details

Brand	MULTICOMP PRO
Part Number	MP004561
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
