MULTICOMP PRO MP-HS-3511-03-0300

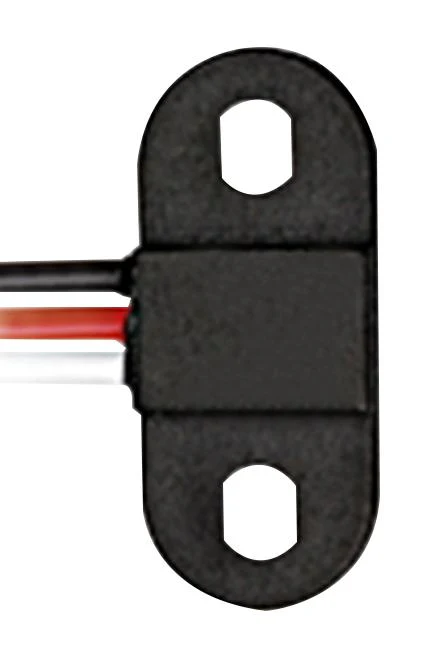

MP-HS-3511-03-0300 is a 3 wire, unipolar, flange mount hall effect sensor. Hall sensors is ideal for high frequency applications where accuracy and product life are critical. Typical applications include position control, speed measurement RPM, non-touch switching, level sensing and flow detection. It operates with a supply voltage of up to 24VDC making it suitable for the automotive industry. It offers flat pack, tubular threaded and flange mount solutions. It is IP67 rated.
- Compact size, various switching sensivities
- Supply voltage range from 2.7 to 24V, 24V output voltage max, 25mA output current max
- Supply current range from 1.1 to 2.4mA
- Port low output voltage is 0.13V typical (Io = 20mA)
- 1μs output fall and rise time (VSUP = 12V, RL = 820, CL= 20pF)
- Output jitter (RMS) is ±0.58μs typical
- Delay time is 16μs, 1.6 to 3μs output refresh period range
- PA6 housing, UL1007/1569, AWG 24 cable
- Epoxy potting compound
- Operating temperature range from -20°C to + 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP-HS-3511-03-0300 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
