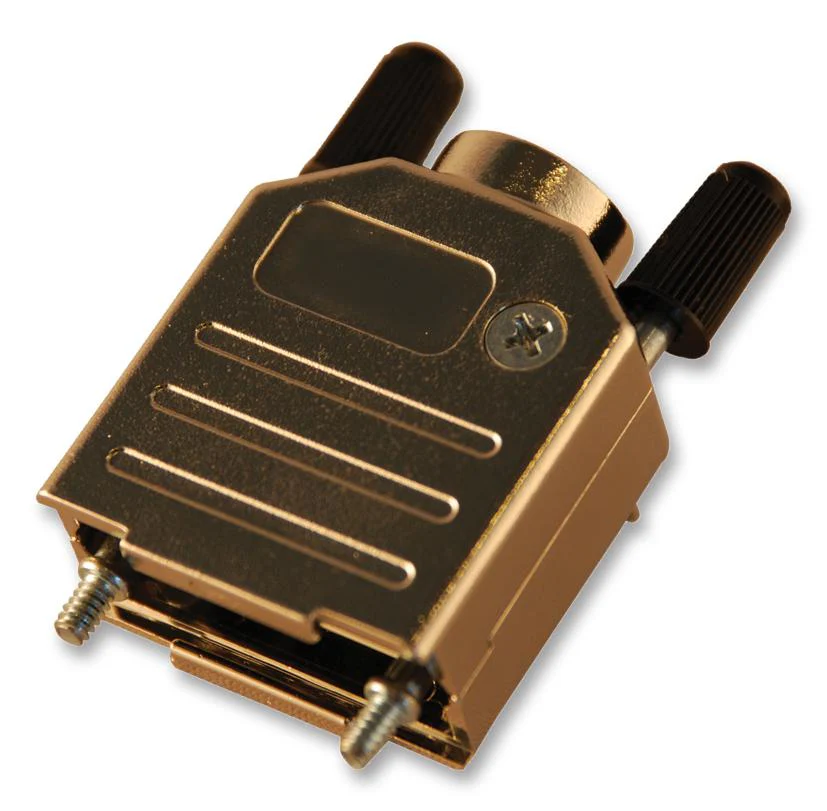

Multicomp PRO MC-DTPMK9-K MC-DTPMK9-K D Sub Backshell Dtpmk DE 180° ABS (Acrylonitrile Butadiene Styrene) Body

The DTPMK series D-sub Backshell made up of nickel-plated ABS plastic with polycarbonate cable strain relief. It is available in sizes of 9, 15, 25 and 37. It accepts round foil and braided cable types and it has long jackscrews with UNC 4-40 thread as standard, M2.5, M2.6 or M3 as option.

• Minimise interference from electromagnetic and RF sources
• Non-static parts avoid ESD problems
• 3 to 13mm Cable diameter
• Long jackscrews with moulded top for colour coding
• Straight cable outlet
• >40dB between 30MHz and 1GHz attenuation factor
• -40 to 110°C Temperature range
• Multicomp products are rated 4.6 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

Applications

Industrial

Other details

Brand	MULTICOMP PRO
Part Number	MC-DTPMK9-K
Quantity	Each
Technical Data Sheet EN
