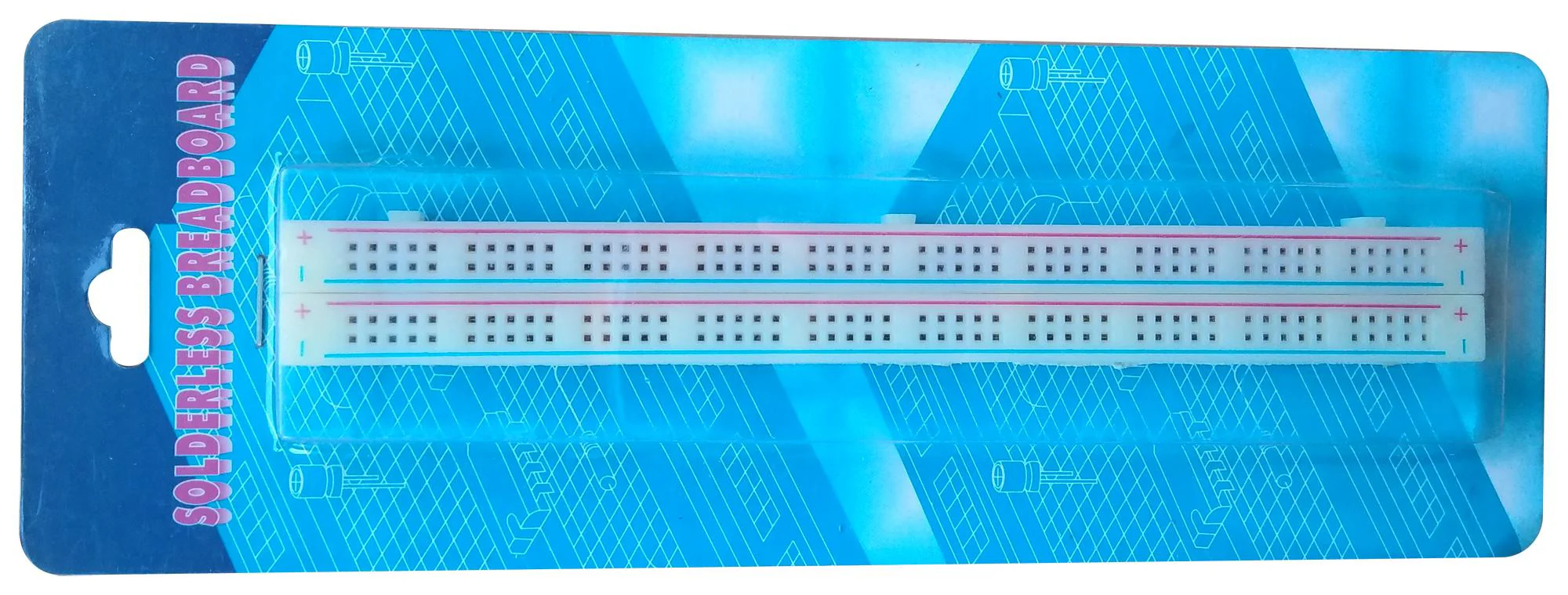

MULTICOMP MCBB100 BREAD BOARD, ABS, 165.3MM X 20.5MM
- Copper with nickel plated spring clips
- Wire range from 29AWG to 20AWG
- Rated voltage is 300V
- Rated current is 3A to 5A
- 2 distribution strip of 200 tie-point
- 2.54mm pitch
- Dimension is 20.5mm x 165.3mm x 8.3mm
Product details
| Board Material | ABS (Acrylonitrile Butadiene Styrene) |
| External Width | 165.3mm |
| Board Type | Breadboard |
| Hole Diameter | - |
| Board Thickness | 8.3mm |
| Product Range | - |
| External Height | 20.5mm |
Other details
| Brand | MULTICOMP |
| Part Number | MCBB100 |
| Quantity | Each |
| Technical Data Sheet EN |  |
