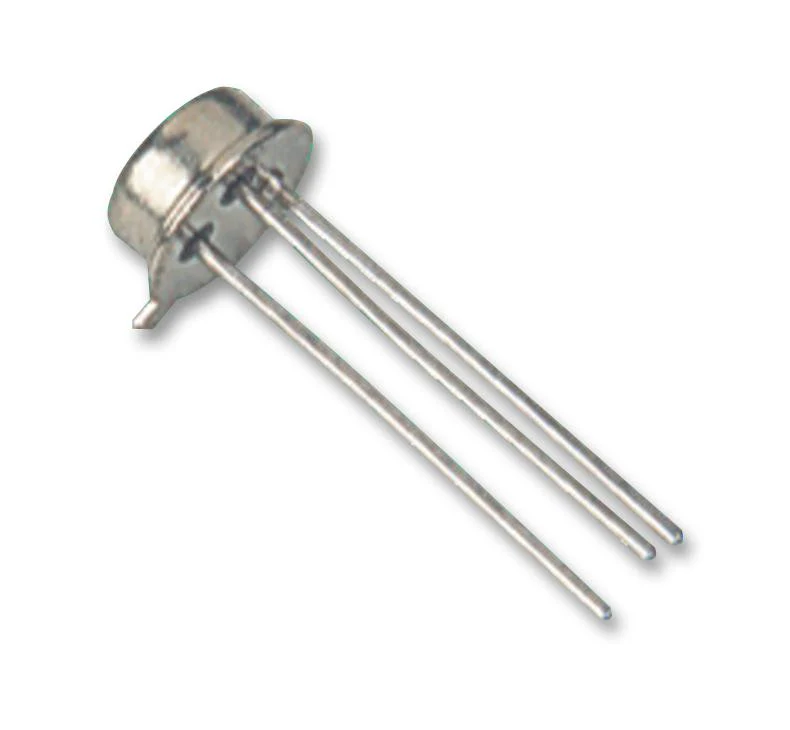

MULTICOMP 2N5322 Bipolar (BJT) Single Transistor, General Purpose, PNP, -75 V, 1 W, -2 A, 30 hFE
MULTICOMP 2N5322 Bipolar (BJT) Single Transistor, General Purpose, PNP, -75 V, 1 W, -2 A, 30 hFE
- Silicon power switching transistor
- Turn-on time of 100ns
- Turn-off time of 1000ns
- 175°C/W Junction-to-ambient thermal resistance
- 17.5°C/W Junction to case resistance
Applications
Audio, Industrial
Product details
| Power Dissipation Pd | 1W |
| DC Collector Current | -2A |
| Collector Emitter Voltage V(br)ceo | -75V |
| Transition Frequency ft | - |
| Operating Temperature Max | 200°C |
| Transistor Polarity | PNP |
| DC Current Gain hFE | 30hFE |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Transistor Case Style | TO-39 |
| MSL | - |
Other details
| Brand | MULTICOMP |
| Part Number | 2N5322 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
