MSI PRO B760-P WIFI DDR4 LGA 1700 ATX Motherboard
MSI PRO B760-P WIFI DDR4 Overview
- 1Description
- 2Cooling Capabilities
- 3DIY Friendly
- 4Expansion Slots
- 5Protection
- 6Built for Speed
- 7BIOS and Updates
- 8Connectivity Options
- 9Security
Set the foundation of your next business PC build with the robust MSI PRO B760-P WIFI DDR4 LGA 1700 ATX Motherboard. Designed to leverage the power of 12th and 13th Gen Intel CPUs, the PRO enhances system performance suitable for operating multiple programs with speed and reliability.
Intel's LGA 1700 socket rests at the heart of the Pro, allowing you to install a variety of 12th and 13th Gen processors to match your needs. Four DDR4 RAM slots allow you to install up to 128GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with an assortment of PCIe 3.0 and 4.0 x16 expansion slots. Between back-panel connections and internal headers, you get several USB-A 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.
Cooling Capabilities
Designed to keep your system cool even under the heaviest power load, the PRO offers an M.2 Shield Frozr heat sink to keep your solid-state drives safe from thermal throttling. Fully Fan Control ensures your internal fans are meeting thermal demands properly through software that can operate automatically or manually.
DIY Friendly
Whether you are new to constructing PCs or a seasoned builder, the PRO is designed to offer a variety of enhancements that ease the installation process. EZ M.2 Clip makes inserting and securing storage devices easier.
Expansion Slots
There are five PCIe x16 expansion slots featured on the PRO, allowing you to install a wide range of graphics and utility cards. You get two PCIe 4.0 in x16 mode and three PCIe 3.0 in x1 mode.
Protection
A Steel Armor PCIe slot provides added strength ideal for heavier graphics cards thanks to extra solder points and metal casing. Double ESD protection adds a grounding layer around the mounting holes to prevent static discharges. The PRO is Windows 11 Certified, ensuring a worry-free installation.
Built for Speed
Leveraging the power of PCIe 4.0 technology, you can experience data-transfer speeds up to 64 Gb/s for your M.2 storage and graphics cards. Dual-channel DDR4 RAM DIMM slots can handle memory frequencies up to 5333 MHz and offer XMP support for a wide range of memory brands, ensuring that performance meets your needs.
BIOS and Updates
MSI Center unifies a suite of software utilities into a single centralized application, giving you a litany of features enabling you to modify and monitor your system. Hardware Monitoring, System Diagnosis, Fan Center, User Scenario, True Color, and Profile Setting offer fine-tuning on a hardware level while Mystic Light offers control over RGB lighting across your system and connected peripherals. Click BIOS 5 enables you to adjust various motherboard parameters so you can adjust performance, efficiency, and even overclocking capabilities. Resizable Bar technology streamlines the connection between your GPU and CPU for smoother performance, ideal for gaming and graphically intense programs.
Connectivity Options
With robust connectivity options, you can connect a wide range of devices to the PRO without worrying about compromising the performance of your build. Gain faster networking speeds with 2.5 Gigabit Ethernet LAN that works alongside LAN Manager software to prioritize your connection. Experience high-quality sound with Audio Boost, equipped with a dedicated high-definition audio processor, high-quality audio capacitors, and audio jacks. Left and right audio signals are isolated on separate PCB layers, preventing crosstalk between each channel. De-Pop Protection reduces the popping sound when plugging and unplugging your devices from the audio jacks.
Security
The PRO offers enhanced security functions within the BIOS. Secure Boot ensures your system has not been compromised and only starts your system when all components and boot software have been properly verified.
UPC: 824142306864

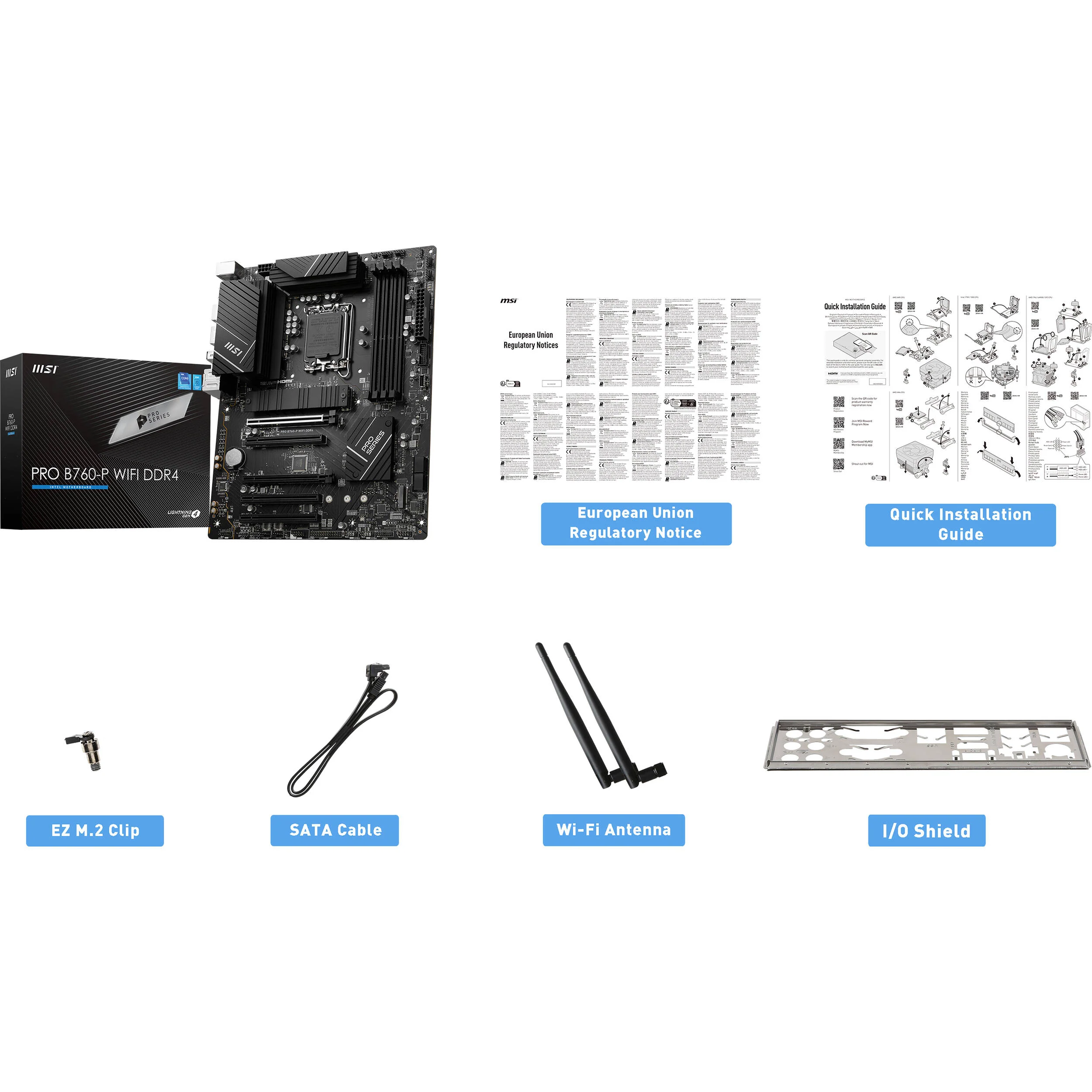

In the Box
- MSI PRO B760-P WIFI DDR4 LGA 1700 ATX Motherboard
- SATA Cable
- EZ M.2 Clip
- Wi-Fi Antennas
- I/O Shield
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Cooling Capabilities
- DIY Friendly
- Expansion Slots
- Protection
- Built for Speed
- BIOS and Updates
- Connectivity Options
- Security
MSI PRO B760-P WIFI DDR4 Specs
Key Specs
| Chipset |
Intel B760
|
| CPU Socket |
LGA 1700
|
| Memory Slots |
4 x 288-Pin
|
| Memory Support |
DDR4 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz
|
| M.2 |
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| Expansion Slots |
2 x PCIe 4.0 x16
3 x PCIe 3.0 x16 (x1 mode) |
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Form Factor |
ATX
|
CPU
| Chipset |
Intel B760
|
| CPU Socket |
LGA 1700
|

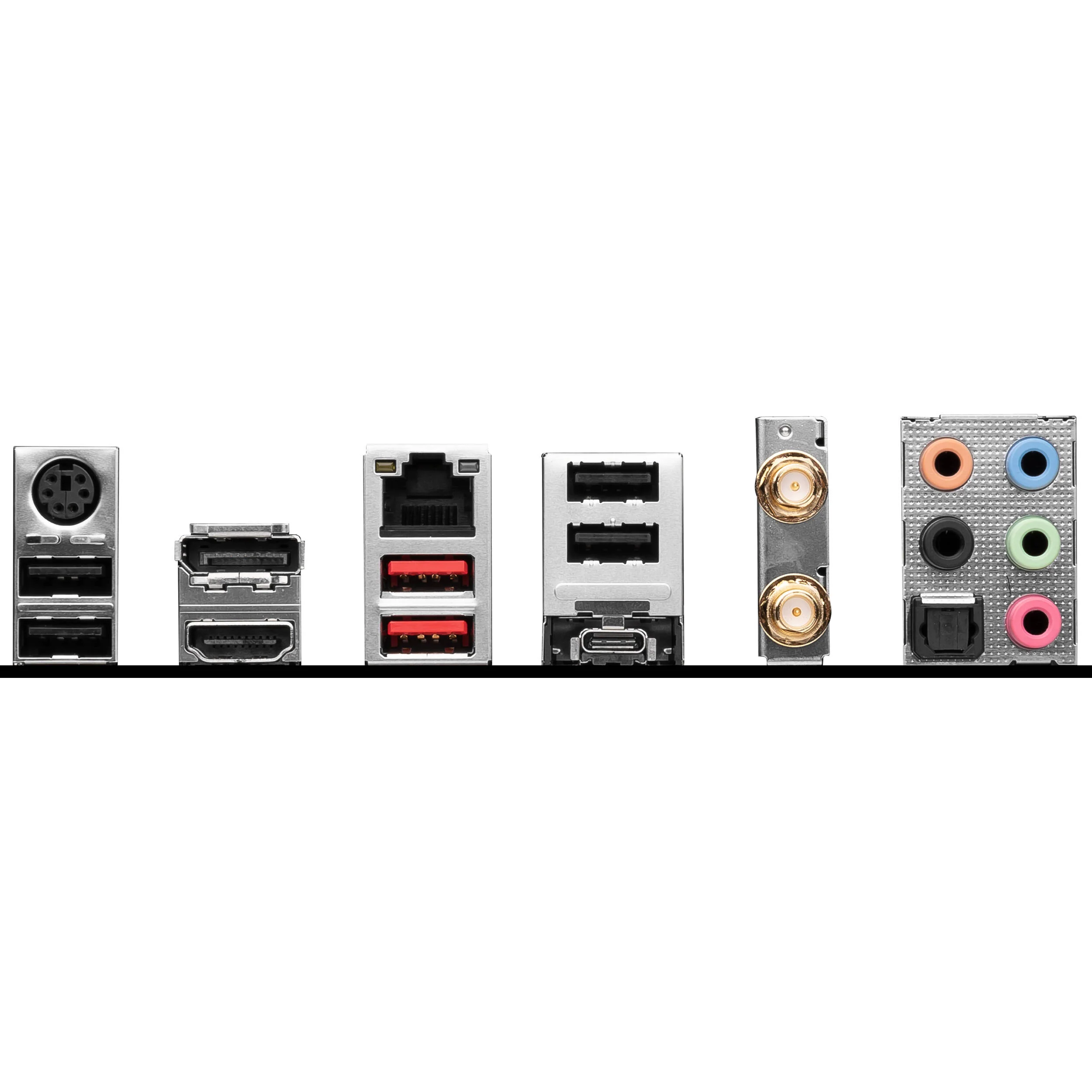

Back Panel I/O
| USB |
4 x USB-A (USB 2.0)
2 x USB-A (USB 3.1/3.2 Gen 2) 1 x USB-A (USB 3.1/3.2 Gen 2) |
| Thunderbolt |
No
|
| Display |
1 x HDMI 2.1
1 x DisplayPort 1.4 |
| Audio |
5 x 1/8" / 3.5 mm
1 x S/PDIF |
| Ethernet / Controller |
1 x Realtek 8125BG 2.5Gigabit
|
| PS/2 |
1 x PS/2
|
| Wi-Fi Antenna |
2 x Connector
|
Memory
| Memory Slots |
4 x 288-Pin
|
| Memory Support |
DDR4 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz
|
| Maximum Capacity |
128 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4 x SATA III
|
| M.2 |
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
Internal I/O
| Expansion Slots |
2 x PCIe 4.0 x16
3 x PCIe 3.0 x16 (x1 mode) |
| USB |
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1 x 4-Pin CPU
5 x 4-Pin System |
| Liquid Cooling |
1 x 4-Pin Pump
|
| Power Connectors |
1 x 24-Pin Mainboard
1 x 8-Pin ATX 1 x 4-Pin ATX |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
3 x RGB
|
| Audio |
No
|
| Add-On |
1 x Thunderbolt Header
|
| Legacy |
1 x Parallel
1 x Serial |
Front Panel I/O
| Front Panel I/O |
AAFP
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Bluetooth |
5.3
|
| Module Support |
1 E Key M.2
|
Software
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor |
ATX
|
| Dimensions |
9.60 x 12.0" / 243.84 x 304.8 mm
|
Packaging Info
| Package Weight |
3.3 lb
|
| Box Dimensions (LxWxH) |
13.8 x 11.1 x 2.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$277.86
