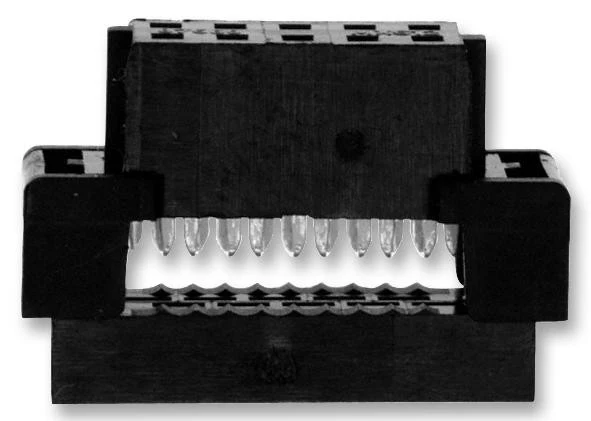

MOLEX 87568-1063 Wire-To-Board Connector, 2 mm, 10 Contacts, Receptacle, Milli-Grid 87568 Series, IDC / IDT, 2 Rows
MOLEX 87568-1063 Wire-To-Board Connector, 2 mm, 10 Contacts, Receptacle, Milli-Grid 87568 Series, IDC / IDT, 2 Rows
- Early entry system crimp terminals - Provides longer pin wipe for a more reliable contact
- Center polarization key - Prevents mismating
- Locking ramps - Provides strong retention force to header
- Black colour
- UL94V-0 Flammability rating
- 1A Current rating per contact
- 125V Voltage rating
- -20 to 85°C Temperature rating
Applications
Automotive, Audio, Consumer Electronics, Communications & Networking
Product details
| No. of Contacts | 10Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | Milli-Grid 87568 Series |
| Contact Material | Copper Alloy |
| Contact Termination Type | IDC / IDT |
| Pitch Spacing | 2mm |
| No. of Rows | 2Rows |
Other details
| Brand | MOLEX |
| Part Number | 87568-1063 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
