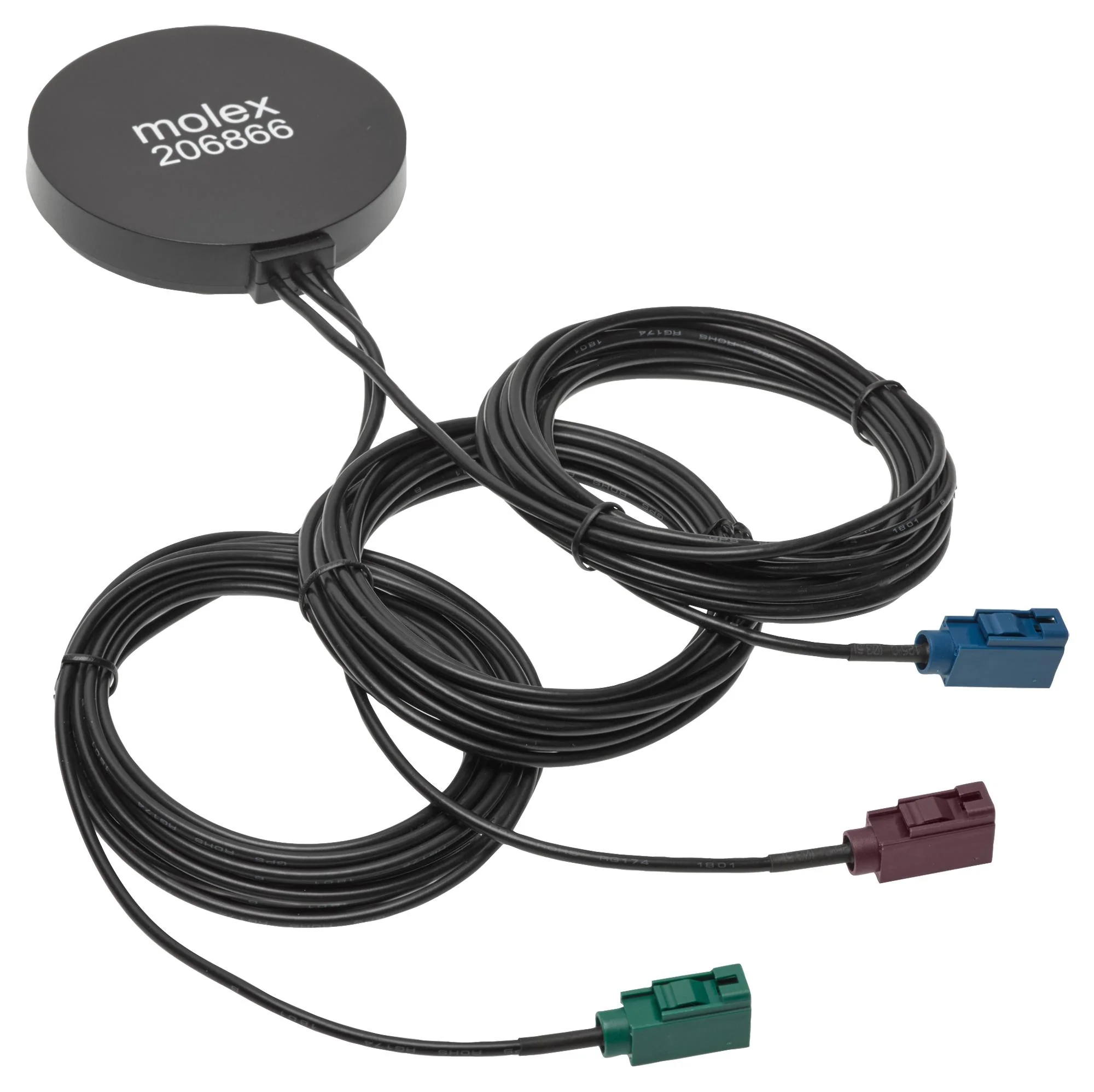

Molex 206866-3000 3-in-1 (4G/Wi-Fi/GPS) External Antenna With Fakra Connectors IP66 824MHz-2.4GHz Linear Rhcp

The 206866-3000 is a fully balanced, IP66-rated external antenna offers high 4G, Wi-Fi and GPS signal performance in telematics, remote monitoring and other applications. This compact, waterproof 3-in-1 external antenna (with 77mmdiameter and 15mm height) enables space-efficiency and easy integration into applications requiring IP66 protection. The 3m long cables extend connectivity between the antenna and the application's 3 radio devices for their respective 4G, Wi-Fi and GPS operations. Ideal to use in Fleet Management Systems for Commercial Vehicles.

• 4G: VSWR 3 = Return loss < -6dB
• GPS, WiFi: VSWR 2 = Return loss < -10dB
• Protocols: BT, Cellular, GPS, Wi-Fi
• FAKRA Connectors: Blue: GPS, FAKRA Model C; Purple: 4G, FAKRA Model D; Green: Wi-Fi, FAKRA Model E

Applications

Automotive Systems, Commercial Vehicle, Communications & Networking, GPS Antennas, Logistics, Remote Sensing and Metering, RF Communications, Security, Wireless

Product details

Antenna Type	GPS
Frequency Min	1.57542GHz
Frequency Max	1.602GHz
Antenna Mounting	Adhesive
Gain	3dBi
VSWR	2
Input Power	-
Input Impedance	50ohm
Antenna Polarisation	Right Hand Circular
Product Range	206866 Series

Other details

Brand	MOLEX
Part Number	206866-3000
Quantity	Each
Technical Data Sheet EN
Enhanced Product Overview EN
Drawing EN
One Page Summary EN
Application Note EN
