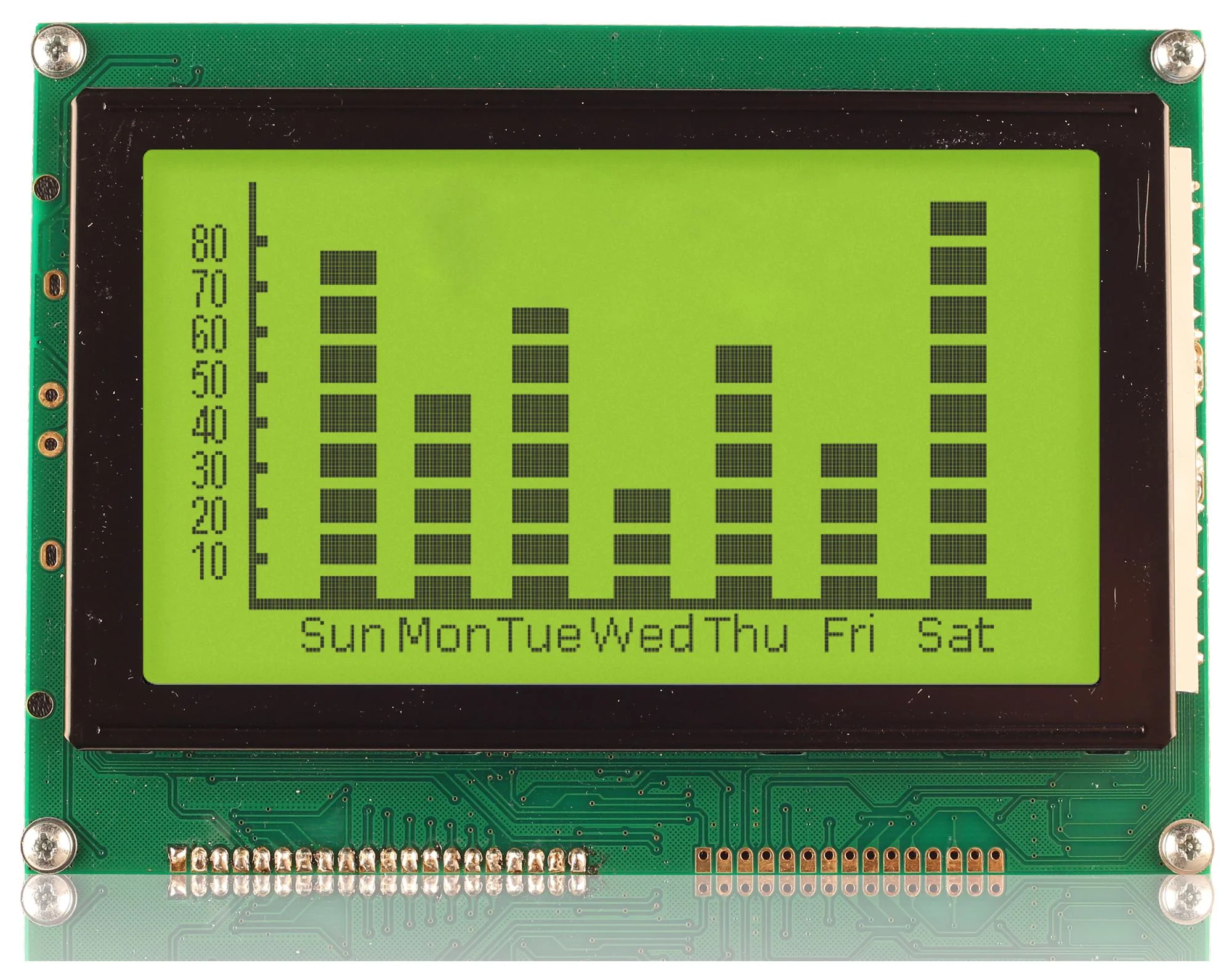

Midas MC240128A6W-SPTLY-V2 Graphic LCD 240 x 128 Pixels Black on Yellow / Green 5V Parallel Transflective
Midas MC240128A6W-SPTLY-V2 Graphic LCD 240 x 128 Pixels Black on Yellow / Green 5V Parallel Transflective
- Graphic LCD (Liquid Crystal Display) with 240x128 pixels
- STN transflective
- White LED backlight
- Black characters on a white background appearance
- Parallel interface, RA6963 controller
- 5V Driving voltage
- 20 SIL bottom left connection, 0.40mm x 0.40mm pixel size
- Operating temperature range from -20°C to +70°C
- Chip on board construction
- 144.00mm x 104.00mm x 13.00mm overall size, 114.00mm x 64.00mm viewing area
Other details
| Brand | MIDAS |
| Part Number | MC240128A6W-SPTLY-V2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
