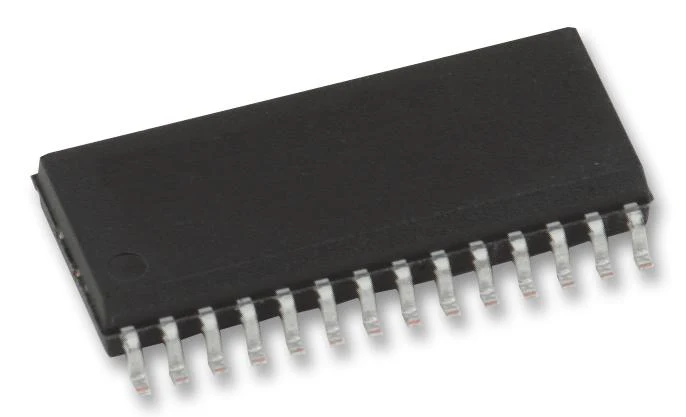

Microchip PIC18F2620-I/SO 8 Bit MCU Flash PIC18 Family PIC18F26xx Series Microcontrollers 40 MHz 64 KB 28 Pins Soic
Microchip PIC18F2620-I/SO 8 Bit MCU Flash PIC18 Family PIC18F26xx Series Microcontrollers 40 MHz 64 KB 28 Pins Soic
The PIC18F2620-I/SO is an Enhanced Flash Microcontroller with 10-bit A/D and nanoWatt technology. The PIC18F2620 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance and power sensitive applications. The PIC18F2620 family incorporates a range of features that can significantly reduce power consumption during operation. The PIC18F2620 device include an internal oscillator block which generates two different clock signals, either can be used as the microcontroller's clock source. This may eliminate the need for external oscillator circuits on the OSC1 and/or OSC2 pins. The PIC18F2620 microcontroller can be serially programmed while in the end application circuit. This is simply done with two lines for clock and data and three other lines for power, ground and the programming voltage.
- CPU - Up to 10 MIPS performance and C compiler optimized RISC architecture
- System - Watchdog timer with separate RC oscillator
- nanoWatt power managed modes - run, idle and sleep modes
- Analogue - 10 channels, 100kSPS and programmable brown-out reset module
- 100 years typical flash/data EEPROM retention
- Self-programmable under software control
- Priority levels for interrupts
- 8 x 8 single-cycle hardware multiplier
- In-Circuit Debug (ICD) via two pins
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F2620-I/SO |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Application Note EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$4.79
Original: $15.96
-70%Microchip PIC18F2620-I/SO 8 Bit MCU Flash PIC18 Family PIC18F26xx Series Microcontrollers 40 MHz 64 KB 28 Pins Soic—
$15.96
$4.79Microchip PIC18F2620-I/SO 8 Bit MCU Flash PIC18 Family PIC18F26xx Series Microcontrollers 40 MHz 64 KB 28 Pins Soic
The PIC18F2620-I/SO is an Enhanced Flash Microcontroller with 10-bit A/D and nanoWatt technology. The PIC18F2620 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance and power sensitive applications. The PIC18F2620 family incorporates a range of features that can significantly reduce power consumption during operation. The PIC18F2620 device include an internal oscillator block which generates two different clock signals, either can be used as the microcontroller's clock source. This may eliminate the need for external oscillator circuits on the OSC1 and/or OSC2 pins. The PIC18F2620 microcontroller can be serially programmed while in the end application circuit. This is simply done with two lines for clock and data and three other lines for power, ground and the programming voltage.
- CPU - Up to 10 MIPS performance and C compiler optimized RISC architecture
- System - Watchdog timer with separate RC oscillator
- nanoWatt power managed modes - run, idle and sleep modes
- Analogue - 10 channels, 100kSPS and programmable brown-out reset module
- 100 years typical flash/data EEPROM retention
- Self-programmable under software control
- Priority levels for interrupts
- 8 x 8 single-cycle hardware multiplier
- In-Circuit Debug (ICD) via two pins
Other details
| Brand | MICROCHIP |
| Part Number | PIC18F2620-I/SO |
| Quantity | Each |
| Technical Data Sheet EN | |
| Product Change Notice EN | |
| Application Note EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
