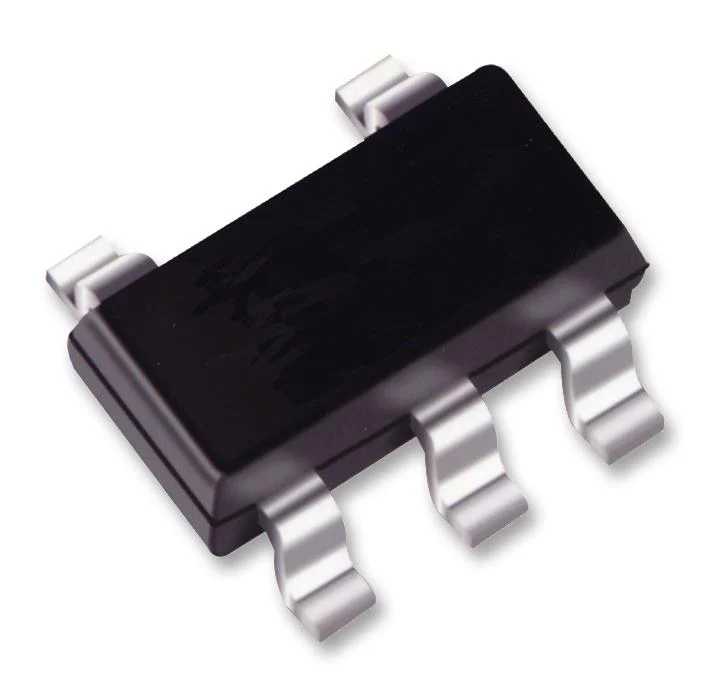

Microchip MCP6281T-E/OT Operational Amplifier Single 1 5 MHz 2.5 V/µs 2.2V to 5.5V SOT-23 Pins

The MCP6281T-E/OT is an Operational Amplifier provides wide bandwidth for the current. This family has a 5MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. This family also operates from a single supply voltage as low as 2.2V, while drawing 450µA (typical) quiescent current. Additionally, the MCP6281 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS - 300mV. This family of operational amplifier is designed with Microchip's advanced CMOS process. This device is manufactured by cascading the two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input puts the device in low-power mode. The MCP6281 family operates over the extended temperature range of -40 to +125°C. It also has a power supply range of 2.2 to 6.0V.

• Wide bandwidth
• Supports rail-to-rail input and output swing

Applications

Automotive, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	MCP6281T-E/OT
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
