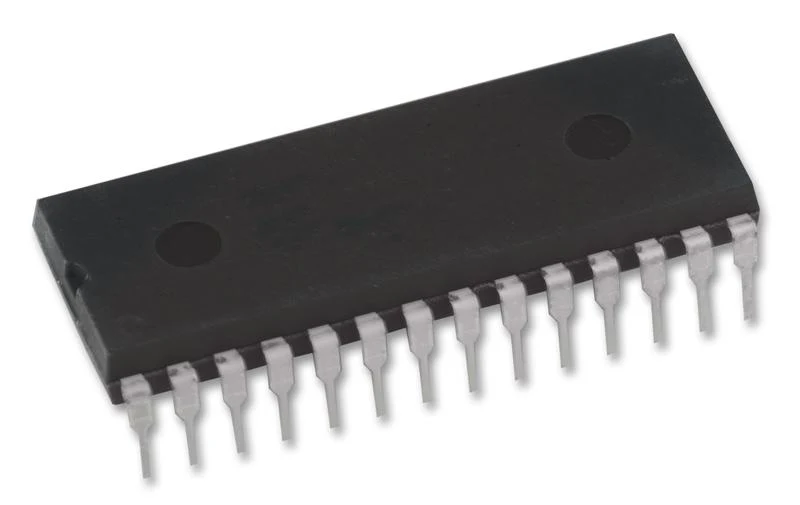

Microchip ATMEGA8-16PU 8 Bit MCU AVR Atmega Family ATmega8 Series Microcontrollers 16 MHz KB 28 Pins DIP
Microchip ATMEGA8-16PU 8 Bit MCU AVR Atmega Family ATmega8 Series Microcontrollers 16 MHz KB 28 Pins DIP
ATMEGA8-16PU is a low power CMOS 8 bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8-16PU achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimise power consumption versus processing speed.
- Advanced RISC architecture
- 130 powerful instructions
- 32 � 8 general purpose working registers
- Fully static operation
- Up to 16MIPS throughput at 16MHz
- On chip 2 cycle multiplier
- High endurance non volatile memory segments
- 8Kbytes of in system self programmable flash program memory
- 512bytes EEPROM
- 1Kbyte internal SRAM
- Data retention: 20 years at 85°C/100 years at 25°C
- Optional boot code section with independent lock bits
- In system programming by on-chip boot program
- True read-while-write operation
- Programming lock for software security
- Peripheral features
- Real Time Counter with separate oscillator
- Three PWM channels
- Six channel, 10bit accuracy
- Byte oriented two wire serial interface
Other details
| Brand | MICROCHIP |
| Part Number | ATMEGA8-16PU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
