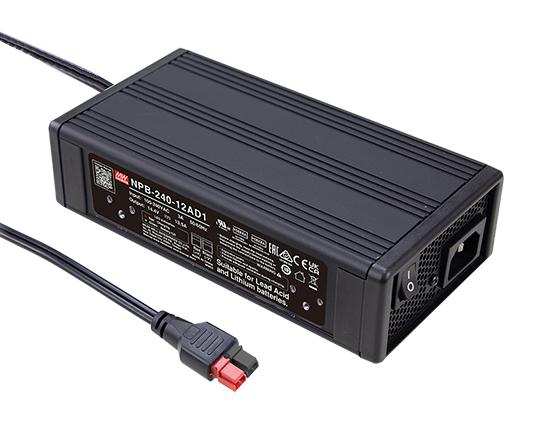

MEAN WELL NPB-240-12AD1 Battery Charger, Anderson Connector, Desktop, Lead Acid, Li-Ion, 264 V in , 14.4 V Out
MEAN WELL NPB-240-12AD1 Battery Charger, Anderson Connector, Desktop, Lead Acid, Li-Ion, 264 V in , 14.4 V Out

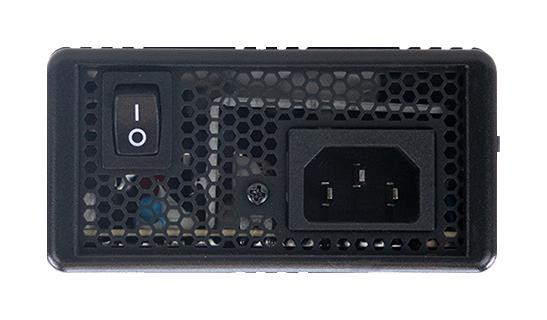

NPB-240-12AD1 is a NPB-240 series charger for compatible with lead-acid (flooded, gel, AGM) and li-ion (lithium iron, lithium manganese) batteries. This product is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control. Typical applications are radio system backup solution, electric scooter charger, camping car, buses, heavy duty truck, specialty vehicles, surveillance system, portable power tools.
- 90~264VAC universal AC input, built-in PFC, single output
- Charger for compatible with lead-acid and li-ion batteries
- Fanless design, wide adjustable output range, 2 or 3 stage selectable by DIP S.W
- No load power consumption is 0.15W(AC S.W off), Anderson equivalent output connector
- Wide operating temperature range from -30� to +70�
- Short circuit / overvoltage /overtemperature / battery reverse polarity protection
- Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification

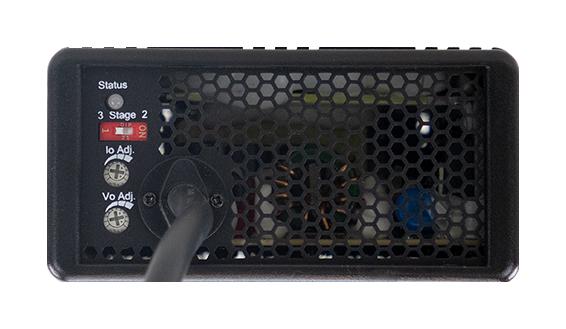

- Front panel LED indicator for charging status, 3 years warranty
- 240W output power, 14.4V output voltage, 13.5A output current
- Dimension is 96mm width x 49mm height x 180mm depth
Product details
| Supply Voltage: 264VAC |
Other details
| Brand | MEAN WELL |
| Part Number | NPB-240-12AD1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
