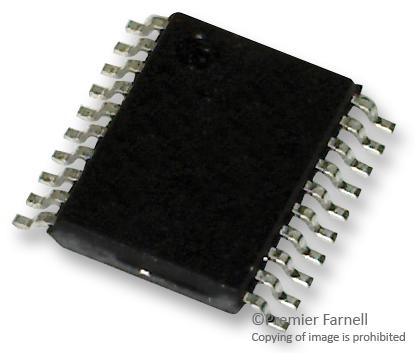

MAXIM INTEGRATED PRODUCTS MAX16814BEUP+ LED Driver, Buck-Boost, SEPIC, 4.75V to 40V in, 4 Outputs, 2 MHz Switch. Freq., 40V/2A out, TSSOP-20
MAXIM INTEGRATED PRODUCTS MAX16814BEUP+ LED Driver, Buck-Boost, SEPIC, 4.75V to 40V in, 4 Outputs, 2 MHz Switch. Freq., 40V/2A out, TSSOP-20
Product details
| Device Topology | Boost, Buck-Boost, SEPIC |
| Input Voltage Min | 4.75V |
| Input Voltage Max | 40V |
| Output Voltage Max | 40V |
| Output Current Max | 150mA |
| Switching Frequency | 2MHz |
| No. of Outputs | 4Outputs |
| IC Mounting | SMD |
| Driver Case Style | TSSOP |
| No. of Pins | 20Pins |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Packaging | Each |
| Product Range | - |
| Automotive Qualification Standard | - |
| RoHS Phthalates Compliant | To Be Advised |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX16814BEUP+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
