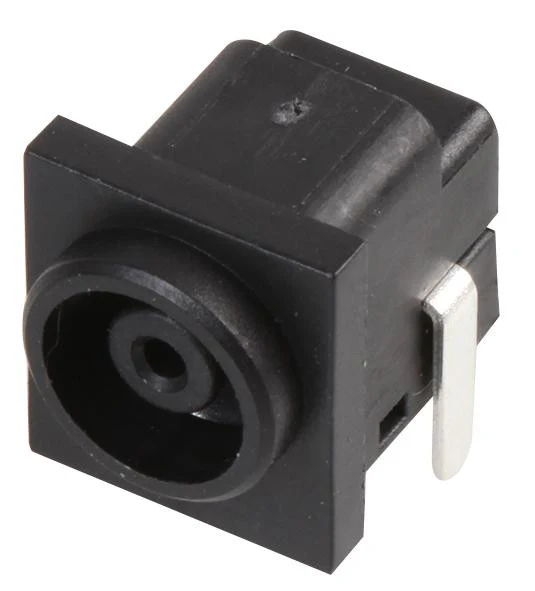

LUMBERG 1613 11 DC Power Connector, Jack, 2 A, 1.45 mm, Through Hole Mount, 4 mm
- Diameter Opening: 7mm
- Diameter Insulation: 4.0mm
- Diameter Centre Hole: 1.45mm
- Insulating Body: PBT, V0 according to UL 94
- Contact: Cu alloy, silvered
- Temperature Range: -20°C to 70°C
- Mating with power supply plug 1636 05
Applications
Power Management, Industrial
Product details
| Barrel Outer Diameter | 7mm |
| Connector Mounting | Through Hole Mount |
| Voltage Rating | 18V |
| Contact Termination Type | Solder |
| Barrel Inner Diameter | 4mm |
| Product Range | - |
| Current Rating | 2A |
| Pin Diameter | 1.45mm |
| Gender | Jack |
| Barrel Length | - |
Other details
| Brand | LUMBERG |
| Part Number | 1613 11 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
