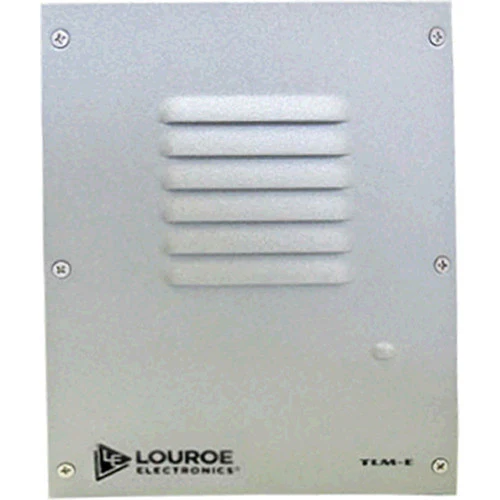

Louroe TLM-E 2-Way Speaker/Microphone
The Louroe Electronics TLM-E 2-Way Speaker/Microphone features an electret condenser microphone and a 4� (10.1cm) speaker, all within one housing. As a part of a Louroe audio system, it provides two-way communication between the remote area and the audio-receiving device (Louroe Base Station, etc). Provided with this 2-way unit are two back boxes for either flush mounting or surface mounting to a wall or a surface mount.
Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped.
- White Plastic Backbox for Flush Mount
- Beige Metal Backbox for Surface Mount
- Limited 1-Year Warranty
| Speaker | |
|---|---|
| Power Rating | 4 W |
| Input | 70 V constant |
| Frequency Response | 150 Hz to 12 kHz |
| Voice Coil | Impedance: 8 ? |
| Speaker Size | 4" |
| Microphone | |
|---|---|
| Type | Electret condenser |
| Output | Line level (0 dB @ 1 K?) |
| Output Impedance | 600 ? unbalanced (microphone only) |
| Frequency Response | 40 Hz to 15 kHz � 1 dB |
| Current Drain | 4 mA |
| Supply Voltage | 12 VDC |
| Wiring | Requirements: 4 conductor wires consisting of 2 conductor-shielded wires, 20 gauge with 22-gauge drain (microphone connection) and 2 conductor-unshielded wires, 18-gauge (speaker connection), all in the same jacket |
| Mechanical | |
|---|---|
| Dimensions | Face plate (H x W): 6.2 x 8.0" (15.8 x 20.3 cm) |
| Back box | Metal surface mount box (H x W x D): 6.2 x 8.0 x 2.7" (15.8 x 20.3 x 6.8 cm), plastic flush mount box back box portion (H x W x D): 5.0 x 6.8 x 2.6" (12.7 x 17.2 x 6.6 cm), total including flange (H x W x D): 6.2 x 8.0 x 2.6" (15.7 x 20.3 x 6.6 cm) |
| Weight | 2.2 lb (1.3 kg) |
Original: $539.15
-70%$539.15
$161.74More Images
