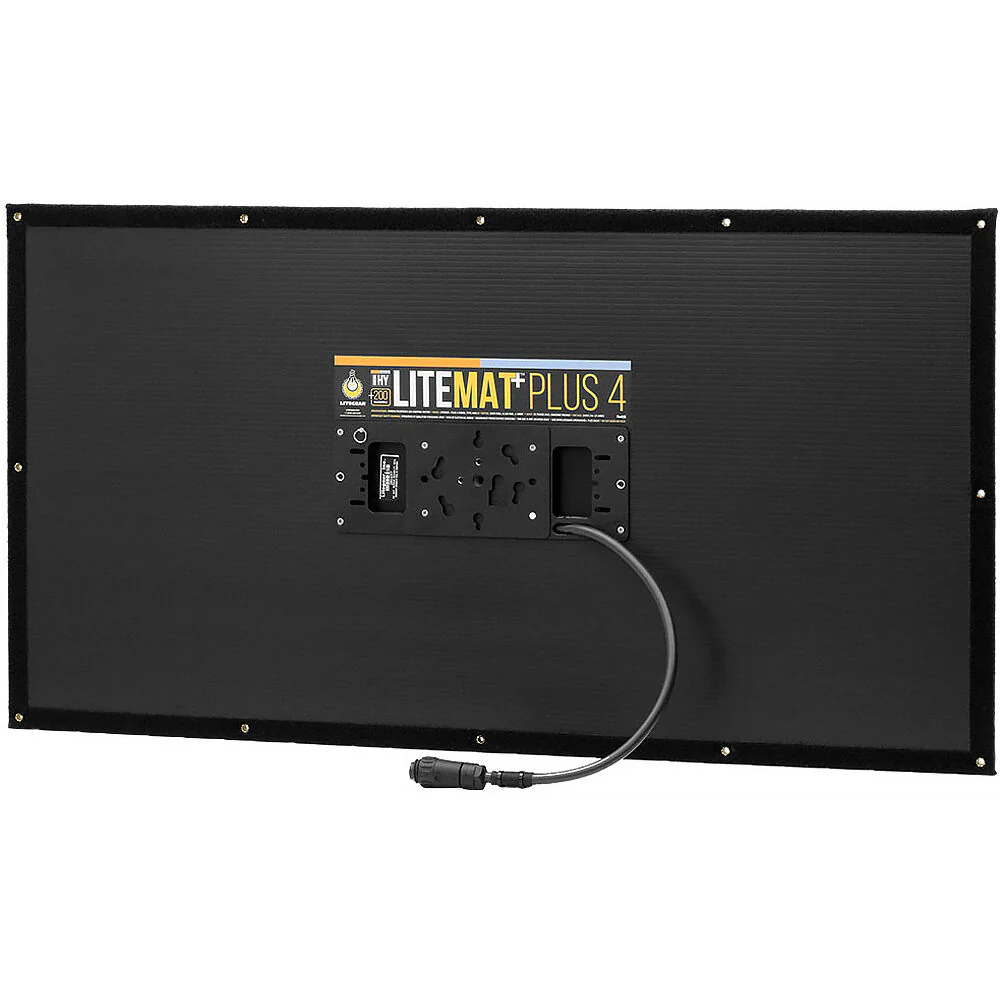

Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)
Litegear LiteMat Plus 4 Overview
The LiteMat Plus 4 Bi-Color LED Light Panel Duo Dimmer Kit from Litegear is a bright, soft, and color-accurate lighting solution for stage, studio, or location lighting setups. With a variable CCT range of 2600 to 6200K, all with CRI/TLCI ratings of 95, this 2304-LED fixture is AC powered and controlled by the included Local/DMX Duo Dimmer. The LiteMat Plus 4 is lightweight and has an extremely thin profile, allowing you to mount the 40 x 21" unit on a separately available stand, hang it overhead, or even use it as a handheld fill light.
CineMitter Chips
The LiteMat Plus 4's LEDs provide even, soft light distribution without requiring diffusion. Exclusive to the Litegear brand, the fixture's CineMitter chips are cinema emitters that allow for color-accurate LED lighting. They provide up to 40% increase in brightness over traditional emitters, making the LiteMat Plus 4 capable of delivering up to 6604 lux at 3.3' (6000K).

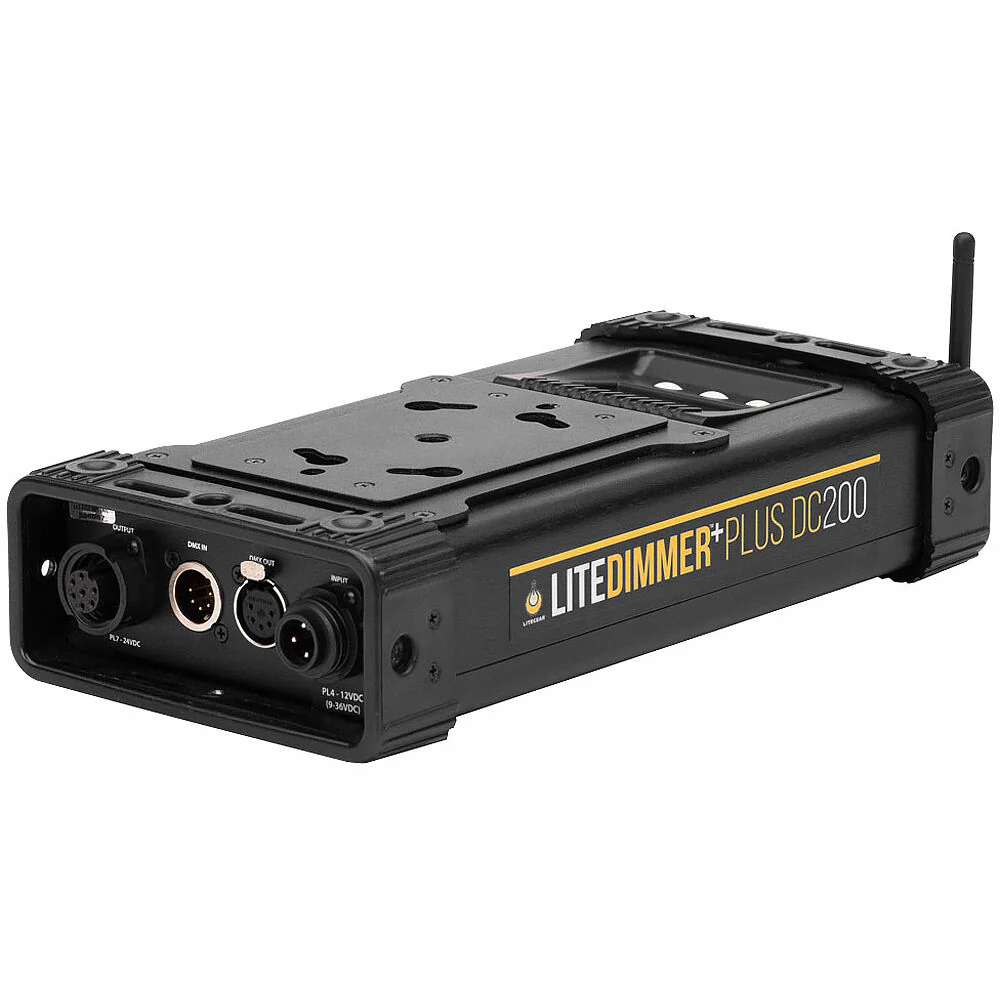

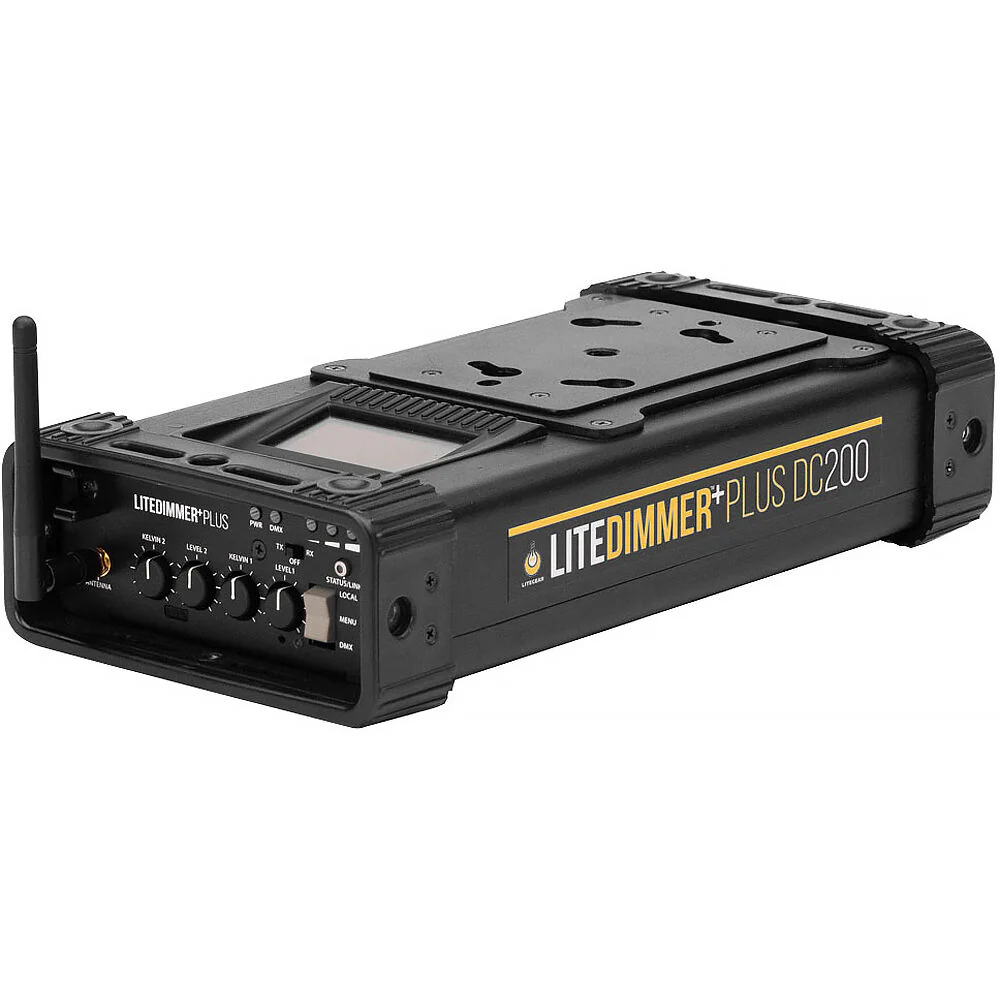

LiteDimmer Plus DC200 Duo
The included LiteDimmer Plus DC200 Duo is a 200W dimmer compatible with the brand's LiteMat Plus, LiteTile Plus, and other Plus products. The dimmer features a large OLED display for onboard control and built-in wireless capability that acts as both a transmitter and a receiver for ultimate wireless control.
- 0 to 100% dimming
- Explore advanced features, including load smoothing, local cueing, double circuit control, and others
- The unit includes 1/4"-20 threads to simply rigging or mounting
- K-mount fittings for attaching separately available accessories
Items Included
- Litegear LiteMat Plus 4 Bi-Color LED Light Panel (Duo Dimmer Kit)
- LiteMat Plus 4 Head
- LiteDimmer Plus Duo

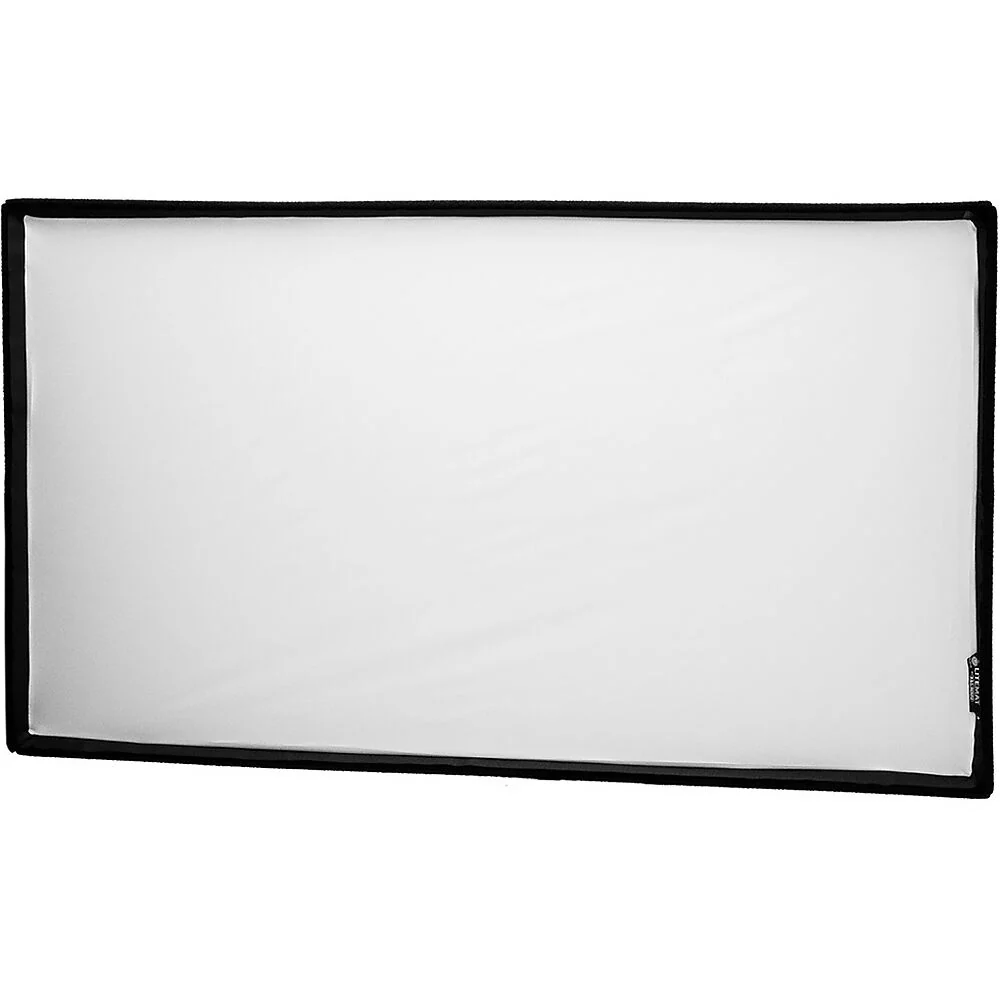

- Full Diffuser
- Half Diffuser
- Quarter Diffuser
- PolySkirt
- Parasquare Louver
- PL7 Cable (12')
- K-Mount

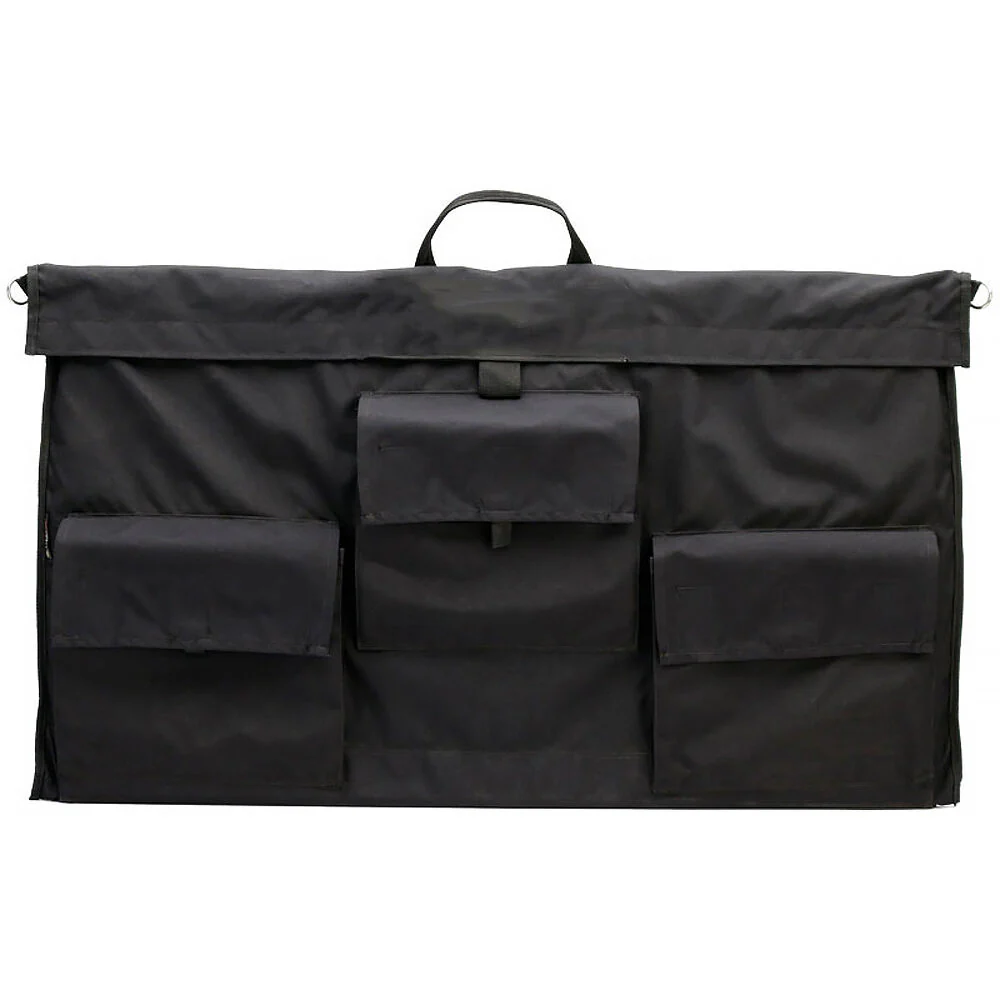

- Carry Bag
- Limited 1-Year Manufacturer Warranty
Additional Resources
Litegear LiteMat Plus 4 Specs
Key Specs
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Skirt
1x Grid/Louver |
| Included Storage Case |
Yes
|
| Photometrics |
2600K:
560 fc / 6030 Lux at 3.3' / 1 m (Unmodified)* 248 fc / 2680 Lux at 4.9' / 1.5 m (Unmodified) 4300K: 662 fc / 7130 Lux at 3.3' / 1 m (Unmodified)* 294 fc / 3169 Lux at 4.9' / 1.5 m (Unmodified) 6000K: 613 fc / 6604 Lux at 3.3' / 1 m (Unmodified)* 272 fc / 2935 Lux at 4.9' / 1.5 m (Unmodified) *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2600 to 6200K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
|
| Dimming |
Built-In Dimmer / Controller Included (Continuous)
� 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Power Source |
AC to DC Adapter (Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included) |
| Battery |
1x Rechargeable (Not Included)
|
| Input Power |
24 VDC
120 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
200 W
|
| Fixture Mounting |
Proprietary
|
Light Fixture
| Item Type |
1x LED Light Panel
|
| Included Light Modifier |
1x Skirt
1x Grid/Louver |
| Included Filters |
Diffusion
|
| Included Storage Case |
Yes
|
| Photometrics |
2600K:
560 fc / 6030 Lux at 3.3' / 1 m (Unmodified)* 248 fc / 2680 Lux at 4.9' / 1.5 m (Unmodified) 4300K: 662 fc / 7130 Lux at 3.3' / 1 m (Unmodified)* 294 fc / 3169 Lux at 4.9' / 1.5 m (Unmodified) 6000K: 613 fc / 6604 Lux at 3.3' / 1 m (Unmodified)* 272 fc / 2935 Lux at 4.9' / 1.5 m (Unmodified) *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2600 to 6200K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 95
|
| Dimming |
Built-In Dimmer / Controller Included (Continuous)
� 0 to 100% |
| Cooling System |
Passive
|
| Built-In Flash |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Power & I/O
| Power Source |
AC to DC Adapter (Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included) |
| Inputs/Outputs |
Light Fixture
1x Built-In Cable with Proprietary Power Input To Power Supply/Controller: 1x Proprietary Power Output 1x Unspecified Power Input |
| Battery |
1x Rechargeable (Not Included)
|
| Input Power |
24 VDC
120 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable |
Yes
|
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
200 W
|
Mounting
| Fixture Mounting |
Proprietary
|
General
| Display |
No
|
| Dimensions |
40 x 21 x 0.9" / 101.6 x 53.3 x 2.3 cm (Fixture)
|
| Weight |
6.2 lb / 2.8 kg (Fixture)
|
Packaging Info
| Package Weight |
38.3 lb
|
| Box Dimensions (LxWxH) |
45 x 26.5 x 10"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
