Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case (Gold Mount)
HomeStore

Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case (Gold Mount)

Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case (Gold Mount)

Lilliput Q28 Overview

  • 1Description
  • 2Customizable Color Temperature
  • 3Natural Gamma Values
  • 4Vast Array of Log Support
  • 5User-Friendly Buttons with Auxiliary Functions
  • 6Powered by Battery for Flexible Mobility

The Gold mount Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case from Lilliput is a professional studio display with 3840 x 2160 screen resolution that can also receive up to DCI 4K60 signals, which will play as letterboxed content within the appropriate aspect ratio. There are four 12G-SDI inputs, one HDMI input with respective loop outputs, and a 12G-SFP port for optional fiber-optic connectivity, all supporting 4K and embedded, multichannel digital audio.

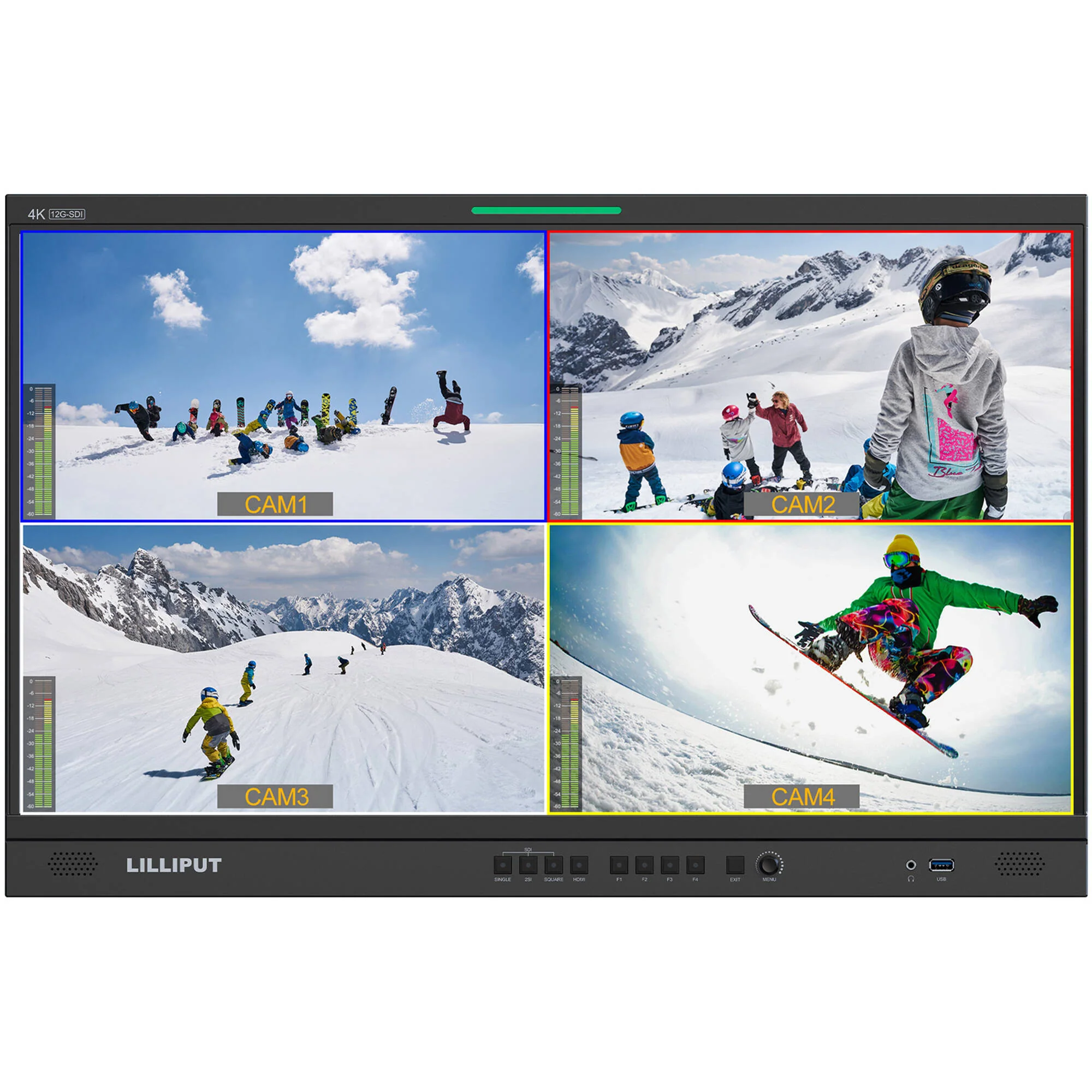

Four different signals can be monitored via the unit's quad-split multiview display, and RS-422, LAN, and GPI connectivity allow for remote control application support. Many diagnostic tools, such as audio vector, histogram, and waveform, are accessible from the feature-rich menu, and HDR and 3D-LUTs are also supported. The front panel of the Q28 has two built-in speakers, a 3.5mm headphone jack, and a tally light for studio broadcast applications integrated into the front panel design. The included carrying case protects your monitor and makes it easy to carry when shooting on location.

Customizable Color Temperature
Five default presets at 3200, 5500, 6500, 7500, and 9300K are easily customized to user needs
Natural Gamma Values
Gamma value adjustment from 1.8 to 2.8 redistributes tonal level closer to how our eyes perceive it
Vast Array of Log Support
Supports Sony Slog2 and SLog3, Canon Log, ARRI Log, Nikon N-Log, JVC J-Log, and more
User-Friendly Buttons with Auxiliary Functions
F1 to F4 user-definable buttons to organize custom auxiliary functions, such as peaking, underscan, and check field as shortcuts
Powered by Battery for Flexible Mobility
A Gold mount battery plate is included to enable you to use your preferred Gold mount battery

In the Box

  • Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case (Gold Mount)
  • Carrying Case
  • 15 VDC Power Adapter
  • VESA Mount Plate
  • 2 x Base Bracket
  • Gold Mount Battery Plate
  • USB Flash Drive
    Table of Contents
    • Description
    • Customizable Color Temperature
    • Natural Gamma Values
    • Vast Array of Log Support
    • User-Friendly Buttons with Auxiliary Functions
    • Powered by Battery for Flexible Mobility

    Lilliput Q28 Specs

    Display
    Display Size 28.00" / 71.1 cm
    Resolution 3840 x 2160
    Aspect Ratio 16:9
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    Touchscreen No
    Maximum Brightness 300 cd/m2
    Contrast Ratio 1000:1
    HDR Compatibility Hybrid Log Gamma
    Pixels Per Inch (ppi) 157 ppi
    Image Controls Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Screen Split - Quarter, Vectorscope, Waveform
    Video I/O 2 x BNC (12G-SDI) Input
    2 x BNC (3G-SDI) Input
    1 x SFP Input
    1 x HDMI 2.0 Input
    2 x BNC (12G-SDI) Loop Output
    2 x BNC (3G-SDI) Loop Output
    1 x HDMI 2.0 Loop Output
    Embedded Audio SDI: 16-Channel
    HDMI: 8-Channel
    Fiber
    Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker 2
    Power I/O 1 x XLR 4-Pin (24 VDC) Input
    Other I/O 1 x RJ45 (RS-422) Input
    1 x RJ45 (RS-422) Output
    1 x RJ45 (LAN) Input
    1 x RJ45 (GPI) Input
    1 x USB-A 2.0 Input
    Media/Memory Card Slot None
    Wi-Fi None
    Format Support
    Video Format Fiber/SDI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080PsF: 30/25/24
    1080i: 60/50
    720p: 60/50/30/25/24
    HDMI
    DCI 4K: 60/50/30/25/24
    UHD 4K: 60/50/30/25/24
    1080p: 60/50/30/25/24
    1080i: 60/50
    720p: 60/50/30/25/24
    Gamma Curve ARRI Log C, Canon Log, HDR-HLG, JVC J-Log, Panasonic V-Log, Rec709, Sony S-Log 2, Sony S-Log 3
    Power
    DC Input Power 12 to 24 VDC
    Battery Type 1 x Gold Mount (Interchangeable Mount)
    Power Consumption 60 W
    Mounting
    Mounting-Hole Pattern 100 x 100 mm, 75 x 75 mm
    Environmental
    Operating Temperature 32 to 72°F / 0 to 40°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    General
    Dimensions 25.1 x 16.3 x 2.1" / 638 x 414.3 x 54.4 mm
    Weight 19.0 lb / 8.6 kg
    Packaging Info
    Package Weight 46.54 lb
    Box Dimensions (LxWxH) 31.9 x 21.4 x 9.9"

    Lilliput Q28 Reviews


    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $1,352.65

    Original: $4,508.84

    -70%
    Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case (Gold Mount)—

    $4,508.84

    $1,352.65
