Lilliput Dual 7" Monitor Rackmount with HDMI/SDI Input/Output (3 RU)
Lilliput RM-7029S Overview

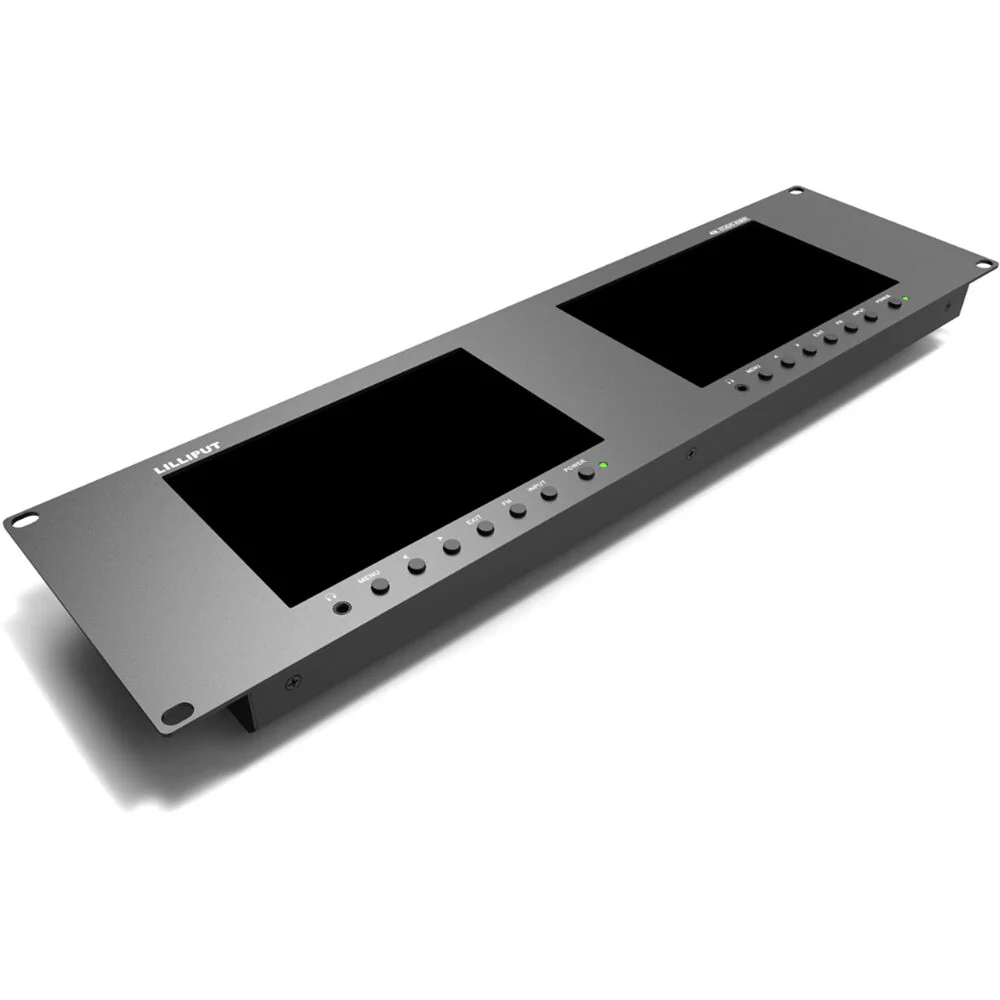

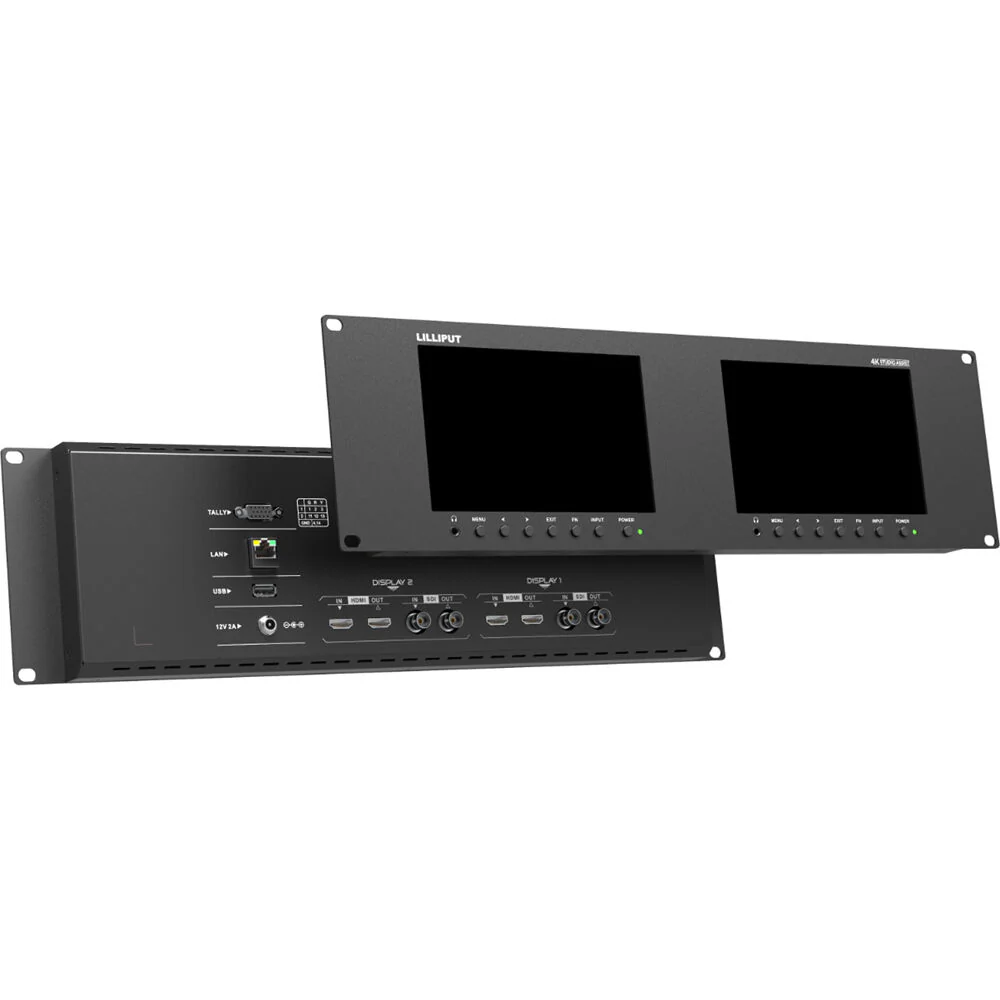

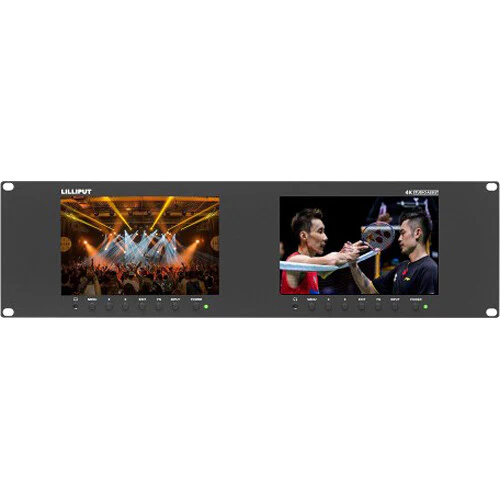

Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for network control, the Dual 7" Monitor Rackmount with HDMI/SDI Input/Output from Lilliput is designed to provide efficient broadcast monitoring of up to two video signals. The display unit has 3G-SDI and HDMI inputs and outputs per display that support input up to 4K via HDMI and up to 1080p via SDI. The displays are 1920 x 1200 IPS panels that support HDR functionality with built-in 3D-LUTs. You can also load your own custom 3D LUTs.

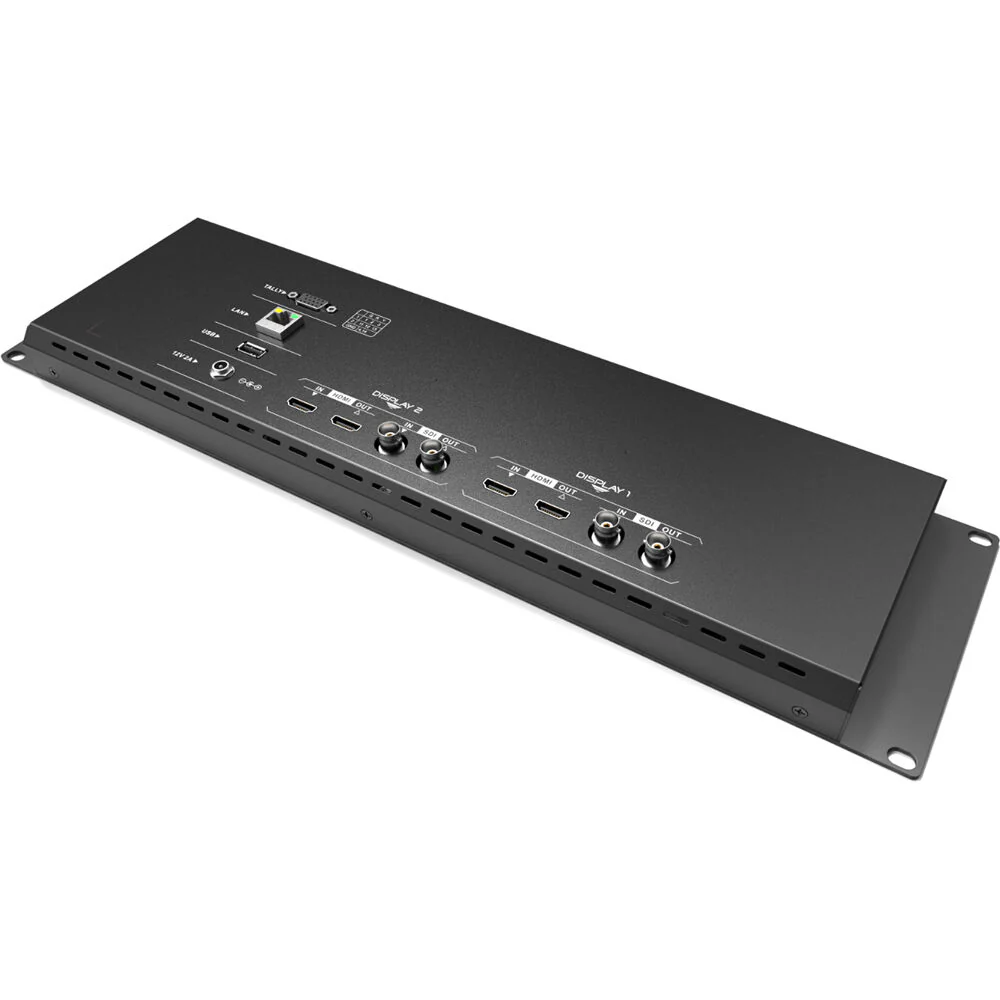

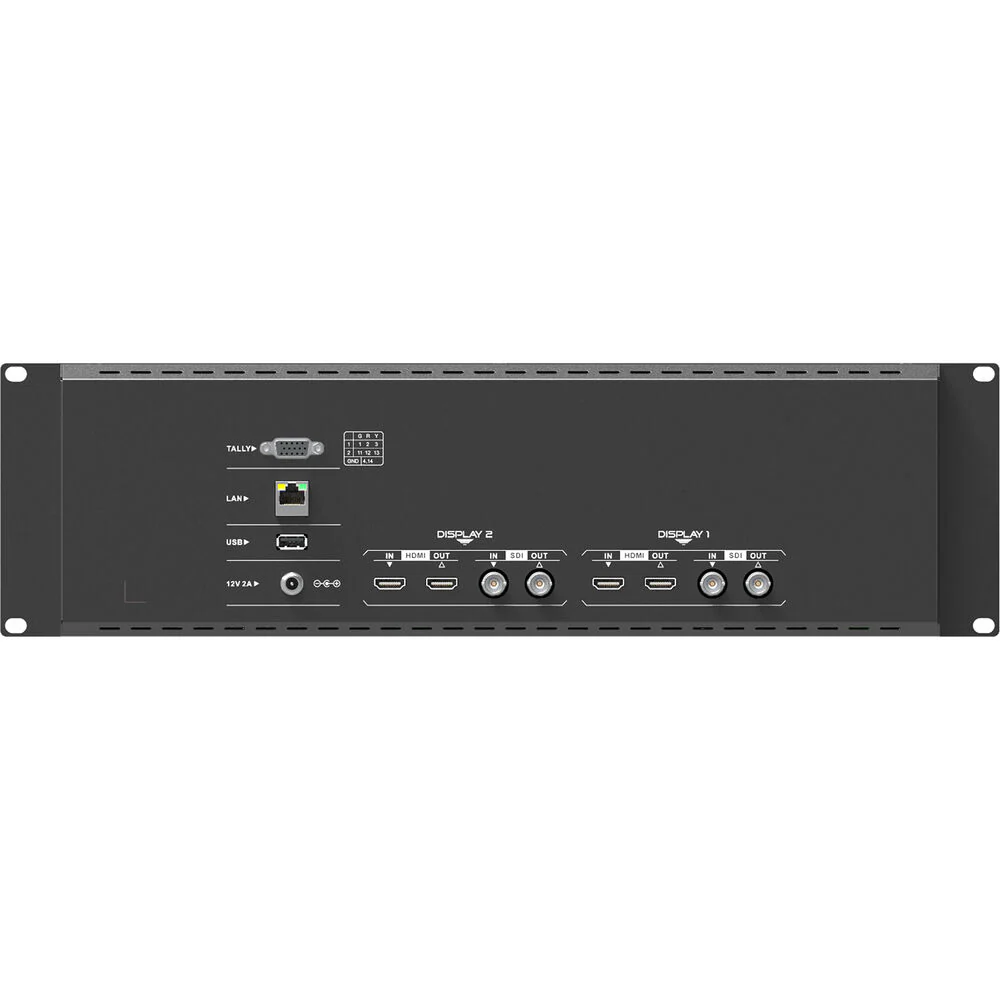

There's a single tally port on the rear and a three-color tally light near each display. Over the LAN port, multiple units can be controlled at the same time via a single control software. A variety of built-in image analysis functions include peaking level meter, peaking, false color, check field, pixel-to-pixel, and more, and function buttons are provided on the front panel. Headphone outputs on each panel allow for audio monitoring.
- Two 7" 1920 x 1200 resolution IPS displays in an ultra-slim 3 RU design
- LAN port for network control of up to multiple units
- 3G-SDI and HDMI input and output
- Up to 1080p60 signal input via 3G-SDI, up to DCI 4K60 via HDMI
- 160° viewing angle
- 400 cd/m² brightness
- 2000:1 contrast ratio
- HDR and 3D LUT support
- Headphone outputs
- Tally port
- Three-color tally light near each display
- Function buttons per display
- Timecode
- 3D LUT
- HDR
- Level meter
- Peaking
- False color
- Histogram
- Exposure
- Check field
- Color bars
- Pixel zoom
- Pixel-to-pixel
- Markers
- Freeze
Items Included
- Lilliput Dual 7" Monitor Rackmount with HDMI/SDI Input/Output (3 RU)
- Power Adapter
- Tally Kit
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lilliput RM-7029S Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
No
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Video I/O |
2x BNC (3G-SDI) Input
2x HDMI 2.0 Input 2x BNC (3G-SDI) Output 2x HDMI 2.0 Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Power Consumption |
16 W
|
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:10
|
| Viewing Angle |
Horizontal: 160°
Vertical: 160° |
| Touchscreen |
No
|
| Maximum Brightness |
400 nits / cd/m2
|
| Contrast Ratio |
2000:1
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
323 ppi
|
| LUT Support |
Yes
|
| Image Controls |
Check Field, False Color, Focus Peaking, Histogram, Pixel Zoom, Screen Markers
|
| Video I/O |
2x BNC (3G-SDI) Input
2x HDMI 2.0 Input 2x BNC (3G-SDI) Output 2x HDMI 2.0 Output |
| Audio I/O |
2x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (2 A / 12 VDC) Input
|
| Other I/O |
1x RJ45 (LAN) Input
1x USB-A (Firmware/LUT Upload) 1x DE-15/DB-15 (Tally) |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Gamma Curve |
ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3, V-Log
|
| Video Standard Compliance |
SMPTE ST-2084
|
| Input Power |
10 to 24 VDC at 1.5 A
|
| Power Consumption |
16 W
|
| Rack Form Factor |
3 RU
|
| Operating Conditions |
32 to 122°F / 0 to 50°C
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C
|
| Material of Construction |
Metal
|
| Dimensions |
18.9 x 5.2 x 1.2" / 480 x 131.6 x 29.3 mm
|
| Weight |
4.9 lb / 2.2 kg
|
| Package Weight |
6.16 lb
|
| Box Dimensions (LxWxH) |
23.8 x 6.9 x 5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
