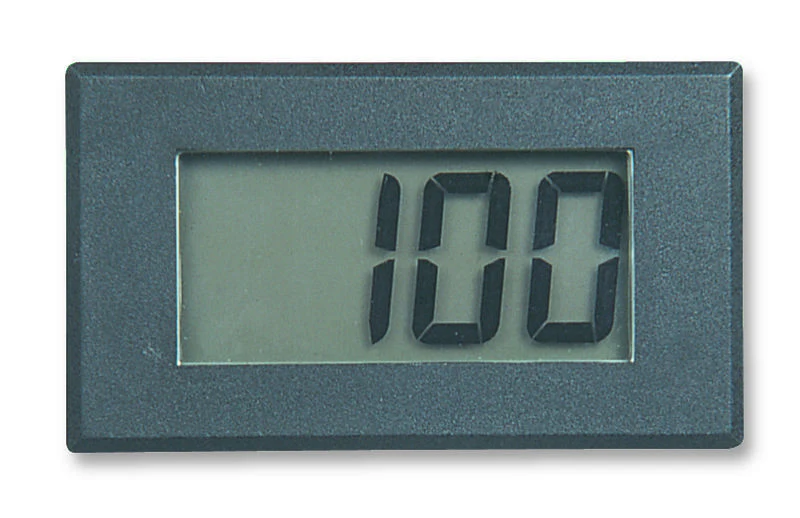

LASCAR DPM942 Digital Panel Meter, , 3-1/2 Digits, Current Loop Indicator, 4mA to 20mA
HomeStore

LASCAR DPM942 Digital Panel Meter, , 3-1/2 Digits, Current Loop Indicator, 4mA to 20mA

LASCAR DPM942 Digital Panel Meter, , 3-1/2 Digits, Current Loop Indicator, 4mA to 20mA

The DPM942 is a Loop Powered Indicator/Meter gives an accurate, zero corrected indication of 4 to 20mA loop current. Calibration is by two 20-turn cermet potentiometers which allow sensitive adjustment of the instrument. Simple screw terminal connections. The meter is housed in a robust carrier, which can be bolted in place or panel mounted using the low profile bezel and clips provided.
  • Programmable decimal points
  • 19mm Digit height
  • Low volt drop
  • -0 to 50°C Operating temperature range

Applications

Power Management, System Monitoring, Automation & Process Control

Product details

Operating Temperature Min 0°C
Operating Temperature Max 50°C
No. of Digits / Alpha 3-1/2
Digit Height 19mm
Panel Cutout Height 40mm
Product Range -
Meter Range 4mA to 20mA
Supply Voltage Min 3.9VDC
Meter Function Current Loop Indicator
Supply Voltage Max 4.8VDC
Panel Cutout Width 72mm

Other details

Brand LASCAR
Part Number DPM942
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

$156.28
