Lascar DPM 500 Digital Panel Meter 3-1/2 Digits DC Voltage 0mV to 200mV

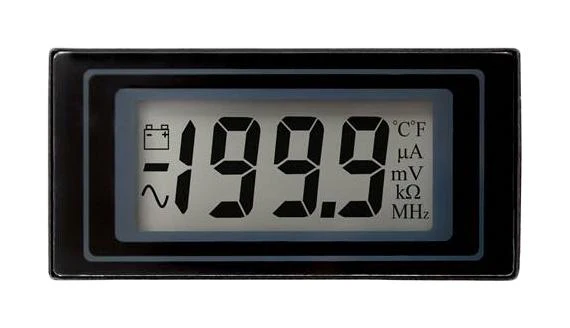

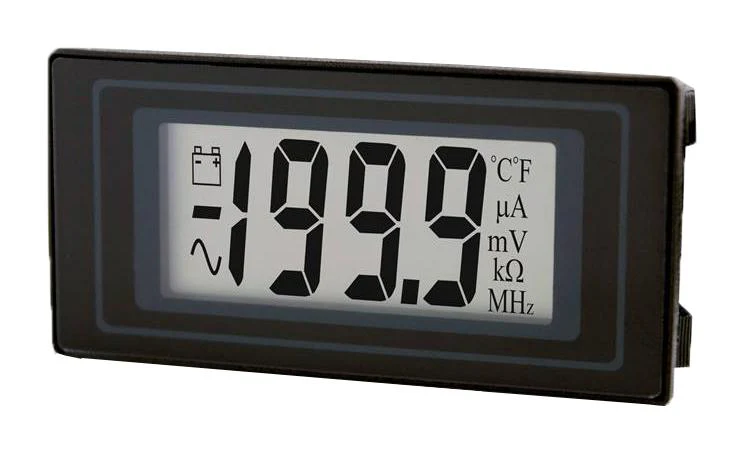

The DPM 500 is a 3-1/2-digit compact panel LCD Voltmeter with 12.5mm digit height, annunciators and a low-profile bezel for mounting. With a 200mVDC full scale reading, auto-zero and auto-polarity this meter plugs directly into a 40-way DIL socket or can be panel mounted using the snap-in bezel and window supplied. It is a popular part and is suitable for new designs. It uses advanced components and construction techniques to provide uniquely compact unit.

• Programmable decimal points
• 3 Samples/sec rate

Applications

Industrial, Clock & Timing, Test & Measurement, Portable Devices, Automotive

Product details

No. of Digits / Alpha	3-1/2
Meter Function	DC Voltage
Meter Range	0mV to 200mV
Digit Height	12.5mm
Panel Cutout Height	27mm
Panel Cutout Width	57mm
Supply Voltage Min	7.5V
Supply Voltage Max	14V
Operating Temperature Min	0?C
Operating Temperature Max	50?C
Product Range	-

Other details

Brand	LASCAR
Part Number	DPM 500
Quantity	Each
Technical Data Sheet EN
