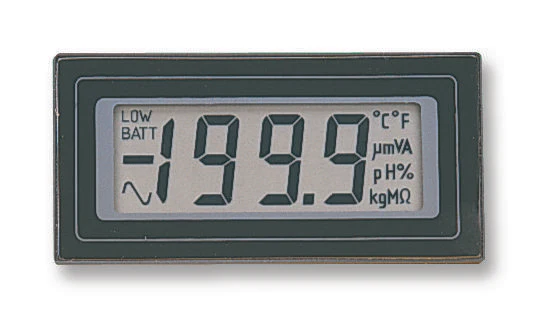

Lascar DPM 2000S Digital Panel Meter LCD Negative Rail 3-1/2 Digits DC Voltage 0mV to 200mV

The DPM 2000S is a 3-1/2-digit compact panel LCD Voltmeter with 15mm digit height and a low-profile bezel for mounting. With a 200mVDC full scale reading, auto-zero, auto-polarity and programmable decimal points, this meter plugs directly into a single-in-line (SIL) socket or can be panel mounted using the snap-in bezel and window supplied. It features a built-in negative rail generator, enabling the meter to measure a signal referenced to its own power supply 0V.

• Output from negative rail generator circuit
• Single rail version
• 3 Samples/sec rate

Applications

Industrial, Clock & Timing, Test & Measurement, Portable Devices

Product details

No. of Digits / Alpha	3-1/2
Meter Function	DC Voltage
Meter Range	0mV to 200mV
Digit Height	15mm
Panel Cutout Height	33mm
Panel Cutout Width	68mm
Supply Voltage Min	3.5V
Supply Voltage Max	6.5V
Operating Temperature Min	0?C
Operating Temperature Max	50?C
Product Range	-

Other details

Brand	LASCAR
Part Number	DPM 2000S
Quantity	Each
Technical Data Sheet EN
