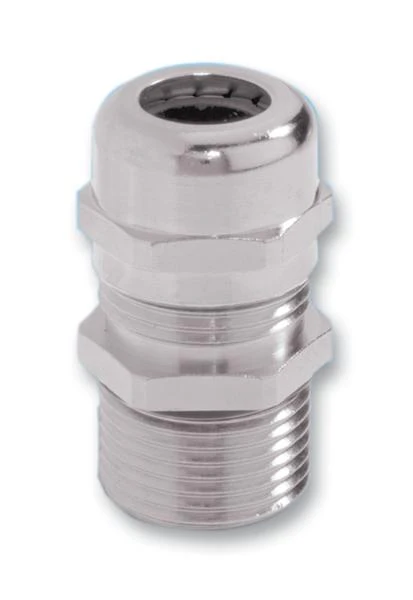

Lapp Kabel 53112250 Cable Gland PG21 11 mm 17.5 Brass Metallic - Nickel Finish
The 53112250 is a SKINTOP® MS-SC PG21 silver Cable Gland made of brass with nickel plated finish, polyamide insert, CR sealing ring and NBR O-ring. This gland is highly conductive, flexible EMC contact for clamping various screen diameters. The SKINTOP® MS-SC screen connection is the ideal gland for all copper-screened cables. The widely variable clamping ranges greatly simplify mounting and allocation and thus permit economic storage. With the SKINTOP® MS-SC the cable's screening braid is not only there for mechanical strength, but also helps achieve an optimum low resistance screen contact. Suitable for cables with and without inner sheath and also continuing the cable screen to another connection. For EMC-compliant earthing of the copper braiding or for cables with copper shaft sheath.
- Centralized, attached, strain-relieved and hermetically sealed cable
- Low-resistance screen contact, optimum EMC protection
- Few operation steps, easy to assemble
- -30 to 100°C Temperature range
Test & Measurement, Automation & Process Control, Communications & Networking, Industrial
Footnotes EMC counter nut, SKINDICHT® SM nut should be used to ensure optimum contact with painted, anodised or powder-coated housings.Product details
| Thread Size - Imperial | PG21 |
| Thread Size - Metric | - |
| Cable Diameter Min | 11mm |
| Cable Diameter Max | 17.5mm |
| Cable Gland Material | Brass |
| Gland Colour | Metallic - Nickel Finish |
| IP / NEMA Rating | IP68 |
| Product Range | - |
Other details
| Brand | LAPP KABEL |
| Part Number | 53112250 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$4.52
Original: $15.08
-70%Lapp Kabel 53112250 Cable Gland PG21 11 mm 17.5 Brass Metallic - Nickel Finish—
$15.08
$4.52Lapp Kabel 53112250 Cable Gland PG21 11 mm 17.5 Brass Metallic - Nickel Finish
The 53112250 is a SKINTOP® MS-SC PG21 silver Cable Gland made of brass with nickel plated finish, polyamide insert, CR sealing ring and NBR O-ring. This gland is highly conductive, flexible EMC contact for clamping various screen diameters. The SKINTOP® MS-SC screen connection is the ideal gland for all copper-screened cables. The widely variable clamping ranges greatly simplify mounting and allocation and thus permit economic storage. With the SKINTOP® MS-SC the cable's screening braid is not only there for mechanical strength, but also helps achieve an optimum low resistance screen contact. Suitable for cables with and without inner sheath and also continuing the cable screen to another connection. For EMC-compliant earthing of the copper braiding or for cables with copper shaft sheath.
- Centralized, attached, strain-relieved and hermetically sealed cable
- Low-resistance screen contact, optimum EMC protection
- Few operation steps, easy to assemble
- -30 to 100°C Temperature range
Test & Measurement, Automation & Process Control, Communications & Networking, Industrial
Footnotes EMC counter nut, SKINDICHT® SM nut should be used to ensure optimum contact with painted, anodised or powder-coated housings.Product details
| Thread Size - Imperial | PG21 |
| Thread Size - Metric | - |
| Cable Diameter Min | 11mm |
| Cable Diameter Max | 17.5mm |
| Cable Gland Material | Brass |
| Gland Colour | Metallic - Nickel Finish |
| IP / NEMA Rating | IP68 |
| Product Range | - |
Other details
| Brand | LAPP KABEL |
| Part Number | 53112250 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
