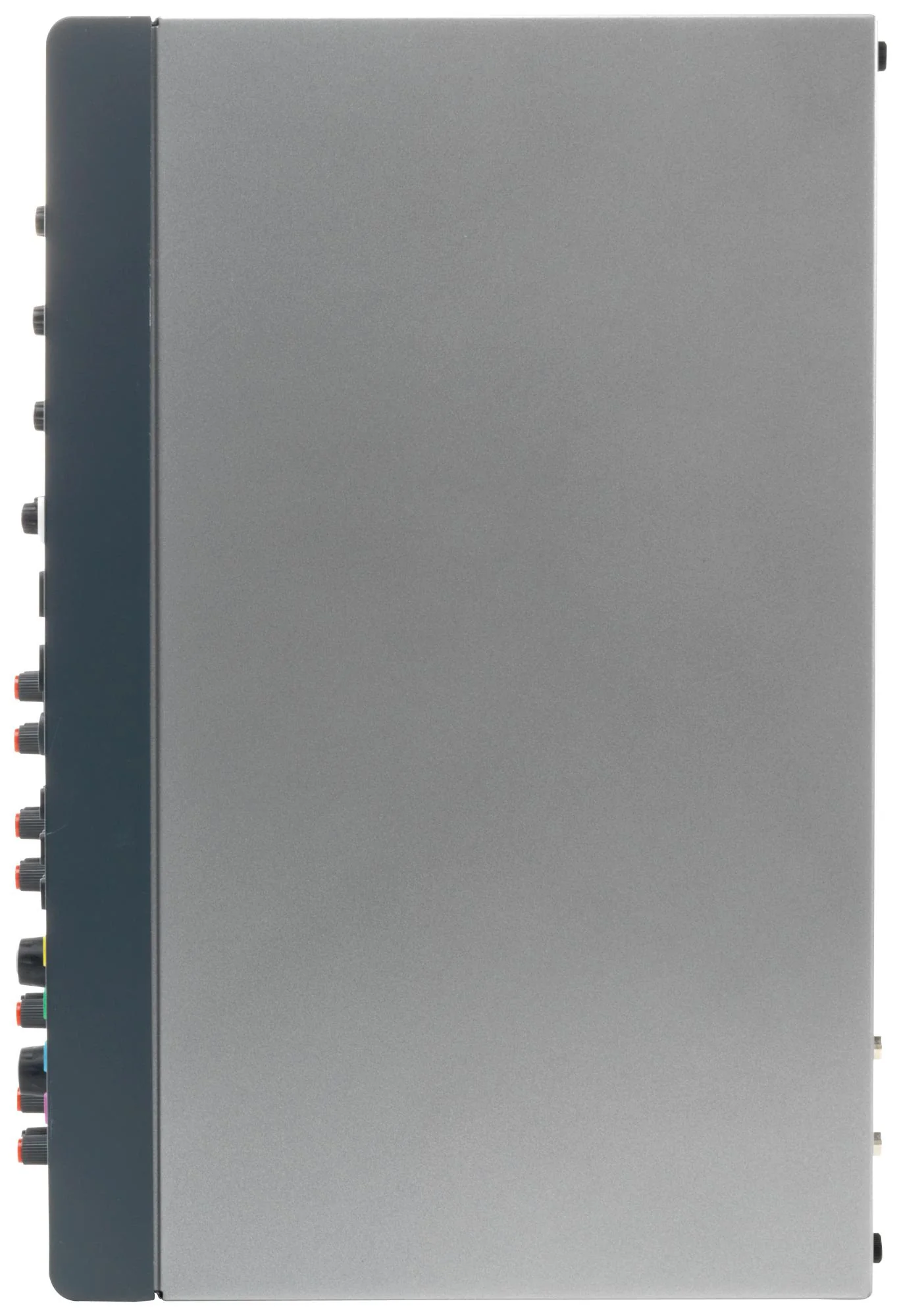

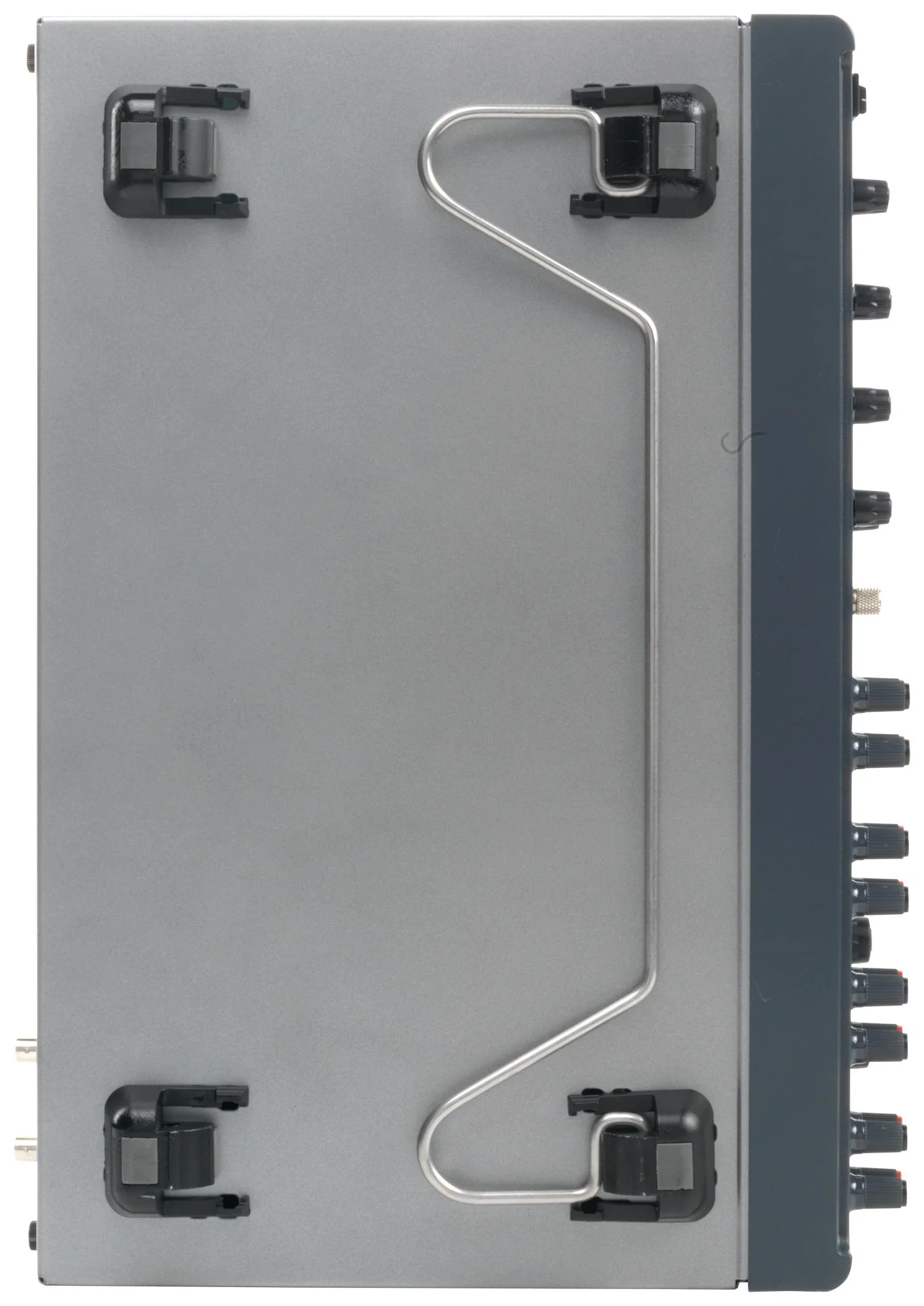

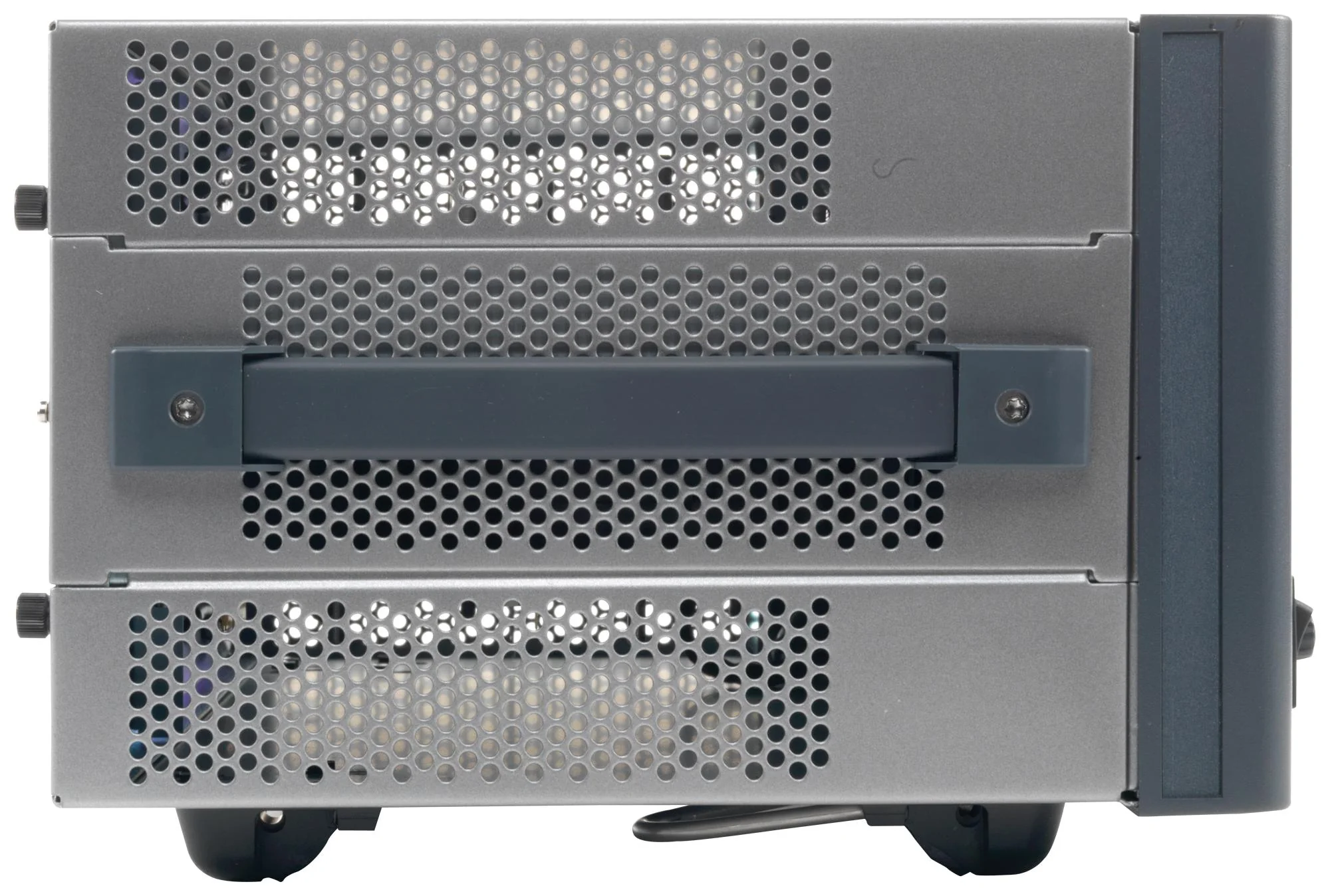

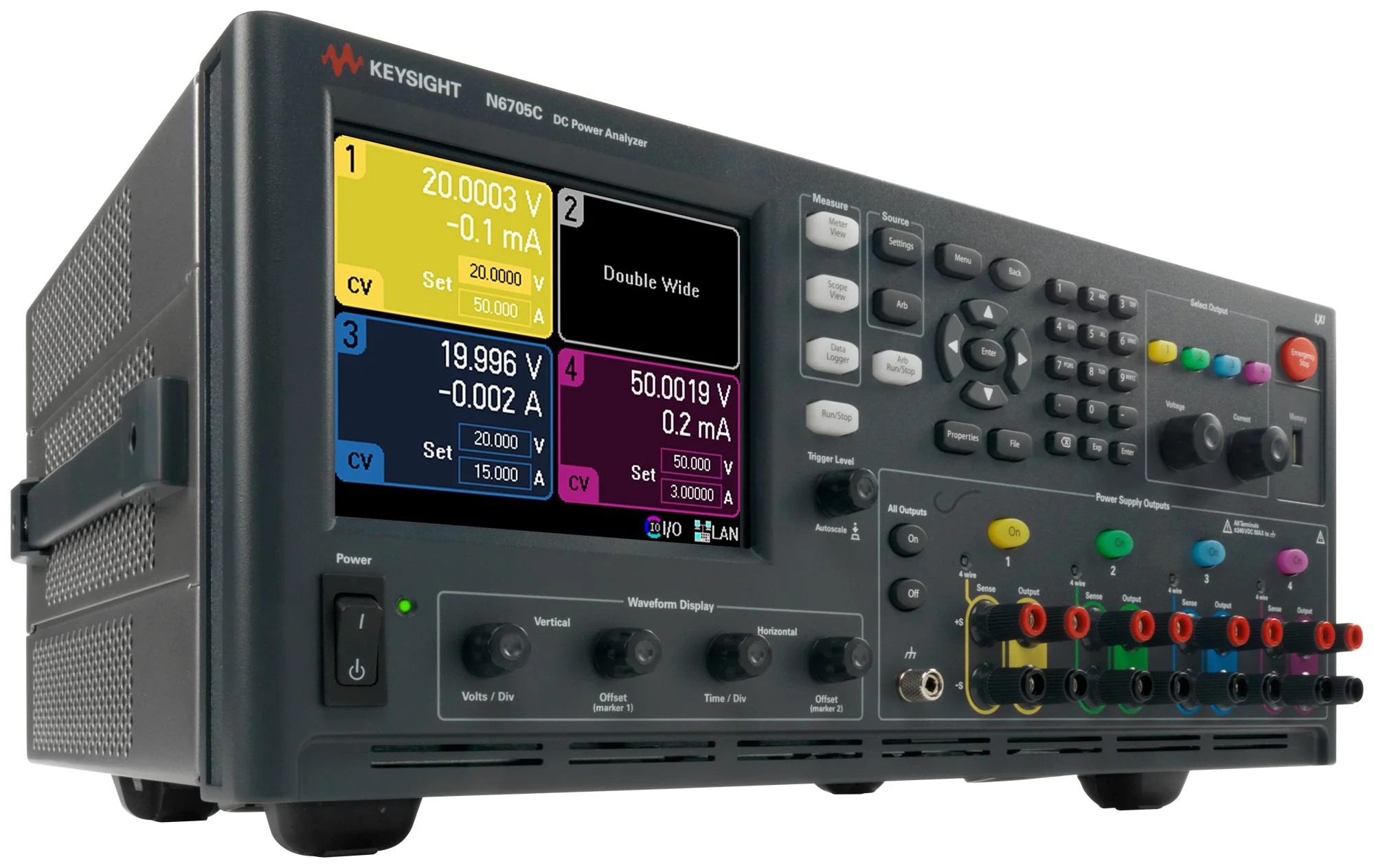

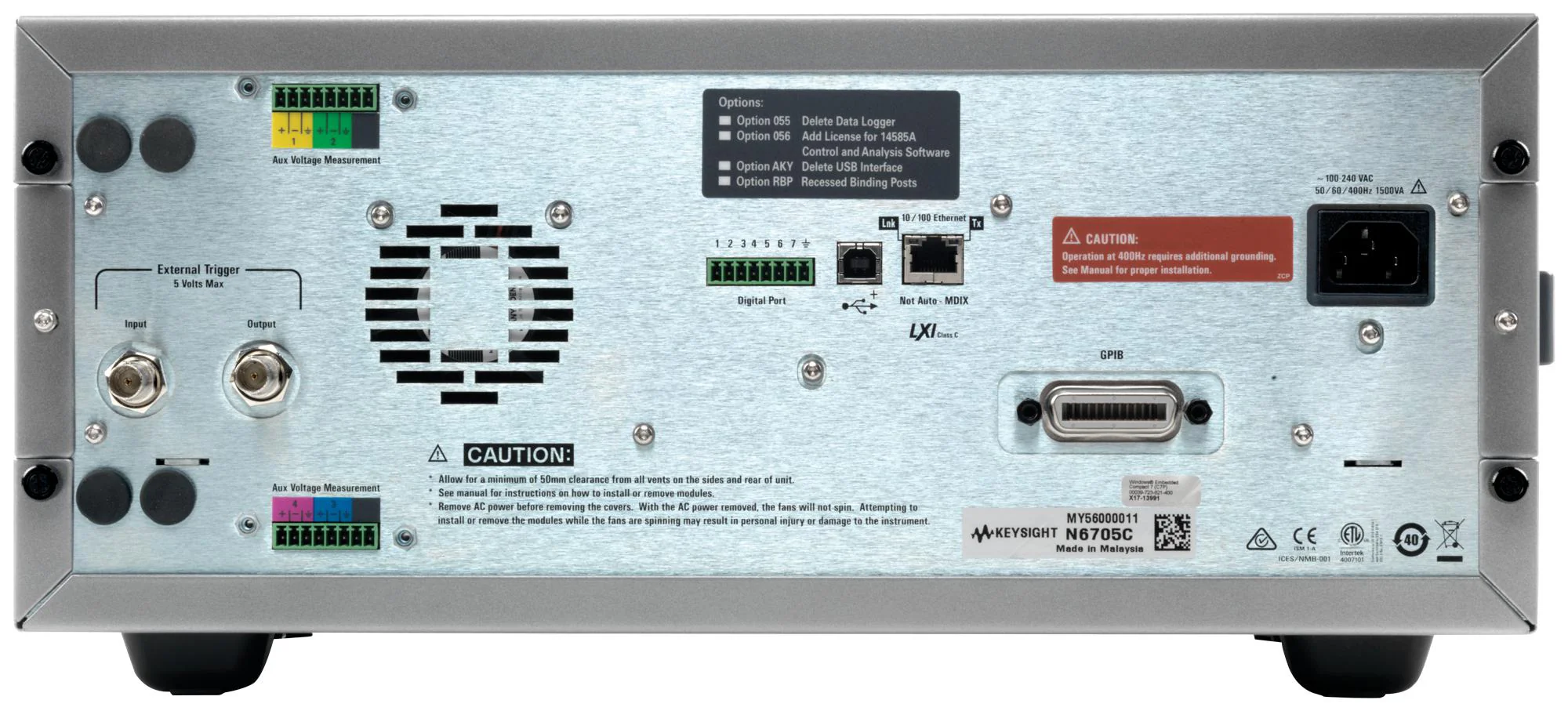

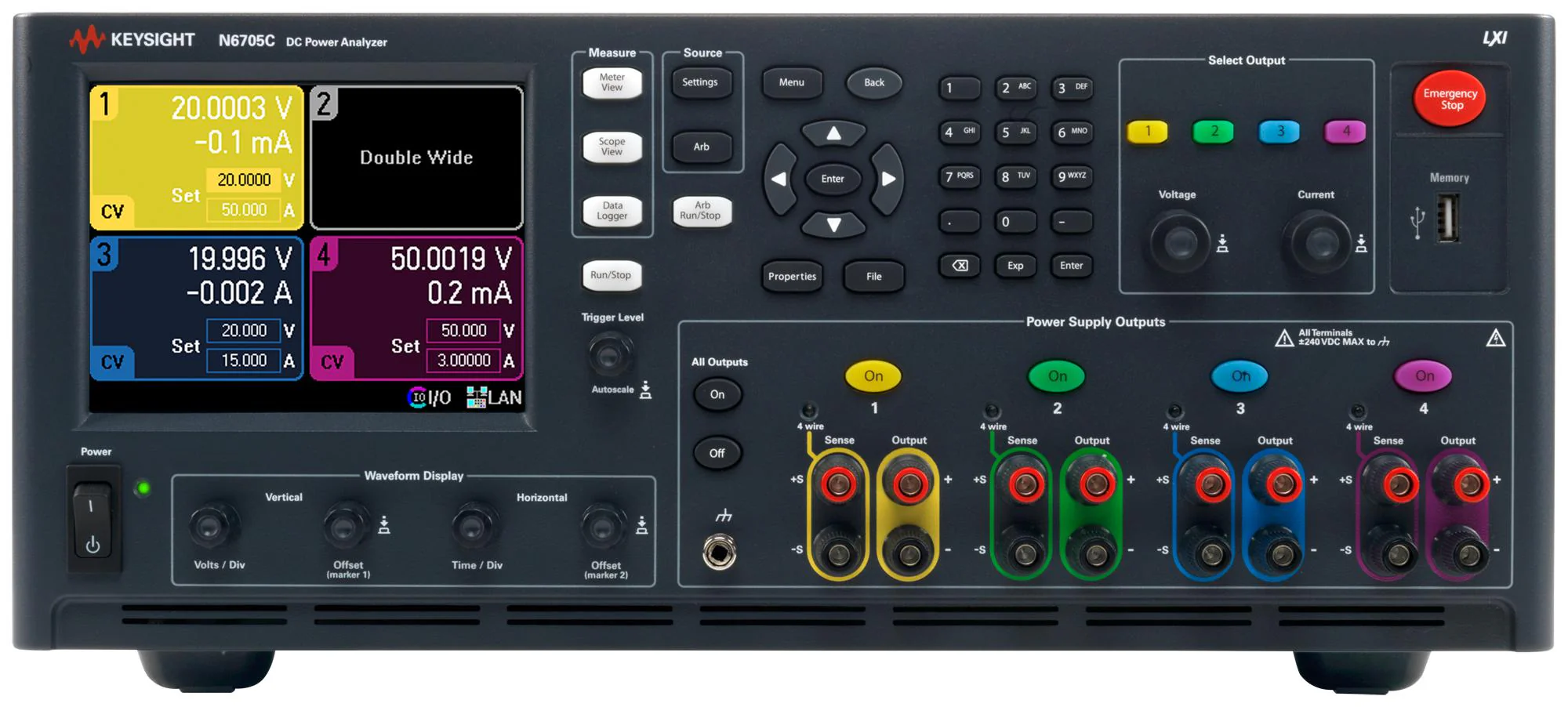

Keysight Technologies N6705C N6705C Power Analyser Current Voltage

The N6705C from Keysight Technologies is a modular, 600W, 4 slots DC power analyzer. The DC power analyzer provides unrivalled productivity gains for sourcing and measuring DC voltage and current into the DUT by integrating up to 4 advanced power supplies with DMM, scope, arb and data logger features. The N6705C eliminates the need to gather multiple pieces of equipment and create complex test setups including transducers (such as current probes and shunts) to measure current into your DUT. It also eliminates need to develop and debug programs to control a collection of instruments and take useful measurements because all functions and measurements are available at the front panel. For even greater control and analysis functions the DC power analyzer can be used with the 14585A control and analysis software.

• Easy to use R&D tool for sourcing and measuring DC voltage and current into the DUT
• Integrates capabilities of up to 4 Power Supplies, DMM, Scope, Arb and Data Logger
• Access all capabilities without programming; using front panel controls or Software
• Intuitive, dedicated physical controls for common functions
• Large colour graphics display for easy viewing of complex data
• Connections and controls colour-coded to the display for fast and error-free setup
• Programmable via standard GPIB, LAN and USB; LXI Compliant
• Promotion: Buy this product and Claim a FREE U1232A DMM: www.keysight.com/find/PowerPromoClaim. Until 31/10/2023

Applications

Test & Measurement, Medical

Contents

A BenchVue software license (BV0003B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Other details

Brand	KEYSIGHT TECHNOLOGIES
Part Number	N6705C
Quantity	Each
Technical Data Sheet EN
One Page Summary EN
Manufacturer Catalogue EN
