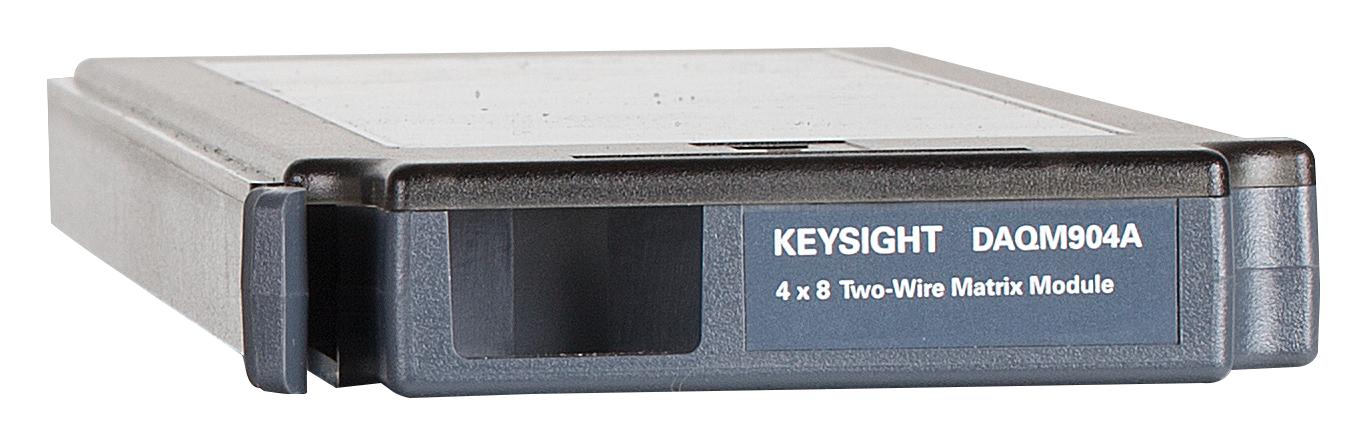

Keysight Technologies DAQM904A Test Accessory 4 x 8 Two-Wire Matrix Switch Module DAQ970A Data Acquisition System

4 x 8 two-wire matrix module for DAQ970A data acquisition system. It gives user the most flexible connection path between device under test and test equipment allowing different instruments to be connected to multiple points on DUT at the same time.

• 32 two-wire cross points
• 300V, 1A switching

Applications

Test & Measurement

Contents

Matrix switch module, Certificate of calibration.

Product details

Accessory Type	4 x 8 Two-Wire Matrix Switch Module
For Use With	Keysight DAQ970A Data Acquisition System
Product Range	-

Other details

Brand	KEYSIGHT TECHNOLOGIES
Part Number	DAQM904A
Quantity	Each
Technical Data Sheet EN
Enhanced Product Overview EN
Application Note EN
Operating Instructions EN
