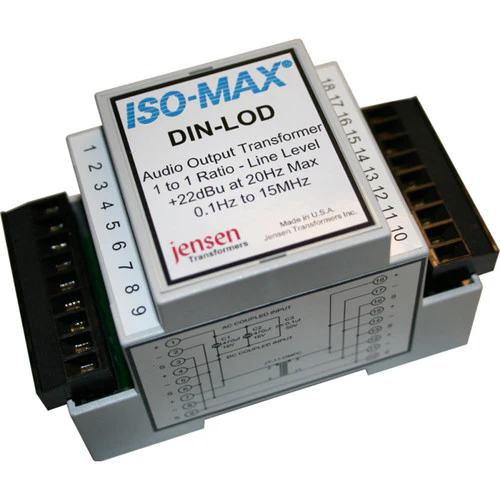

Jensen Transformers Iso-Max DIN-LOD - Single-Channel Line-Output Isolator (Extra-High Output, DIN Rail)
HomeStore

Jensen Transformers Iso-Max DIN-LOD - Single-Channel Line-Output Isolator (Extra-High Output, DIN Rail)

Jensen Transformers Iso-Max DIN-LOD - Single-Channel Line-Output Isolator (Extra-High Output, DIN Rail)

  • Drives Audio Signals Over Long Distance
  • For Balanced and Unbalanced Signals
  • Accepts Input Level Up to 22 dB at 20 Hz
  • Extra-High Output: + 22 dBu
  • For 35mm DIN Rail in NEMA Enclosure
  • Jensen High-Performance Transformer
  • Eliminates Hum & Buzz from Ground Loops
  • Frequency Response of 2 Hz to 100 kHz
  • 110 dB Noise Rejection
  • Passive Design Requires No Power

Jensen Transformers DIN-LO-11DM Overview

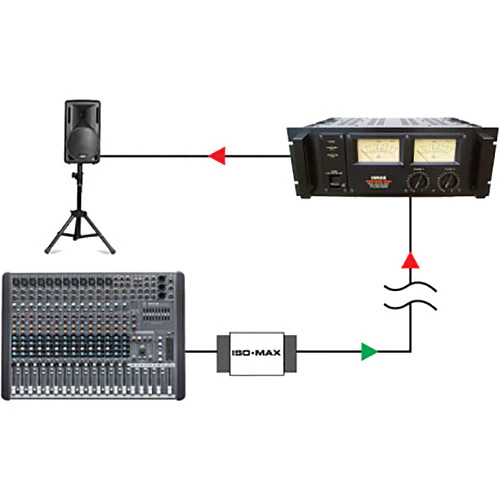

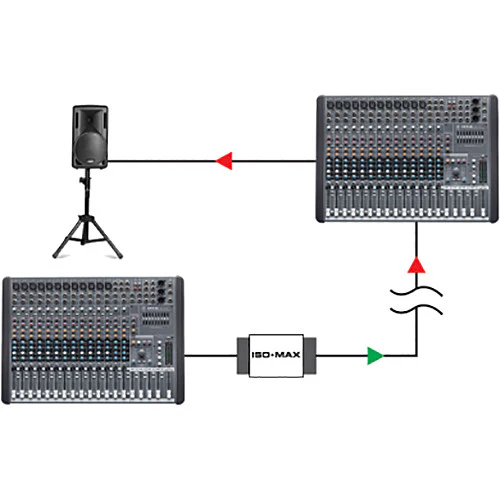

Ideal for use in performance venues, broadcast houses, and broad-scale A/V installations, the Jensen Transformers Iso-Max DIN-LOD is a passive, single-channel line output isolator designed to drive balanced and unbalanced audio signals over long distances, while eliminating hum caused by ground loops. The unit is plug-and-play with no power required, and snaps into place onto a standard 35mm DIN rail, for easy installation in a NEMA electrical enclosure.

The DIN-LOD features a high-performance Jensen transformer with internal Faraday shield that isolates the input from the output to reduce common-mode noise by as much as 110 dB. Furthermore, a choice of connection point options allows you to optimize the grounding circuitry to suit your specific installation needs. The unit is capable of withstanding input levels in excess of +22 dB at 20 Hz, without discernible distortion. It delivers an extra-high output level of +22 dBu with a flat frequency response from 2 Hz to 100 kHz.

Connections to and from the Iso-Max DIN-LOD are made via removable screw-down wire terminals. The module comes equipped with a gray molded assembly made from UL94-VO flame-retardant Noryl.

Key Features
  • Passive, single-channel line output isolator for broadcast, A/V, and performance venue installations
  • Drives balanced and unbalanced signals over long distances
  • Extra-high output at + 22 dBu
  • Provides galvanic isolation between input and output to eliminate hum caused by ground loops
  • Rejects noise by as much as 110 dB
  • Snaps into place onto a standard 35mm DIN rail for easy installation in a NEMA electrical enclosure
  • Jensen high-performance transformer
  • Flat frequency response from 2 Hz to 100 kHz
  • Handles signals in excess of +22 dB at 20 Hz without discernible distortion, with almost zero insertion loss
  • Choice of connection point options allows you to optimize grounding scheme to suit your installation
  • Connections to and from the module are made via removable screw-down wire terminals
  • Made from gray molded assembly made from UL94-VO flame retardant Noryl
  • Plug-and-play, easy to use, no power required

UPC: 676101041763

Jensen Transformers DIN-LO-11DM Specs

Type
Passive, line output isolator
Channels
1
Format
For standard 35 mm DIN rail in National Electrical Manufacturers Association (NEMA) electrical enclosure
Connectors
Removable, screw-down wire terminals
Frequency Response
2 Hz to 100 kHz
Input Impedance
20 Hz to 20 kHz, 0 dBu, test circuit 3
Minimum: 670 Ohms
Typical: 680 Ohms
Maximum: 690 Ohms
Voltage Gain
1 kHz, 0 dBu, test circuit 1, Rs = 0 Ohm
Minimum: -1.2 dB
Typical: -1.1 dB
Maximum: -0.9 dB
Magnitude Response
20 Hz, 0 dBu, test circuit 1, ref 1 kHz, Rs = 0 Ohm
Minimum: -0.10 dB
Typical: -0.02 dB
Maximum: ± 0.00 dB

20 kHz, 0 dBu, test circuit 1, ref 1 kHz, Rs = 0 Ohm
Minimum: -0.10 dB
Typical: ± 0.00 dB
Maximum: +0.10 dB
Deviation from Linear Phase
20 Hz to 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ohm
Typical: +0.3 / -0°
Maximum: ± 1.0°
Bandwidth
LF -3 dB re 1 kHz, test circuit 1, Rs = 0 Ohm
Typical: 0.10 Hz

HF -3 dB re 1 kHz, test circuit 1, Rs = 0 Ohm
Typical: 15 MHz
Distortion (THD)
1 kHz, +4 dBu, test circuit 1, Rs = 0 Ohm
Typical: < 0.001%

20 Hz, +4 dBu, test circuit 1, Rs = 0 Ohm
Typical: 0.004%
Maximum: 0.03%
Maximum Output Level
At 20 Hz, 1% THD, test circuit 1, Rs = 0 Ohm
Minimum: +20 dBu
Typical: +22 dBu
Common Mode Rejection Ratio
60 Hz, test circuit 2
Typical: 110 dB

3 kHz, test circuit 2
Minimum: 75 dB
Typical: 85 dB
Output Impedance
20 Hz to 20 kHz, 0 dBu, test circuit 4
Typical: 80 Ohms
Turn Ratio
Minimum: 0.999:1
Typical: 1.000:1
Maximum: 1.001:1
Optimal Cable Length
Input
Typical: 164' / 50 m
Maximum: 656' / 200 m

Output
No limitations
Temperature Range
32 to 158°F / 0 to 70°C (operation or storage)
Voltage Difference
Winding to Winding
Minimum: 250 V RMS (60 Hz, 1 minute test duration)

Winding to Frame
Minimum: 500 V RMS (60 Hz, 1 minute test duration)
Construction
Gray, molded assembly made from UL94-VO flame-retardant Noryl
Dimensions
3.85 x 2.06 x 2.3" / 97.8 x 52.3 x 58.4 mm
Packaging Info
Package Weight
1.02 lb
Box Dimensions (LxWxH)
4.7 x 3.4 x 3.4"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

$305.62
