JBL MA510 5.2-Channel A/V Receiver (Black)
JBL MA510 Overview
Stream music from all corners of your home through the versatile and sleek black MA510 5.2-Channel A/V Receiver from JBL. In addition to connecting your smart TV, gaming console, and other components to the four HDMI inputs, you can stream audio through the MA510 using Bluetooth, dual-band Wi-Fi, or over a wired gigabit Ethernet connection. Over your network, you can access your personal digital library, Apple Airplay 2, or Google Chromecast. When it comes to video, you're covered for today and what's ahead with support for up to 8K60 resolution. Images that will look realistic and cinematic thanks to HDR10+ or Dolby Vision. As effective as the MA510 is, it really shines when you add a full 5.2-channel speaker system to truly immerse yourself in your favorite movies, games, and music.
- Bluetooth and Wi-Fi antenna included for improved reception
- Enhanced gaming features with support for VRR, ALLM, QFT & HFR (4K120)
- EZ Set EQ room equalization optimizes sound quality
- Low-noise Class-D amplification
- Dual subwoofer outputs
- MP3 and MPEG-4 AAC playback
Items Included
- JBL MA510 5.2-Channel A/V Receiver (Black)

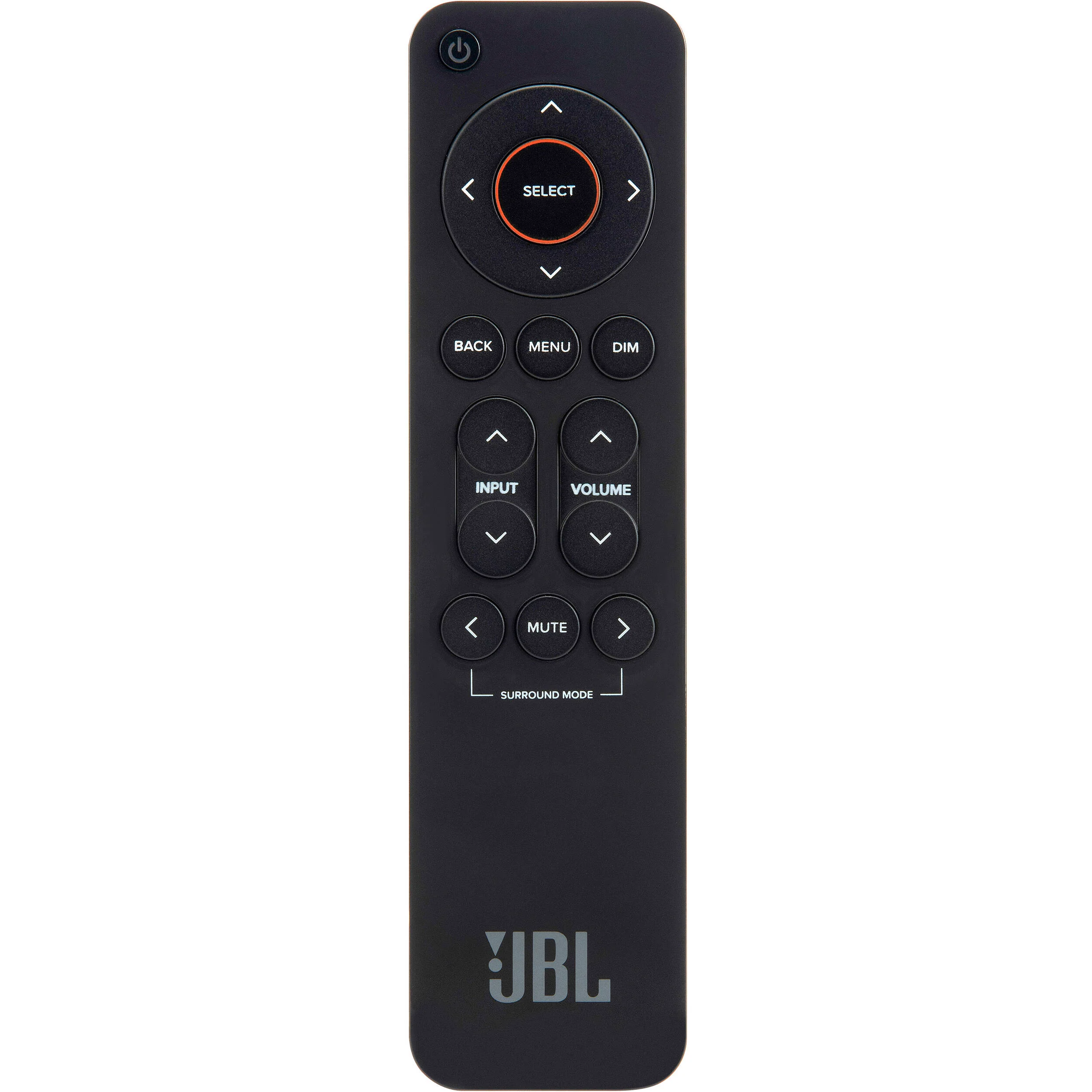

- Remote Control with Batteries
- Bluetooth Antenna
- Wi-Fi Antenna
- Power Cord
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
JBL MA510 Specs
| Channels |
5.2
|
| Power Output per Channel |
2-Channel Driven:
75 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 75 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 100 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) |
| HDR Support |
Yes, HDR10+/Dolby Vision
|
| Pass-Through Support |
Not Specified by Manufacturer
|
| Upscaling |
No
|
| Rear A/V Inputs |
4x HDMI 2.1
1x Optical TOSLINK 1x Digital Coaxial 2x Stereo RCA |
| Front I/O |
No
|
| Wi-Fi |
Yes
|
| Bluetooth |
4.1 LE
|
| Channels |
5.2
|
| Amplifier Class |
Class-D
|
| Power Output per Channel |
2-Channel Driven:
75 W at 8 Ohms / 20 Hz to 20 kHz / 1% THD 75 W at 8 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) 100 W at 4 Ohms / 20 Hz to 20 kHz / 0.5% THD (RMS) |
| Auro 3D Support |
No
|
| Supported File Formats |
AAC, MP3
|
| HDR Support |
Yes, HDR10+/Dolby Vision
|
| Pass-Through Support |
Not Specified by Manufacturer
|
| Upscaling |
No
|
| GUI |
Yes
|

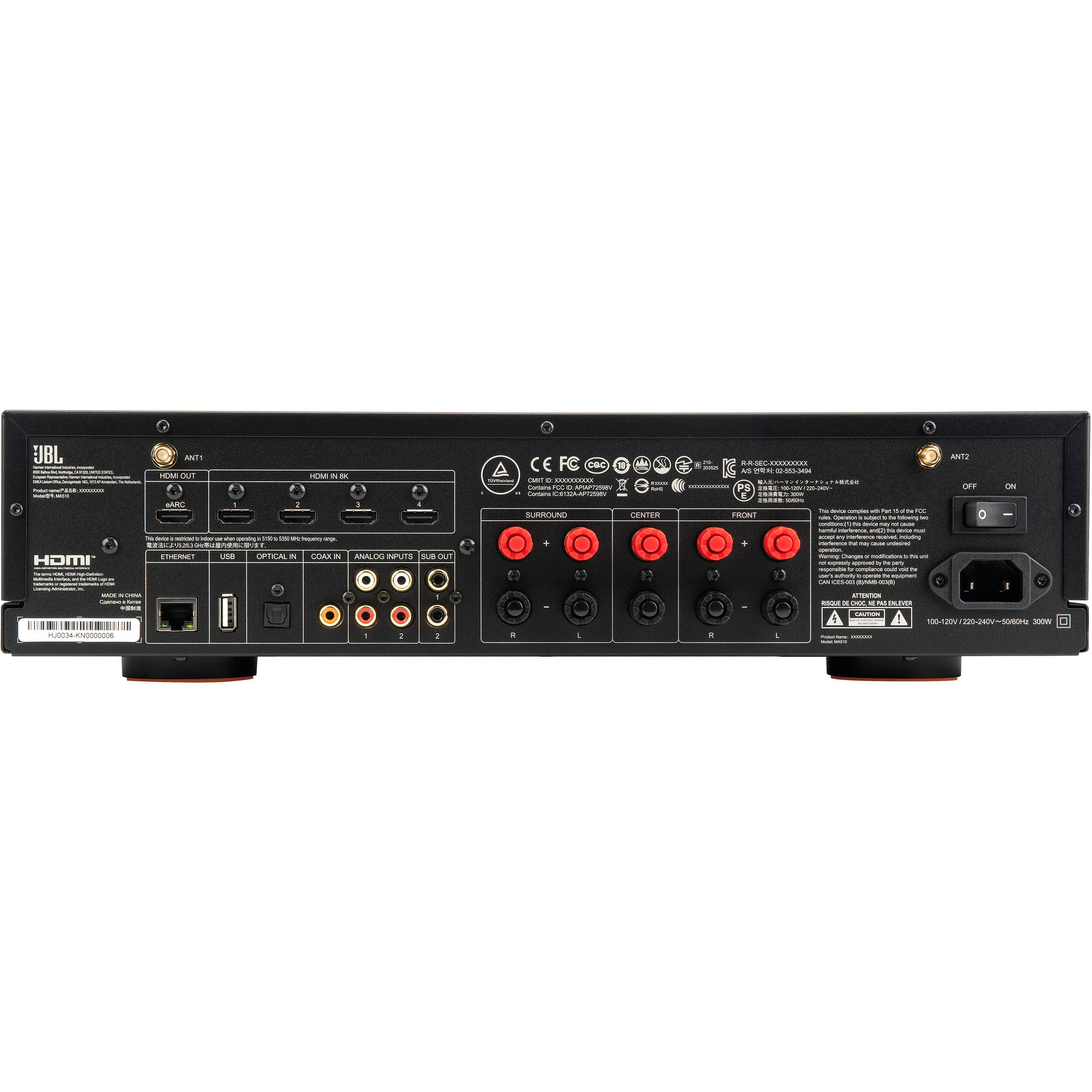

| Rear A/V Inputs |
4x HDMI 2.1
1x Optical TOSLINK 1x Digital Coaxial 2x Stereo RCA |
| Rear A/V Outputs |
1x HDMI 2.1
2x RCA Subwoofer |
| Front I/O |
No
|

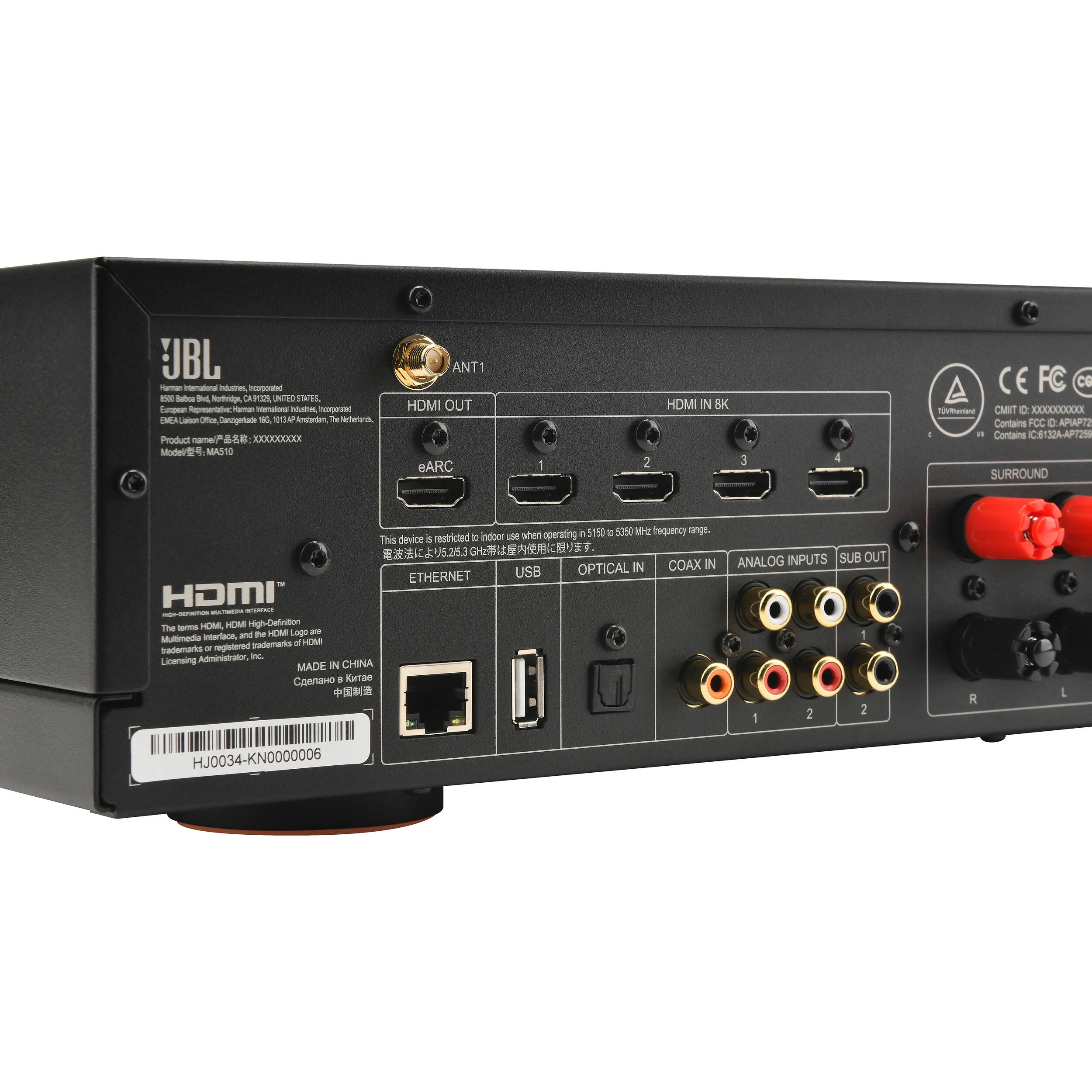

| Other Rear I/O |
1x USB-A
1x RJ45 (Ethernet) Input/Output |

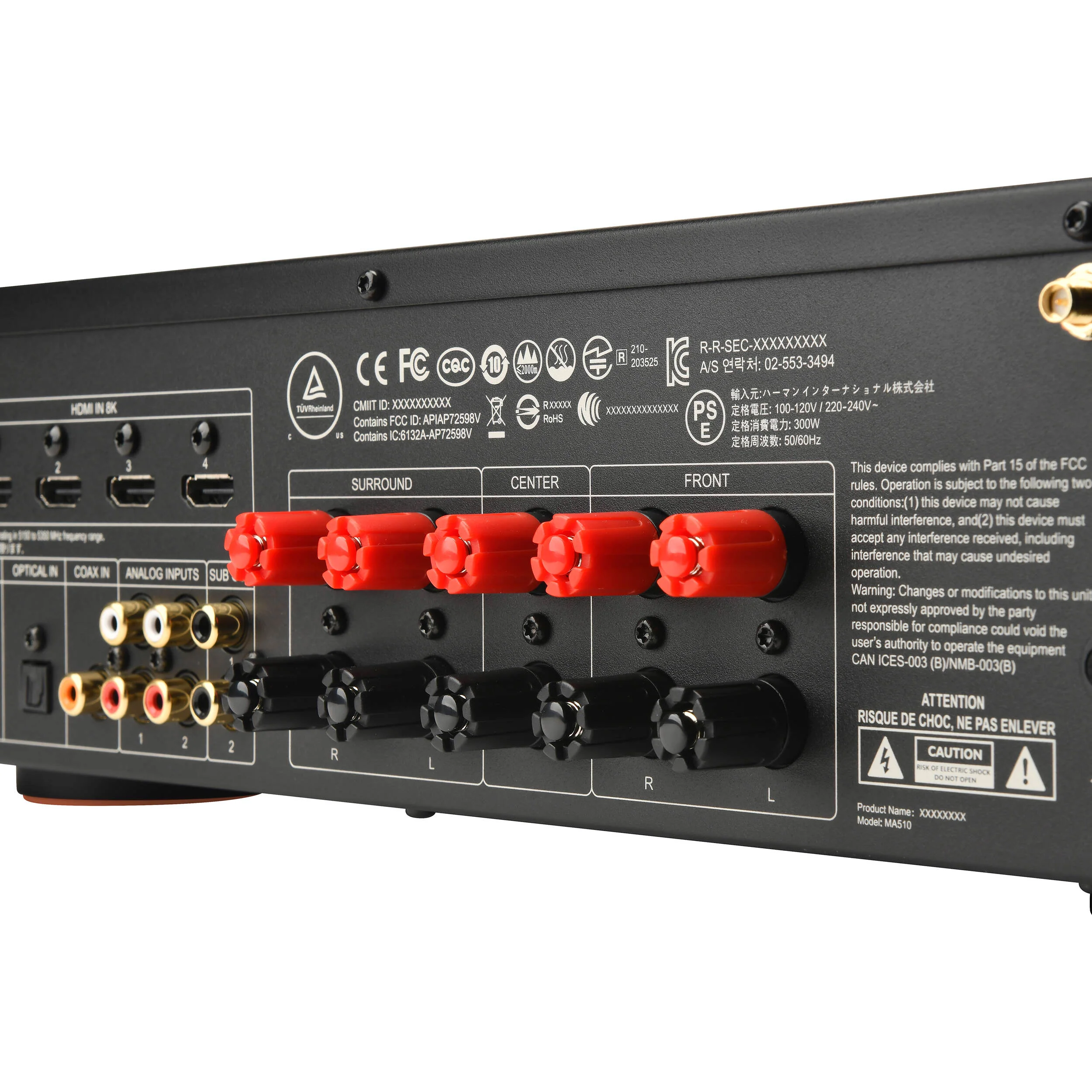

| Speaker I/O |
5x 5-Way Binding Post Pairs (Front, Center, Rear Surround)
|
| HDCP Support |
Yes, Version 2.3
|
| HDMI Compression Modes |
Not Specified by Manufacturer
|
| Audio Return Channel (ARC) |
eARC
|
| HDMI CEC |
Yes
|
| Wi-Fi |
Yes
|
| Bluetooth |
4.1 LE
|
| Mobile App Compatible |
No
|
| Input Power |
110 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Maximum: 300 W
Standby: 0.5 W |
| Dimensions (W x H x D) |
17.0 x 4.3 x 13.7" / 432.0 x 109.2 x 347.6 mm
|
| Weight |
11.9 lb / 5.4 kg
|
| Package Weight |
17.46 lb
|
| Box Dimensions (LxWxH) |
20.8 x 17.1 x 9.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
