iVANKY 12-in-1 USB-C Docking Station
iVANKY VCC06 Overview
Enhance your workflow by connecting the iVANKY 12-in-1 USB-C Docking Station to your compatible laptop. Connecting this dock to your USB-C port using the integrated cable allows you to connect up to two external monitors and a variety of USB peripherals.

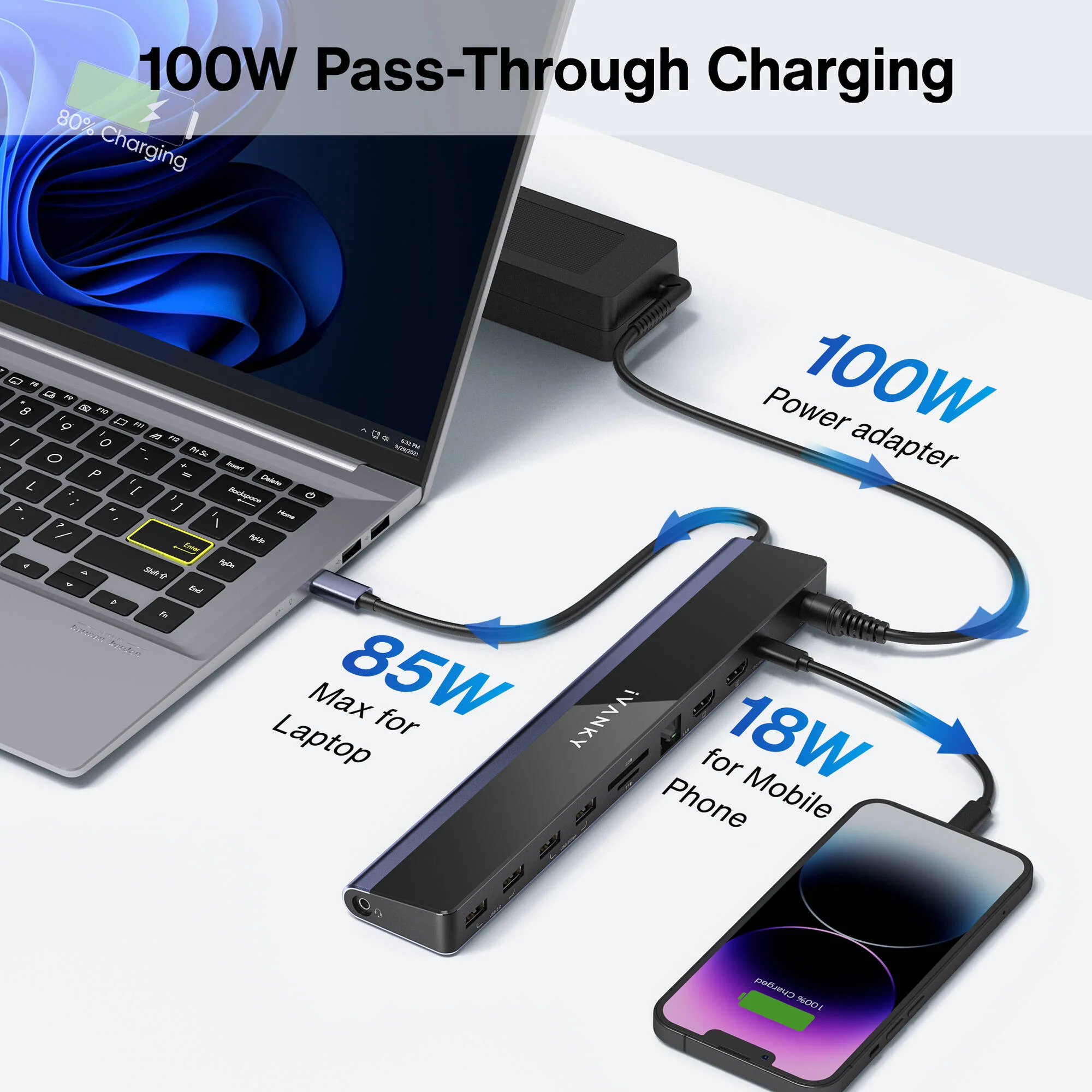

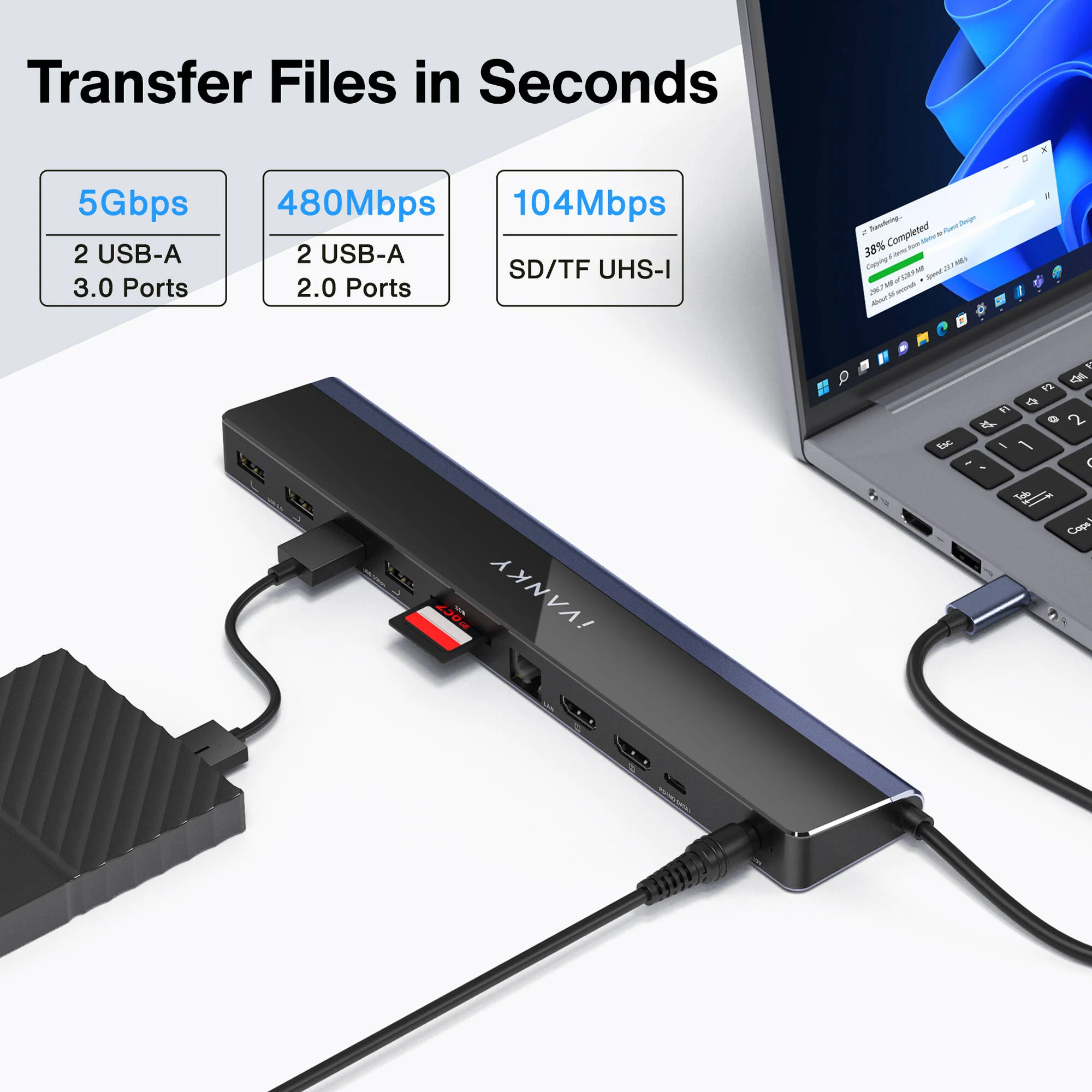

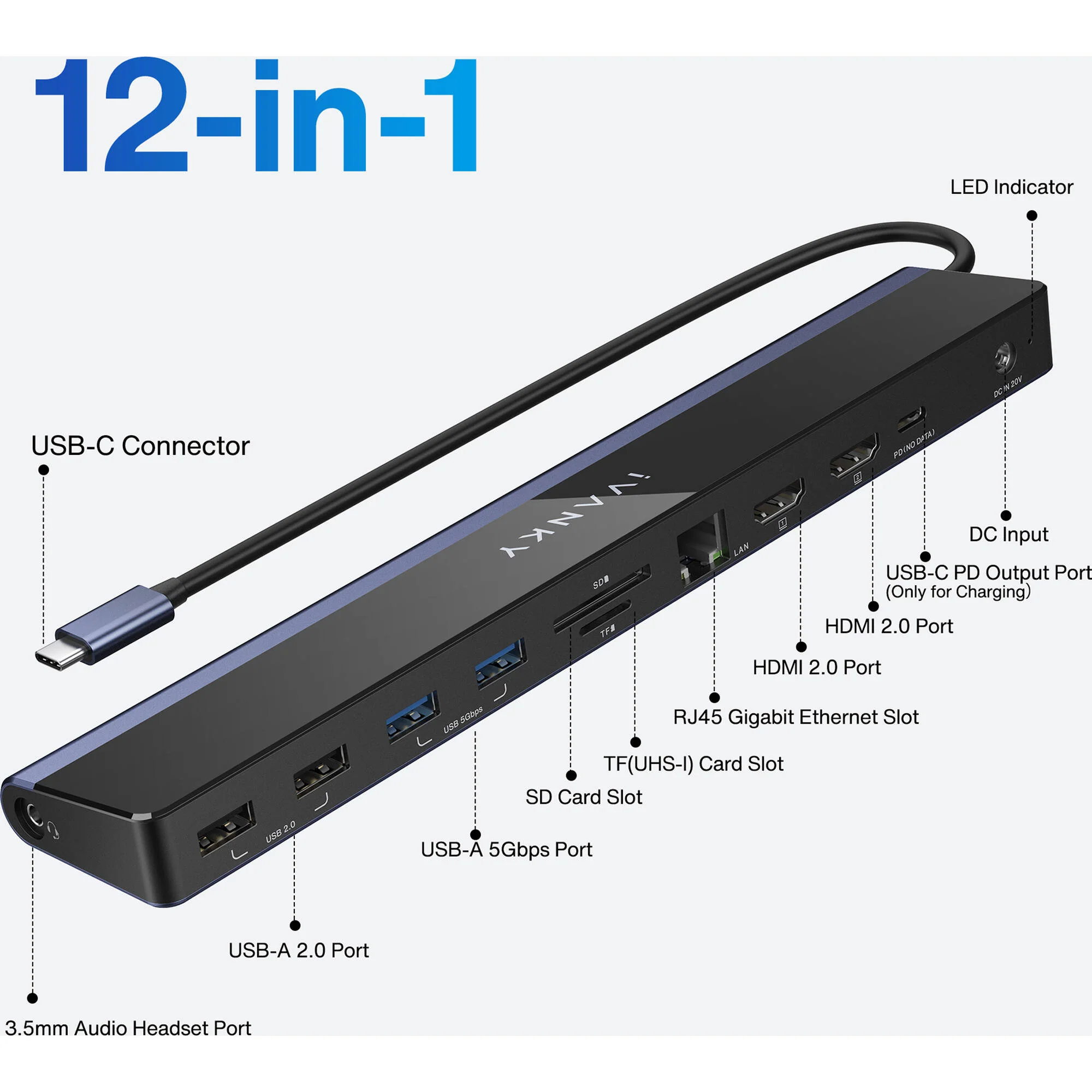

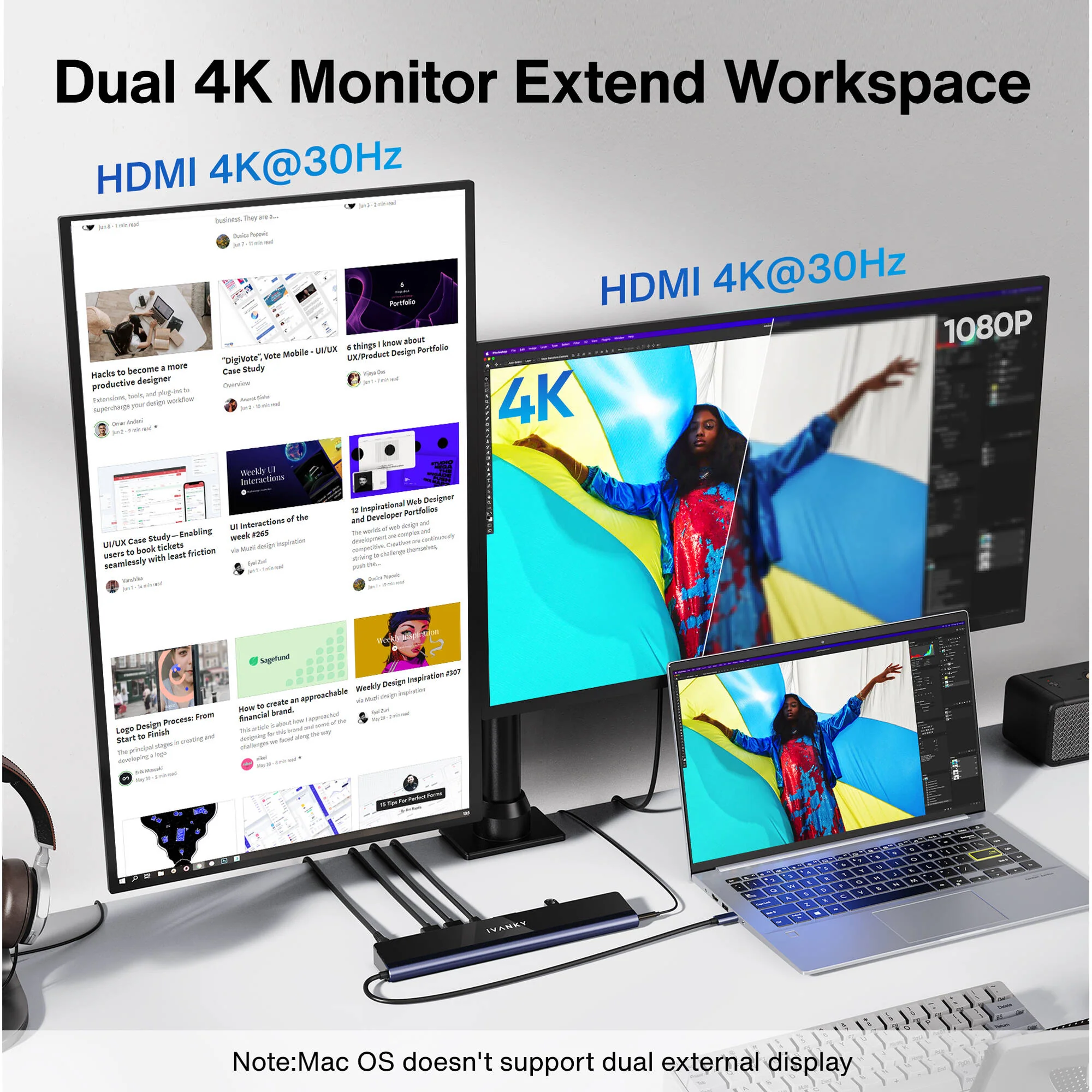

Two 5 Gb/s USB-A 3.2 Gen 1 ports are available for high-speed storage devices while the dual USB-A 2.0 ports may be reserved for keyboards and mice. An additional USB-C charging port delivers up to 20W of power with compatible devices. With the included power adapter, your laptop and connected peripherals remain powered throughout the day. The two HDMI ports can boost your multitasking efficiency by allowing you to connect two 3840 x 2160 resolution, UHD 4K displays to your computer. There is also an SD card reader and a microSD card reader that can work simultaneously, each transferring up to 104 MB/s. Other features include a Gigabit Ethernet LAN port for wired networks and a 3.5mm headphone jack. The wedge-shaped design lets you use this docking station as a laptop stand to maximize airflow to your Windows or Mac computer.
Please note that a USB-C 3.2 Gen 1 port or faster, supporting DisplayPort in Alt Mode, is required to make full use of this docking station.
In the Box
- iVANKY 12-in-1 USB-C Docking Station
- 100W Power Adapter & Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
iVANKY VCC06Specs
| USB I/O |
2x USB-A 3.0 / 3.1/3.2 Gen 1
2x USB-A 2.0 1x USB-C (Charging Only) / Supports 20 W Power Delivery |
| Video I/O |
2x HDMI 2.0
|
| Max Resolution |
3 Displays Supported:
3840 x 2160 at 60 Hz (Single) 3840 x 2160 at 30 Hz (Dual) |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Network I/O |
1x RJ45 (10/100/1000 Mb/s)
|
| Host Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 96 W via Integrated Cable
|
| Video I/O |
2x HDMI 2.0
|
| Max Resolution |
3 Displays Supported:
3840 x 2160 at 60 Hz (Single) 3840 x 2160 at 30 Hz (Dual) |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Network I/O |
1x RJ45 (10/100/1000 Mb/s)
|
| Host Connection |
USB-C 3.0 / 3.1/3.2 Gen 1 Supporting USB Power Delivery up to 96 W via Integrated Cable
|
| Power Source |
Included AC Adapter 100 to 240 VAC, 50/60 Hz with Unspecified Barrel Diameter Connector
|
| Media Card Reader |
1x SDXC (UHS-I [104 MB/s])
1x microSDXC (UHS-I [104 MB/s]) |
| Wireless Charging |
No
|
| OS Compatibility |
macOS 10.12 or Later
Windows 8 or Later |
| Operating Conditions |
32 to 104°F / 0 to 40°C at 15 to 85% Humidity
|
| Enclosure Material |
Plastic, Aluminum
|
| Lock Slot |
No
|
| Certifications |
FCC, UL, RoHS
|
| Cable Length |
1.64' / 0.5 m
|
| Dimensions |
9.1 x 1.7 x 0.7" / 230 x 43.7 x 17.5 mm
|
| Package Weight |
2.015 lb
|
| Box Dimensions (LxWxH) |
13.2 x 5.1 x 3.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
