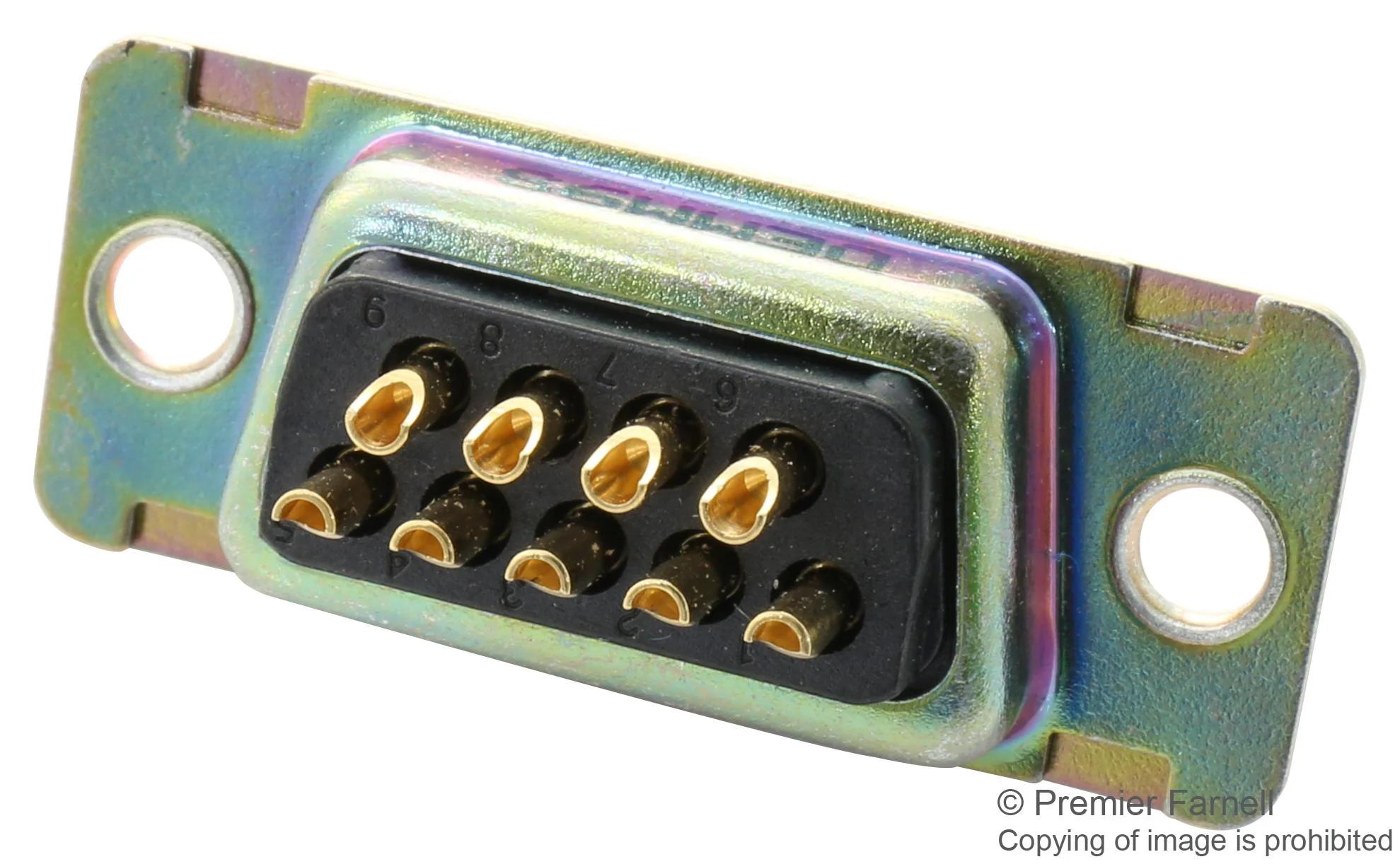

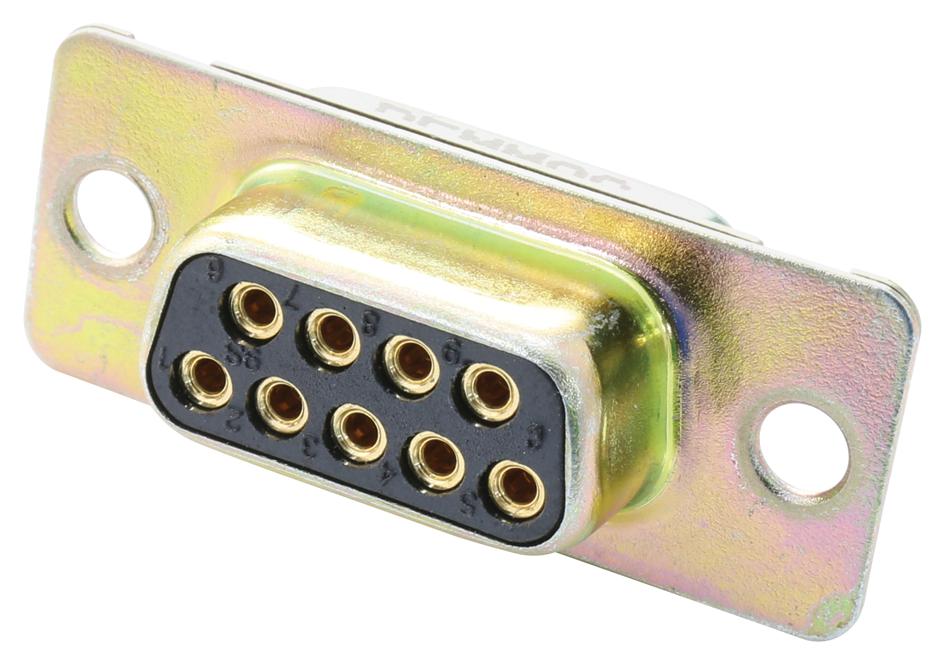

ITT Cannon DEMM9S D Sub Connector DB9 Standard Receptacle Demm Series 9 Contacts DE Solder

The DEMM9S is a 9-way Solder D-sub Receptacle with gold-plated copper alloy contacts, zinc-plated steel shell and a black thermoplastic insulator. The D*M-series connector accepts 28 to 20AWG wire range.

• 7.5A Current rating
• 1000VAC at Sea level dielectric withstanding voltage
• 500 Mating cycles
• -55 to +150°C Operating temperature range
• UL94V-0 Flammability rating

Applications

Industrial, Aerospace, Defence, Military

Other details

Brand	ITT CANNON
Part Number	DEMM9S
Quantity	Each
Technical Data Sheet EN
