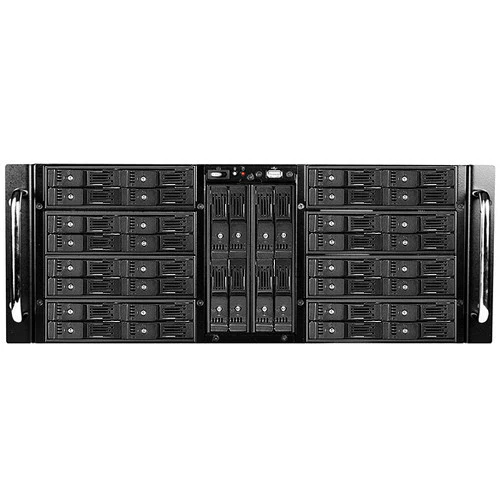

iStarUSA 4 RU 40-Bay Trayless 2.5" HDD Storage Server Rackmount Chassis
4U industrial rackmount chassis D-410-BN40SA combines with BPN 2.5" hdd trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 40 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-BN40SA provides server or cluster maximum reliability and performance.
- Key Features
-
- Supports up to 40x 2.5" hard drives
- Supports SATA 6.0Gb/s HDDs
- Front access USB2.0 with power and HDD LEDs
- 120mm x 2 cooling fans on sides
- Trayless hard drive enclosure design
- PS2 mini redundant PSU compatible
iStarUSA D-410 specs
| General | |
|---|---|
| Form Factor | Rack-mountable - 4U |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Specification Compliance | PS/2 |
| Hot-Swap Bays Qty | 40 |
| Server Swappable Drive Interface | SATA |
| Product Material | Steel |
| Color | Black |
| Cooling System | Side: 120 mm fan x 2 |
| System Cabinet Features | Carrying handle |
| Expansion / Connectivity | |
|---|---|
| Expansion Bays | 40 (total) / 40 (free) x hot-swap - 2.5" |
| Expansion Slots | 7 x full-length, full-height |
| Interfaces | 1 x USB 2.0 |
| Miscellaneous | |
|---|---|
| Compliant Standards | RoHS |
| Power | |
|---|---|
| Power Device | No power supply |
| Power Redundancy | Optional |
| Dimensions & Weight | |
|---|---|
| Width | 19 in |
| Depth | 25 in |
| Height | 7 in |
