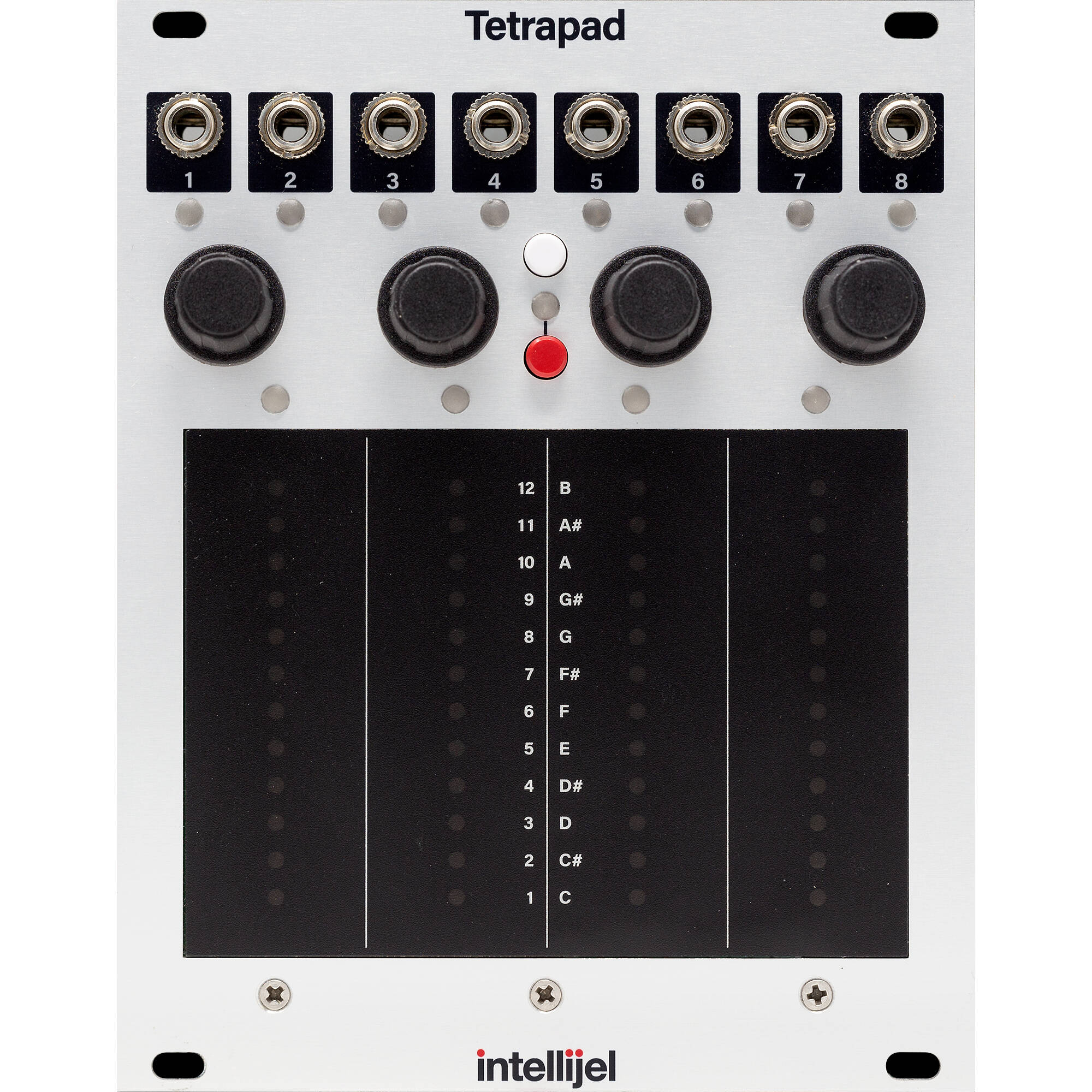

intellijel Tetrapad Multidimensional Performance Touch Controller Eurorack Module (20 HP)
intellijel TETRAPAD-3U Overview
Control your modular like never before with the intellijel Tetrapad, a multidimensional performance touch controller that allows you to press and slide your fingers along the four pads to turn your movements into CV signals. The Tetrapad is designed to work with the optional Tête module, which adds looping/sequencing, CV control, and presets.
Each of its four pads use force-sensing resistors to respond to both the vertical position of your finger and its pressure. Four push encoders and a shift function give you even more tactile control over your modular system. Use it as a keyboard, drum pads, a fader bank, LFOs, and voltage memory. You can even smooth out the rough edges with the built-in slew. The module ships with a ribbon power cable.
Overview
Tetrapad is a versatile multidimensional touch-sensitive control surface for Eurorack. Each of its four pads use force-sensing resistors to respond to both the vertical position of your finger and its pressure. Four push encoders and a shift function give you even more tactile control over your modular system.
- Four pressure- and position-sensitive pads, each with a corresponding pressable encoder and LED.
- Eight flexible outputs and LED indicators send Pitch, Gate, or other CV signals depending on the selected mode.
- The pads can be set to function as a keyboard, a chord generator, a bank of faders, an LFO control, drum pads, switches, or can trigger a specific voltage.
- Personalize pressure response and automatically save all settings for future use.
Modes
- Tetrapad operates in numerous modes�each configures the module to perform a specific control task. Through these modes, Tetrapad becomes an 8-key keyboard, a voltage storage device, or a 4-note chord generator. In its special Combo Mode, each pad can be assigned a function independent of the other three pads, such as: a fader, a bipolar fader, an LFO, a dual switch, or a finger drumming pad. The chosen mode determines what type of signal (CV, note, trigger, gate, etc.) is sent from each of the Tetrapad�s eight independent outputs, while its multitude of multicolored LEDs keep you informed of exactly what�s happening within each mode.
- Each mode contains 12 memory slots for that mode, allowing you to instantly recall one of 12 different custom keyboards; one of 12 different voltage maps; one of 12 fader/LFO/switch combinations; etc.
- Tetrapad automatically remembers how you�ve configured each of its modes and retains these settings when powered off. By default, Tetrapad automatically saves these settings every minute, or whenever you change modes. This makes Tetrapad ideal for live performance since you know it will always power up with your configurations intact.
Optional Tête Expansion Module
Available separately, the Tête expands the Tetrapad touch surface. Capture your gestures, save them, play them back with the Tête's looper or step sequencer. Modulate your physical input with external CV from your modular, and sync all of your motions with the internal or an external clock.
Eurorack Ready
- 20 HP Eurorack format module
- Maximum depth: 0.7" (19mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 130mA, -12V: 15mA
In the Box
- intellijel Tetrapad Multidimensional Performance Touch Controller Eurorack Module (20 HP)
- Ribbon Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
intellijel TETRAPAD-3USpecs
Key Specs
| Sound Generation |
Analog/Digital Hybrid
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS CV/Gate/Trigger Output
|
| Patch Points |
8x 1/8" / 3.5 mm TS Output
|
| Eurorack Current Consumption |
130 mA on +12 V Rail
15 mA on -12 V Rail |
| Horizontal Pitch |
20 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog/Digital Hybrid
|
| Expression Controls |
4x Pad
|
| Number of Pads |
4x Velocity-/Pressure-Sensitive Pad (with LED Indicators)
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm TS CV/Gate/Trigger Output
|
| Patch Points |
8x 1/8" / 3.5 mm TS Output
|
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
130 mA on +12 V Rail
15 mA on -12 V Rail |
Physical
| Horizontal Pitch |
20 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.58 lb
|
| Box Dimensions (LxWxH) |
6.6 x 4.4 x 4.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
