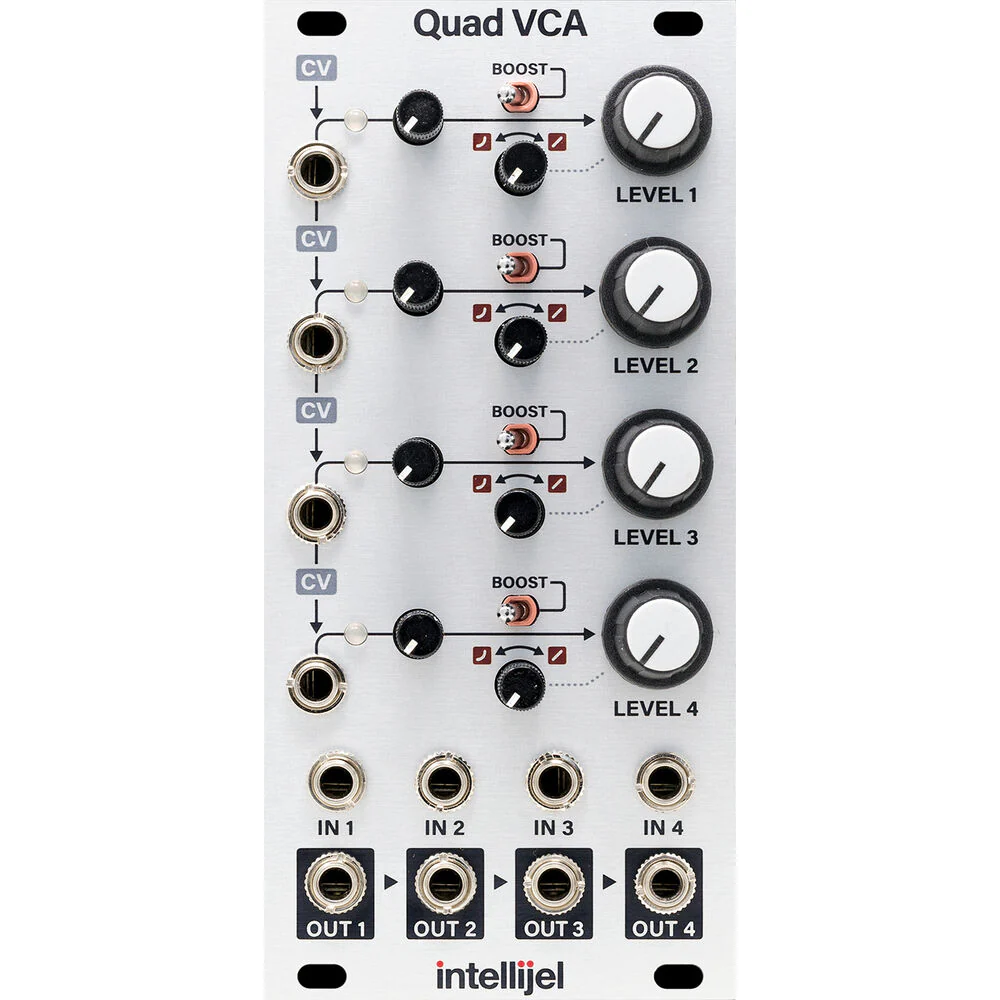

intellijel Quad VCA and Cascaded Mixer Eurorack Module (12 HP)
intellijel QUADVCA-3U Overview
Take control of your signals with the intellijel Quad VCA, a quad voltage-controlled amplifier and cascaded mixer in Eurorack format. Each of the four VCAs has independent level control, bipolar CV inputs with attenuators and LED indicators, adjustable linear/exponential response, and a +6 dB boost switch to double the channel output. Each channel's CV inputs and outputs are cascaded to the next, so you can create submixes. The module includes a power ribbon cable and a set of mounting screws.
At a Glance
- Manual LEVEL control per VCA, which is convenient when using the module as a mixer or for biasing CV when modulating the VCA with a bipolar LFO.
- Dedicated CV attenuators with dual-color LEDs for monitoring bipolar CV signals.
- Continuously adjustable response from linear to exponential per VCA.
- Each CV input is normaled to the adjacent one for cascaded control.
- Each output is normaled to the mix input of the adjacent one which allows you to use adjacent sets as submixes or the fourth output can be used as a main mix output when none of the other outputs are patched.
- Each VCA has a boost switch that increases the output level by approximately 6 dB (double).
Eurorack Ready
- 12 HP Eurorack format module
- Maximum depth: 1.1" (29mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 65mA, -12V: 65mA
In the Box
- intellijel Quad VCA and Cascaded Mixer Eurorack Module (12 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Additional Resources
intellijel QUADVCA-3USpecs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input |
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
8x 1/8" / 3.5 mm TS Input
4x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
65 mA on +12 V Rail
65 mA on -12 V Rail |
| Horizontal Pitch |
12 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
4x VCA
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
4x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input |
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
8x 1/8" / 3.5 mm TS Input
4x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
65 mA on +12 V Rail
65 mA on -12 V Rail |
Physical
| Horizontal Pitch |
12 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.42 lb
|
| Box Dimensions (LxWxH) |
6 x 3.3 x 3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
