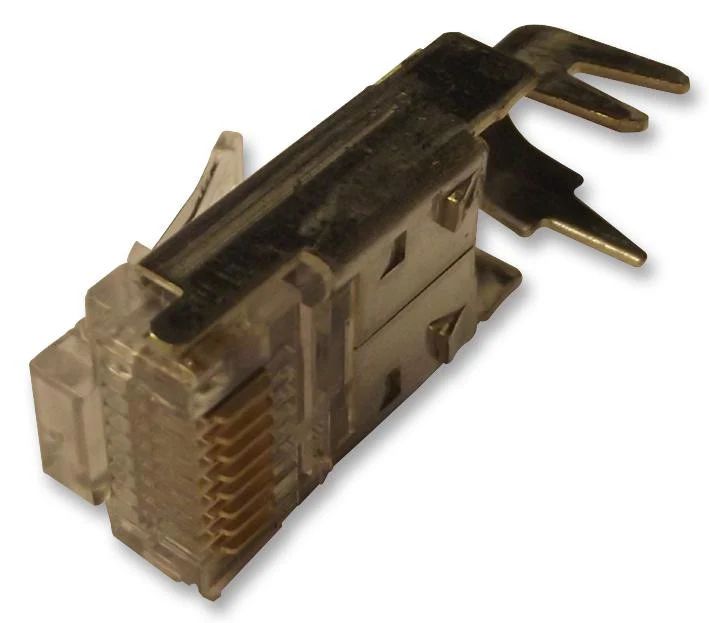

HIROSE(HRS) TM21P-88P(21) Modular Connector, Cat5e, RJ45, TM21P Series, Plug, 8 Contacts, 8 Ways, 1 Ports
HIROSE(HRS) TM21P-88P(21) Modular Connector, Cat5e, RJ45, TM21P Series, Plug, 8 Contacts, 8 Ways, 1 Ports
The TM21P-88P(21) is a 8-position male CAT5e RJ45 Modular Plug with piercing wire termination method. Conforms to requirements of TIA/EIA-568B data wiring standard, meeting transmission performance of Enhanced Category 5. Supports Gigabit Ethernet (1000BASE-T) and Fast Ethernet (100BASE-TX) high-speed LAN transmission. 360° coverage of the engagement area with a metal shield assures protection against electromagnetic interference. When mated with corresponding connector the shield surfaces are securely connected to provide continuous circuit. Flexible case extends over the release tab preventing the possibility of breaking-off during handling of the complete cable assembly. Self located 24AWG conductors (solid or stranded) are terminated against pre-inserted contacts using simple tooling.
- Supports high-speed LAN transmission
- EMI protection
- Protected latch tab
- Termination of conductors
- Simplified termination
- Conforms to the ISO 8877 standard (ISDN interface connector)
- 1Gbps Transmission rate
Applications
Industrial
Product details
| No. of Positions | 8Ways |
| Contact Material | Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | RJ45 |
| Contact Termination Type | IDC / IDT |
| LAN Category | Cat5e |
| No. of Contacts | 8Contacts |
| Product Range | TM21P Series |
| No. of Ports | 1Ports |
| Gender | Plug |
Other details
| Brand | HIROSE(HRS) |
| Part Number | TM21P-88P(21) |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
