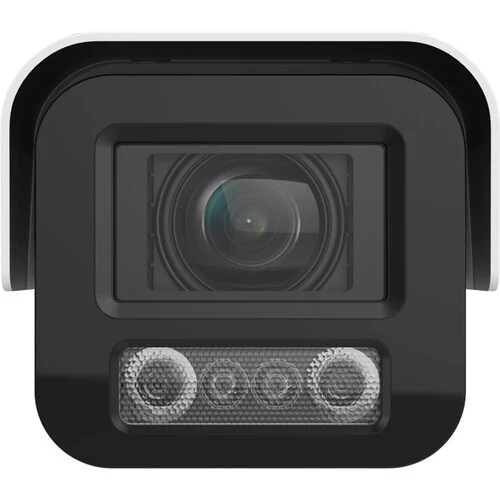

Hikvision ColorVu DeepinView iDS-2CD7A87G0-XZHSY 8MP Outdoor Network Bullet Camera with Heater
Hikvision ColorVu DeepinView iDS-2CD7A87G0-XZHSY 8MP Outdoor Network Bullet Camera with Heater
Hikvision IDS-2CD7A87G0-XZHSY Overview
Monitor an indoor or outdoor area with the ColorVu DeepinView iDS-2CD7A87G0-XZHSY 8MP Network Bullet Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 4K UHD resolution video at 30 fps. Supplemental IR and white light provide up to 164' of illumination for recording full color video in low-light conditions. The camera's 2.8-12mm varifocal lens delivers a 99.8 to 44.1° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated aluminum enclosure for outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -40°F.
Deep Learning Functions
Multitarget detection supports simultaneous detection (60 targets) and capture of the human body, face, and vehicles (7 face features, 13 human body features, and 2 vehicle features)
Face capture detects up to 120 faces simultaneously, supports left and right swings from -60 to 60°, tilt up and down from -30 to 30°, and uploads face with background and close up face images
Face comparison supports up to 10 face libraries (30,000 faces for each library), 150,000 faces in total, and face library encryption
Heat mapping and queue management with report generation for data collection and efficiency
General Features
Integrated heater with demister
ColorVu technology provides color recording in low-light conditions
IR cut filter for day and night functionality with blue glass module to minimize ghosting
Scalable Video Coding (SVC) for H.265/H.264 encoding
CBR and VBR
Analytics include: motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal reboot, line crossing detection, intrusion detection, region entrance detection, region exiting detection (human and vehicle target alarm triggers), scene change detection, audio exception detection, and defocus detection
Up to 8 programmable polygon privacy masks
Region of interest supports four fixed regions for each stream
3-axis angle adjustments
Additional features include: target cropping, image parameters switch, 140 dB wide dynamic range, backlight compensation, highlight compensation, defog, 3D-DNR, electronic image stabilization, picture overlay, environment noise filtering, and reset key
General functions include: heartbeat, anti-banding, one-key reset, mirror, password protection, privacy mask, watermark, IP address filter, flash log, and control timeout
Up to 32 users with three host levels (admin, operator, and user)
Up to 20 channels in simultaneous live view
Supported browsers include: Internet Explorer 10 & 11 (plug-in required), Chrome 57 or higher, and Firefox 52 or higher
PVC free
UPC: 842571147667
In the Box
- Hikvision ColorVu DeepinView iDS-2CD7A87G0-XZHSY 8MP Outdoor Network Bullet Camera with Heater
- Limited 3-Year Manufacturer Warranty
Hikvision IDS-2CD7A87G0-XZHSY Specs
Camera
| Sensor | 8 MP 1/1.8" CMOS |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1 to 1.2 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 99.8 to 44.1° Vertical: 54.6 to 24.8° Diagonal: 113.8 to 51.1° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux B&W: 0.0001 Lux |
| Shutter Speed | 1/100,000 to 1 Seconds |
| DORI Coverage | With 2.8 to 12mm Lens: Detect: 301.8 up to 669.3' / 92.0 up to 204.0 m Observe: 119.8 up to 265.7' / 36.5 up to 81.0 m Recognize: 60.4 up to 131.2' / 18.4 up to 40.0 m Identify: 30.2 up to 67' / 9.2 up to 20.4 m |
Video
| Streaming Resolution | 3840 x 2160 at 30 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 5 Streams |
| Automatic Gain Control | Yes |
| Video Outputs | 1 x BNC (Composite) |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Audio I/O | Input: 1 x 1/8" / 3.5 mm Output: 1 x 1/8" / 3.5 mm |
Pan & Tilt
| Pan/Tilt | None |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK, ISUP |
| Analytics | Motion Detection, Video Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error, Abnormal Reboot, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Scene Change Detection, Audio Exception Detection, Defocus Detection, Multitarget Detection, Face Capture, Face Comparison, Heat Map, Queue Management |
| OS Compatibility | Android iOS *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
Hardware
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | AC, DC, PoE 802.3at (30 W) |
| Power Consumption | DC: 22.7 W (With Heater) AC: 22.3 W (With Heater) PoE+: 24.7 W (With Heater) |
Environmental
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | -40 to 140°F / -40 to 60°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 95% (Non-Condensing) |
| IP Rating | IP67 |
| IK Rating | IK10 |
General
| Inputs/Outputs | 1 x RJ45 1 x BNC 1 x Power 1 x Block 3-Pin 1 x Serial 9-Pin (RS-485) |
| Illumination | 850 nm IR LEDs up to 164' / 50 m White LEDs up to 164' / 50 m |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Material of Construction | Aluminum |
| Dimensions | ø: 5.5 x L: 14.9" / ø: 140.0 x L: 378.4 mm |
| Weight | 5 lb / 2280 g |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
