Hellermanntyton 184-10138 Trunking Single 60 mm (H) x 25 (W) 2 m (L) Grey PVC Narrow Slot Series

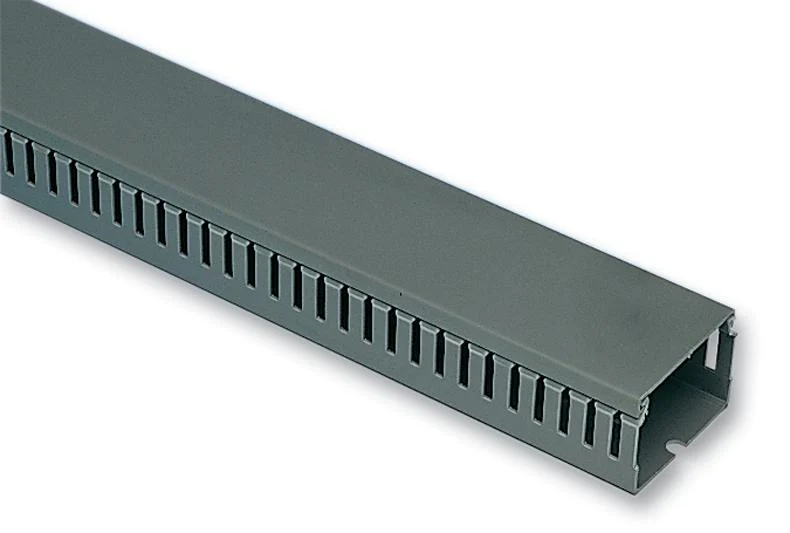

The 184-10138 is a 25 x 60mm grey Wiring Duct/Cable Trunking with Cover made of rigid PVC (polyvinylchloride). Narrow slot design is suitable for small-diameter wires and cables used in electric and electronic cabinets."Fingers" can be removed with no sharp edges at pre-notched snap-off points. Smooth, burr-free edges protect installers from injury and wires from damage.

• Duct cover is easy to mount and remove, yet holds secure
• Base perforation according to DIN EN 50085
• Screw mounting
• -5 to 65°C Operating temperature range
• UL94V-0 Flammability rating

Applications

Industrial, Consumer Electronics, Automation & Process Control, Safety

Other details

Brand	HELLERMANNTYTON
Part Number	184-10138
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
Miscellaneous EN
Drawing EN
