Harrison Audio D510mx 10x2 Analog Summing Mixer for D510r 500-Series Rack
Harrison Audio D510mx Overview

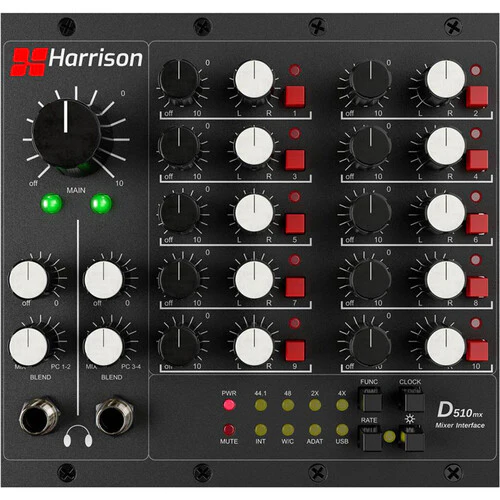

The Harrison D510mx module transforms your D510r 500 Series rack into a fully integrated 10x2 analog summing mixer, delivering the renowned weight, clarity, and ?3D? depth that Harrison summing is famous for. Designed to occupy two slots within the D510r, the D510mx allows you to blend signals from the eight remaining 500 Series module slots along with two dedicated external analog inputs.
When paired with the optional D510dante interface (available separately), the D510mx expands even further: headphone mixes can be sourced either from the direct analog path or from any device on a Dante network, offering tremendous flexibility for studio and live environments.

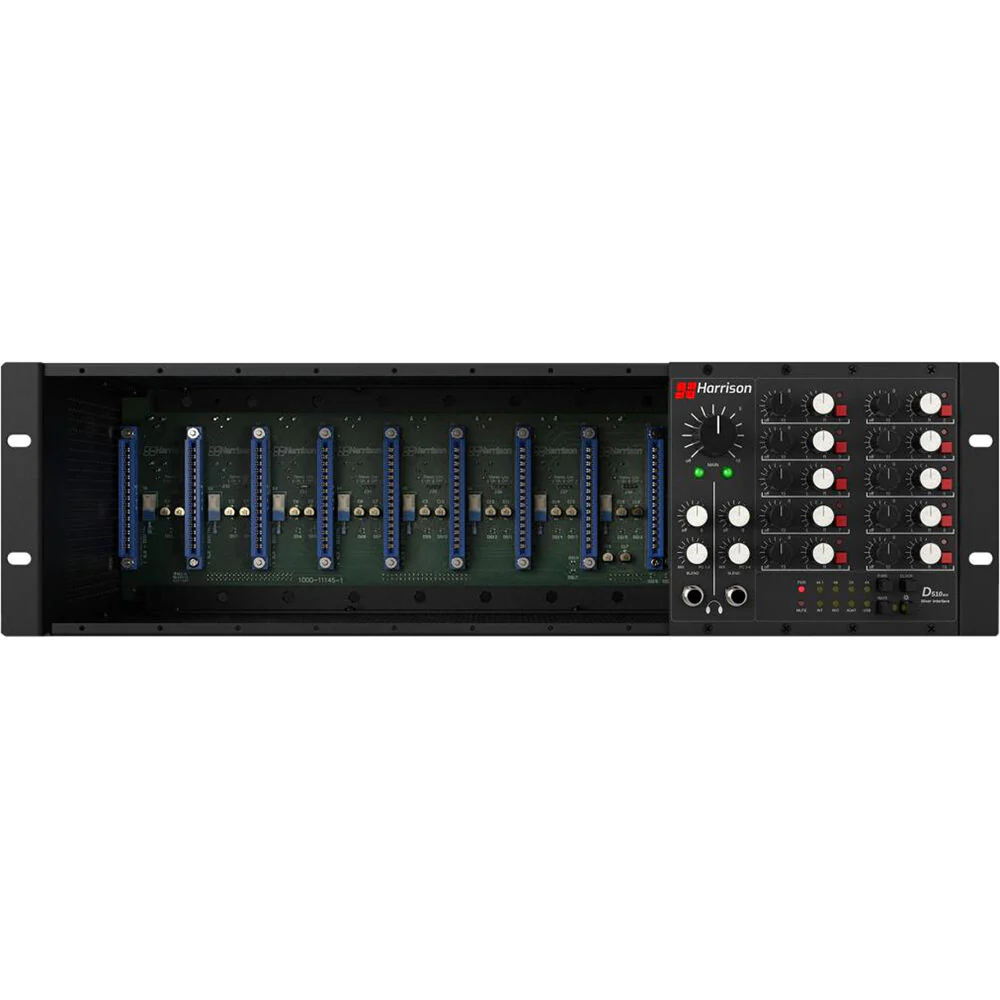

Compact yet powerful, the D510r rack combined with the D510mx module creates a flexible eight-channel tracking and summing system?all housed within a streamlined 3U footprint.
- 10x2 analog summing mixer for Harrison D510r
- Dedicated level and pan controls per channel
- Dual independent headphone outputs with blend
- Supports direct analog and Dante sources (with optional D510dante)
- Renowned Harrison analog summing sound
- Tri-color LED signal presence metering
- Compact 3U design for maximum portability
Items Included
- Harrison Audio D510mx 10x2 Analog Summing Mixer for D510r 500-Series Rack
- Limited 1-Year Manufacturer Warranty
Additional Resources
Harrison Audio D510mx Specs
| Inputs |
Minimum Gain: <= -81 dB
Noise A-Weighted at Min Gain: < -87 dBu Unity 0 dB THD+N, 1 kHz 10 dBu at Mid Gain: < 0.003% Maximum Gain: 11.5 dB THD+N, 1 kHz 0 dBu at Max Gain: < 0.003% Noise A-Weighted at Maximum Gain: < -85 dBu Maximum Input Level: +24 dBu |
| Frequency Response |
20 Hz to 20 kHz ?0.25 dB
|
| Panning Range |
- 3 dB Pan Law
|
| Main Outputs |
Maximum Output Level: +24 dBu
Minimum Gain: <= -85 dB Noise A-Weighted at Min Gain: < -97 dBu Unity 0 dB THD+N, 1 kHz 10 dBu at Mid Gain: < 0.003% Noise A-Weighted at No Gain: < -87 dBu Maximum Gain: 9.5 dB THD+N, 1 kHz 10 dBu at Max Gain: < 0.003% Noise A-Weighted at Maximum Gain: < -78 dBu |
| Headphone Outputs |
Maximum Output Level - +21 dBu
Minimum Gain: <= -78 dB Noise A-Weighted @ Min Gain: < -87 dBu Maximum Gain: 0 dB THD+N, 1 kHz 20 dBu @ Max Gain: < 0.004% Noise A-Weighted @ Maximum Gain: < -82 dBu |
| Metering |
3x Tri-Color LED Signal Presence
Green: >= -14 dBu, + 4 dBu Orange: >= +4 dBu, +18 dBu Red: >= + 18 dBu |
| Connectors |
2 x 1/4" TRS Stereo
|
| Package Weight |
1.46 lb
|
| Box Dimensions (LxWxH) |
6.9 x 6.1 x 2.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
