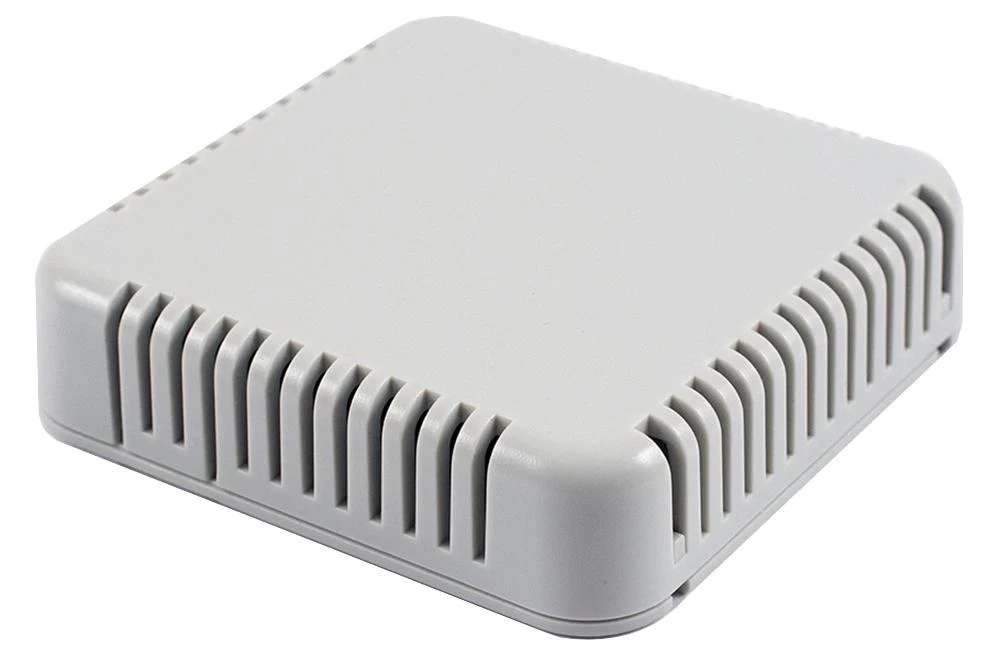

Hammond 1551V4GY Plastic Enclosure Small ABS 80 mm 20 IP30
A general purpose ABS miniature vented enclosure that protects electronics from harmful contact with hands or tools, but allows entry of air and moisture for applications which require environmental exposure. Ideally suited for mounting of printed circuit boards.
- Slots on the base of the enclosure allow for easy wall-mounting.
- Knockout on the base can be removed with a screwdriver and used for wire entry.
- Molded in ABS plastic (material has a UL94-HB rating).
- Satin texture finish.
- Enclosure features a snap-fit assembly and can be reopened repeatedly as needed. No hardware required.
- 4 PC board standoffs molded into interior
- To secure PC board use self tapping #2 x 3/16" screws (not included)
- Enclosure base features: Assembly hooks, wall-mounting slots, snap-fit closures, wire entry knockout, PC board standoffs
- Flammability rating: UL94-HB
- IP Rating: IP30
- Weight: 39g
Product details
| Enclosure Type | Small |
| Enclosure Material | ABS |
| External Height - Metric | 80mm |
| External Width - Metric | 80mm |
| External Depth - Metric | 20mm |
| IP Rating | IP30 |
| Body Colour | Grey |
| NEMA Rating | - |
| External Height - Imperial | 3.15" |
| External Width - Imperial | 3.15" |
| External Depth - Imperial | 0.79" |
| Product Range | 1551V Series |
Other details
| Brand | HAMMOND |
| Part Number | 1551V4GY |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.49
Original: $4.98
-70%Hammond 1551V4GY Plastic Enclosure Small ABS 80 mm 20 IP30—
$4.98
$1.49Hammond 1551V4GY Plastic Enclosure Small ABS 80 mm 20 IP30
A general purpose ABS miniature vented enclosure that protects electronics from harmful contact with hands or tools, but allows entry of air and moisture for applications which require environmental exposure. Ideally suited for mounting of printed circuit boards.
- Slots on the base of the enclosure allow for easy wall-mounting.
- Knockout on the base can be removed with a screwdriver and used for wire entry.
- Molded in ABS plastic (material has a UL94-HB rating).
- Satin texture finish.
- Enclosure features a snap-fit assembly and can be reopened repeatedly as needed. No hardware required.
- 4 PC board standoffs molded into interior
- To secure PC board use self tapping #2 x 3/16" screws (not included)
- Enclosure base features: Assembly hooks, wall-mounting slots, snap-fit closures, wire entry knockout, PC board standoffs
- Flammability rating: UL94-HB
- IP Rating: IP30
- Weight: 39g
Product details
| Enclosure Type | Small |
| Enclosure Material | ABS |
| External Height - Metric | 80mm |
| External Width - Metric | 80mm |
| External Depth - Metric | 20mm |
| IP Rating | IP30 |
| Body Colour | Grey |
| NEMA Rating | - |
| External Height - Imperial | 3.15" |
| External Width - Imperial | 3.15" |
| External Depth - Imperial | 0.79" |
| Product Range | 1551V Series |
Other details
| Brand | HAMMOND |
| Part Number | 1551V4GY |
| Quantity | Each |
| Technical Data Sheet EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
